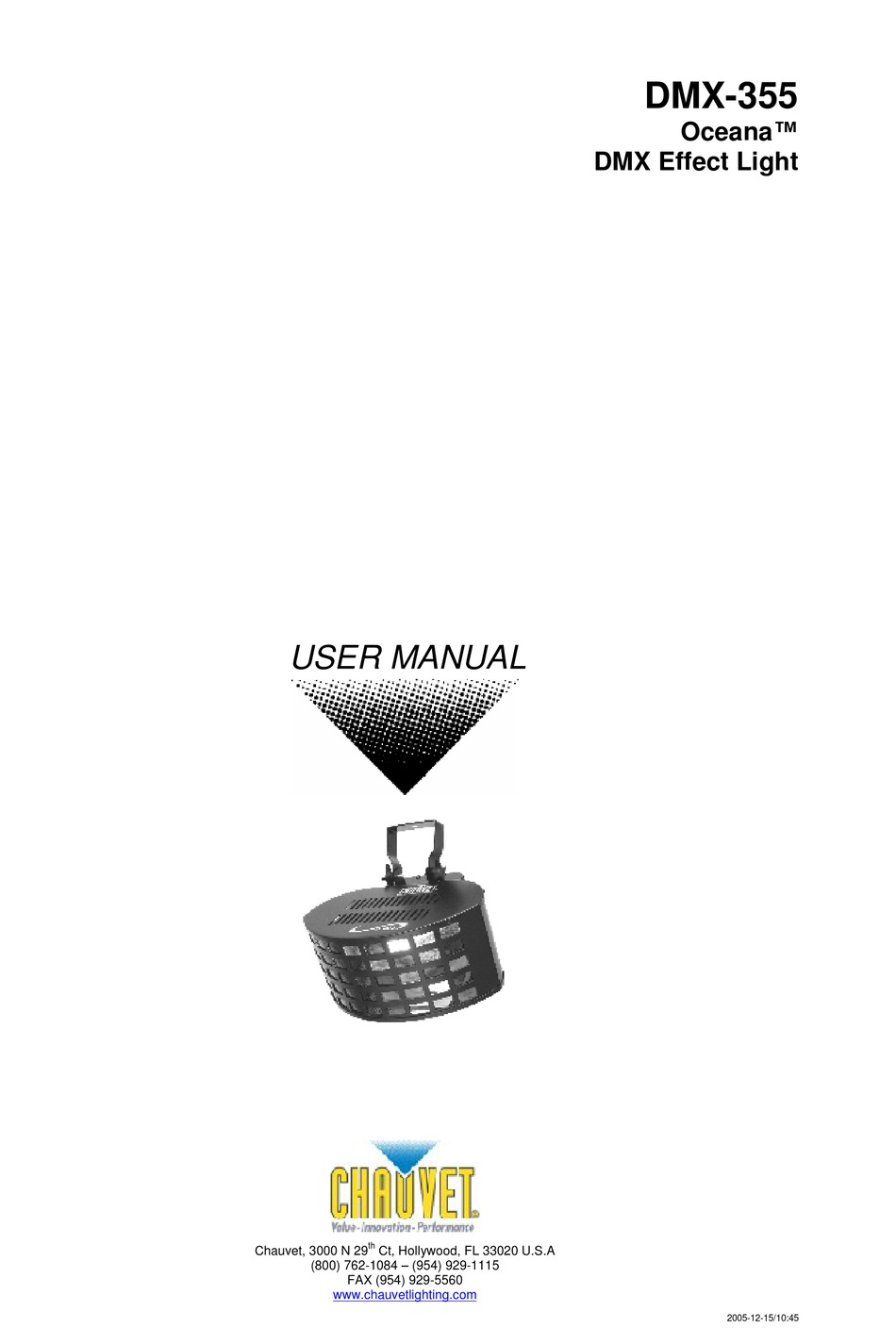

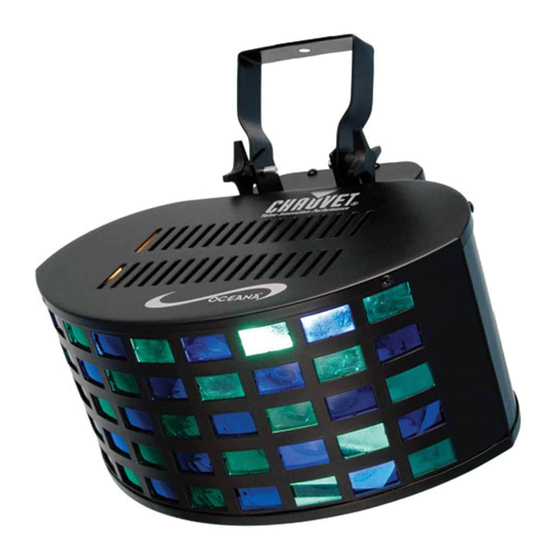

- Page 1 DMX-355 Oceana™ DMX Effect Light USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-12-15/10:45...
-
Page 2: Table Of Contents
Setting the starting address ... 9 APPENDIX... 10 DMX P ... 10 RIMER Fixture Linking... 10 DMX C ... 11 HANNEL ALUES ... 11 AINTENANCE ... 12 ETURNS ROCEDURE ... 12 LAIMS ... 13 ENERAL ROUBLESHOOTING ... 14 ECHNICAL PECIFICATIONS DMX-355 User Manual 2005-12-15/10:45... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Oceana™ (DMX-355) Power cord with plug 800w S120V800W or S230V800W lamp Warranty Card & Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
Built-in sound-activated programs Automatically enters stand-alone when no DMX signal is present Linkable via Master/Slave Fan cooled Optional programmable controller: Any universal DMX-512 controller DMX Channel Summary HANNEL UNCTION Gobo/Color Strobe DMX-355 User Manual 2005-12-15/10:45... -
Page 5: Product Overview
Product Overview DMX Input Connector DMX-355 User Manual Hanging Bracket Lamp access DMX Address Dipswitches DMX Output Connector Sound sensitivity knob AC Voltage Switch Wired remote controller IEC power connector Built in & fuse compartment Microphone Fan ventilation Safety Hook... -
Page 6: Setup
To replace lamp, follow the same procedure as above to insert lamp into the socket. Replace top cover. DMX-355 User Manual DMX-355 Lamp Installation Screws also located on opposite side. Remove top cover screws to expose lamp. -
Page 7: Mounting
Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power. DMX-355 User Manual always replace with the same type fuse. The fuse is located inside this compartment. -
Page 8: Operating Instructions
The Stand Alone mode is activated automatically when the fixture is absent of DMX signal or a controller is not connected. The DMX-355 will run through its built in programs as it listens to the sound. The optional CH-X wired controller also provides a blackout function. -
Page 9: Setting The Starting Address
Resolving address using simple math. Address 233 DMX-355 User Manual 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 – (32) = 9, Turn ON Dip # 6 9 –... -
Page 10: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 11: Dmx Channel Values
Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. DMX-355 User Manual Value Function Rotation 000 ... -
Page 12: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 13: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when rotating... -
Page 14: Technical Specifications
Data input ... locking 3-pin XLR male socket Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols...DMX-512 USITT DMX Channels ...2 ORDERING INFORMATION Oceana™...DMX-355 Blackout Controller... CH-X DMX-355 User Manual Appendix 2005-12-15/10:45...
