Installation and Licensing of ISE Design Suite 12.1

Suite 12.1 tools on your computer. The
Suite 12.1
Installation and Licensing of ISE Design Suite 12.1
This SP605 Embedded Kit comes with entitlement to a full seat of the ISE Design Suite:
Embedded Edition that is device locked to a Spartan-6 LX45T. This software can be
installed from the DVD or the Web installer can be downloaded from
http://www.xilinx.com/support/download/index.htm.

ISE 12.1 Software Installation

1.
Note:
Embedded Edition, and accept the default install location.
X-Ref Target - Figure 8
18
section of this document will guide you through these steps.
Run the ISE Design Suite 12.1 Installer:
a. Option 1: Insert the ISE Design Suite 12.1 DVD included in this kit into your
computer
- If the Installer does not start automatically, run the "xsetup" executable from
the DVD
b. Option 2: Run the Web Installer that you can download from
http://www.xilinx.com/support/download/index.htm
You will be prompted with a Welcome dialog
(Figure 9 and Figure 10), a selection of which tool edition to install
installation options (Figure
install the software (Figure
It is recommended that you accept the two license agreements, install the ISE Design Suite:

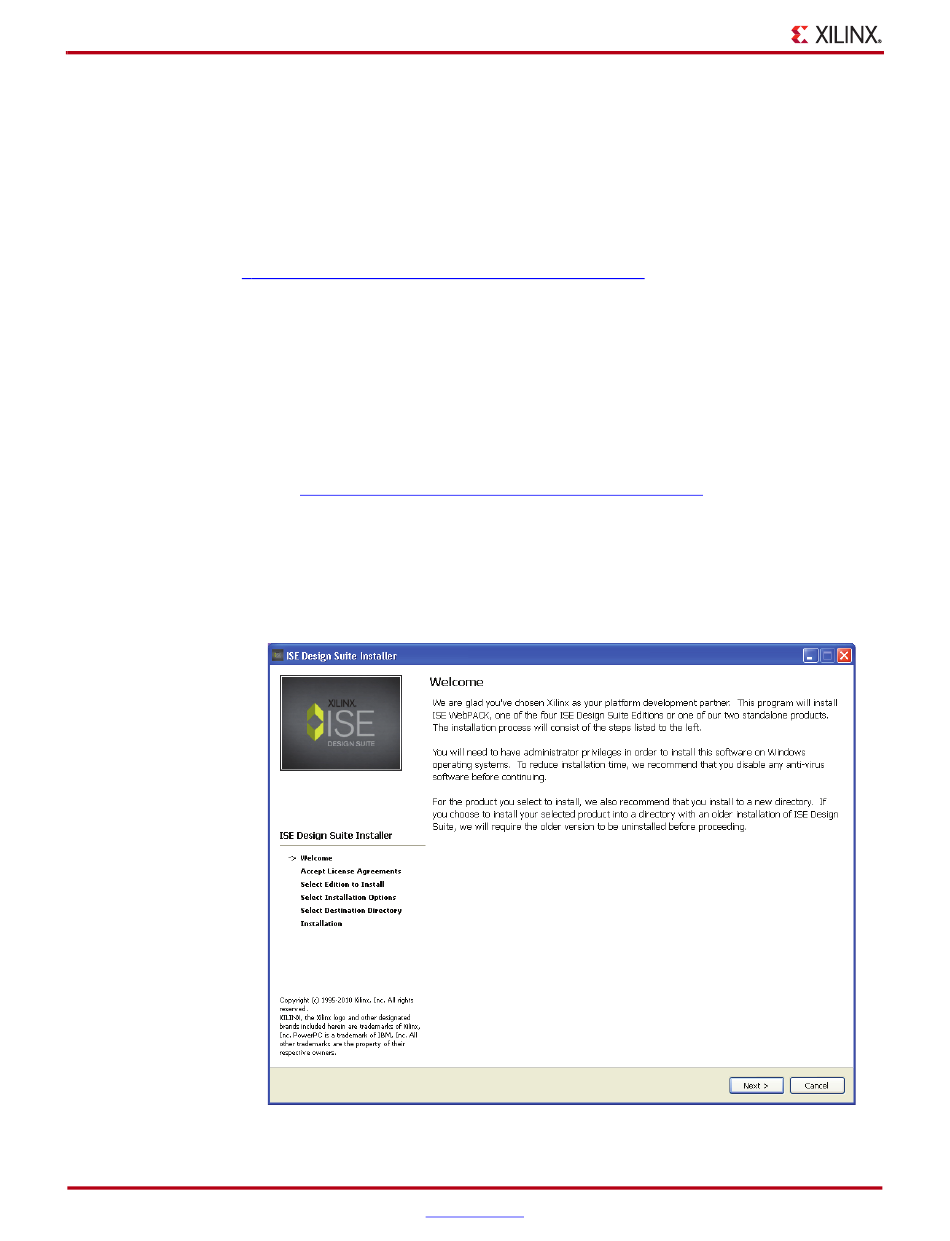

Figure 8: ISE Design Suite Install Welcome Screen
www.xilinx.com
Installation and Licensing of ISE Design
(Figure
12), and an opportunity to select where you would like to
13).
8), two License agreements
(Figure 11),
UG727_07_051110
SP605 Getting Started Guide
UG727 (v1.1) June 21, 2010
