11. You have now successfully installed your ISE software license. Click OK on the Success
X-Ref Target - Figure 22
Congratulations! You have now installed the ISE Design Suite 12.1 tools and set up the licenses for
the Embedded Edition of the tools. You are now ready to use Xilinx ISE Design
Suite 12.1 Embedded Edition to create or modify your custom Embedded Systems
using the MicroBlaze soft processor.
For detailed information on licensing & installation, please refer the following guide:
http://www.xilinx.com/support/documentation/sw_manuals/xilinx12/irn.pdf.

Communicating with the SP605 USB-UART

Installing the USB-UART driver

1.
2.

Connecting to the SP605 UART

3.
4.

Configuring the Host Computer

5.
SP605 Getting Started Guide
UG727 (v1.1) June 21, 2010
Dialog (Figure 22) and close the Xilinx License Configuration Manager.

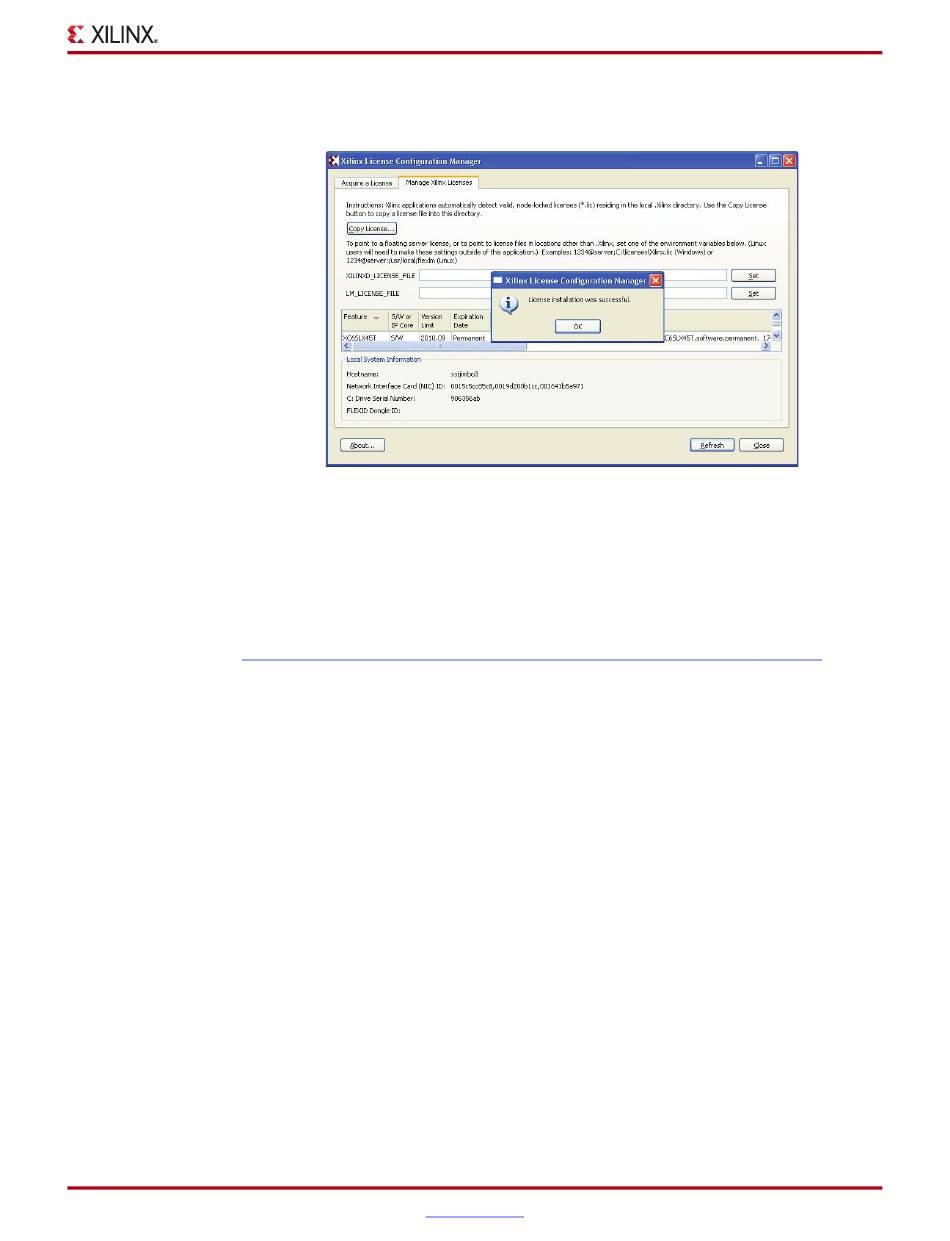

Figure 22: License Installation Successful
Execute the installer for the Silicon Labs USB-UART Virtual COM Port (VCP) driver
from the Drivers_and_Tools folder on the USB drive shipped with your SP605
Embedded Kit.
Drivers_and_Tools\CP210x_VCP_Win2K_XP_S2K3.exe
Follow the installer instructions. Restart your computer when instructed to do so.
Connect a USB Type-A to Mini-B 5-pin cable between the SP605 USB-UART connector
(J23) and the host computer.
Power on the SP605 Evaluation Board if it is not already powered on.
Right-click on My Computer and select Properties. Select the Hardware tab. Click on
Device Manager.
