Next Steps

X-Ref Target - Figure 26
Congratulations! You have now installed the Silicon Labs USB-UART Virtual COM Port (VCP)
driver!
Next Steps
Now that you have run through a FPGA-based Embedded Processor demo and installed
the ISE Design Suite Embedded Edition, you are ready to create custom embedded
systems for the Spartan-6 LX45T FPGA.
The following section provides pointers to various tutorials and reference designs that will
help you become familiar with the Embedded Hardware and Software tools needed to
customize MicroBlaze designs.
All material below can be found in the USB Stick provided with this Embedded Kit or
under the Reference Designs section from the Spartan-6 Embedded Kit home page:
http://www.xilinx.com/s6embkit
Figure 27
SP605_Embedded_Kit folder on the USB stick included in the Embedded Kit or the zip
file from the Embedded Kit web page. It is recommended that you copy the contents of the
USB stick to a working area on your host computer.
30

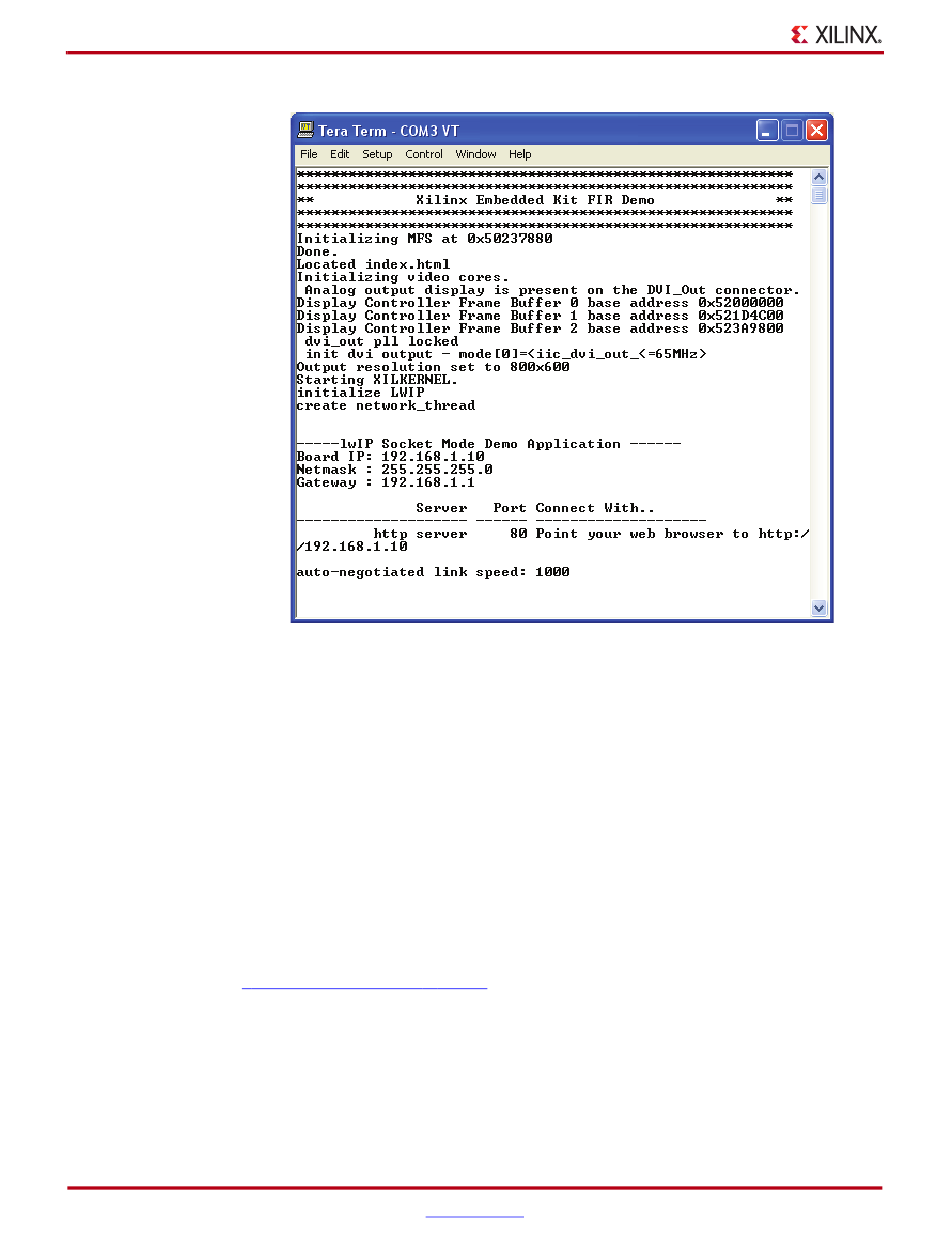

Figure 26: Serial Communication Window Output
is a snapshot of the directory structure you will find in the
Caution!
Ensure that there are no spaces in the path name of the working area on your host
computer.
www.xilinx.com
UG727_28_111309
SP605 Getting Started Guide
UG727 (v1.1) June 21, 2010
