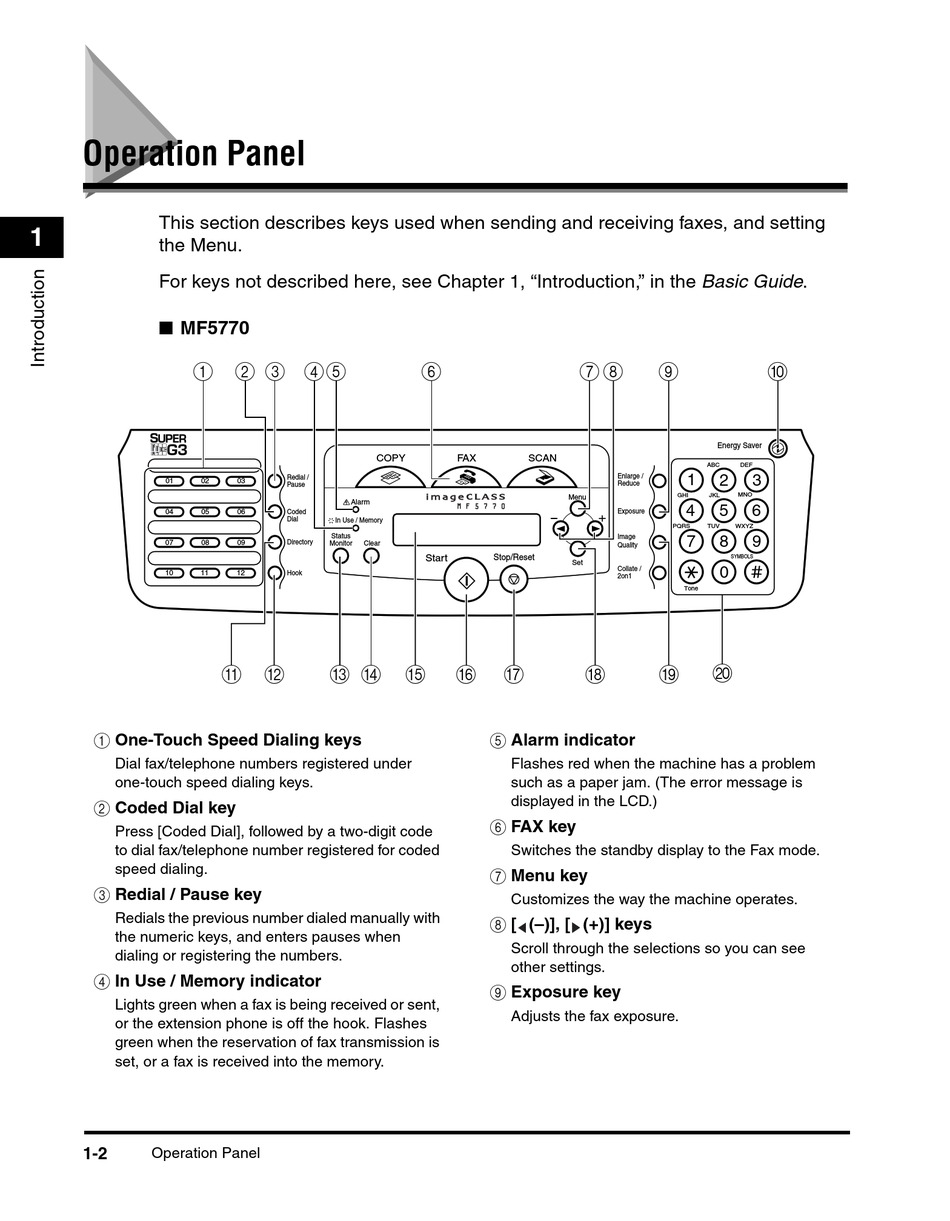

Operation Panel

This section describes keys used when sending and receiving faxes, and setting
1
the Menu.
For keys not described here, see Chapter 1, "Introduction," in the Basic Guide.
■ MF5770
a
01 02
04 05
07 08
10 11
a One-Touch Speed Dialing keys
Dial fax/telephone numbers registered under
one-touch speed dialing keys.
b Coded Dial key
Press [Coded Dial], followed by a two-digit code
to dial fax/telephone number registered for coded
speed dialing.
c Redial / Pause key
Redials the previous number dialed manually with
the numeric keys, and enters pauses when
dialing or registering the numbers.
d In Use / Memory indicator
Lights green when a fax is being received or sent,
or the extension phone is off the hook. Flashes
green when the reservation of fax transmission is
set, or a fax is received into the memory.
1-2
Operation Panel
b c de
COPY
Redial /
03
Pause
Alarm
06 Coded
Dial
In Use / Memory
Status
09 Directory
Monitor Clear
12 Hook
k l m n
f g h
FAX SCAN
Menu
Stop/Reset
Start
Set
o p q r
e Alarm indicator
Flashes red when the machine has a problem
such as a paper jam. (The error message is
displayed in the LCD.)
f FAX key
Switches the standby display to the Fax mode.
g Menu key
Customizes the way the machine operates.
h [ (–)], [ (+)] keys
Scroll through the selections so you can see
other settings.
i Exposure key
Adjusts the fax exposure.
