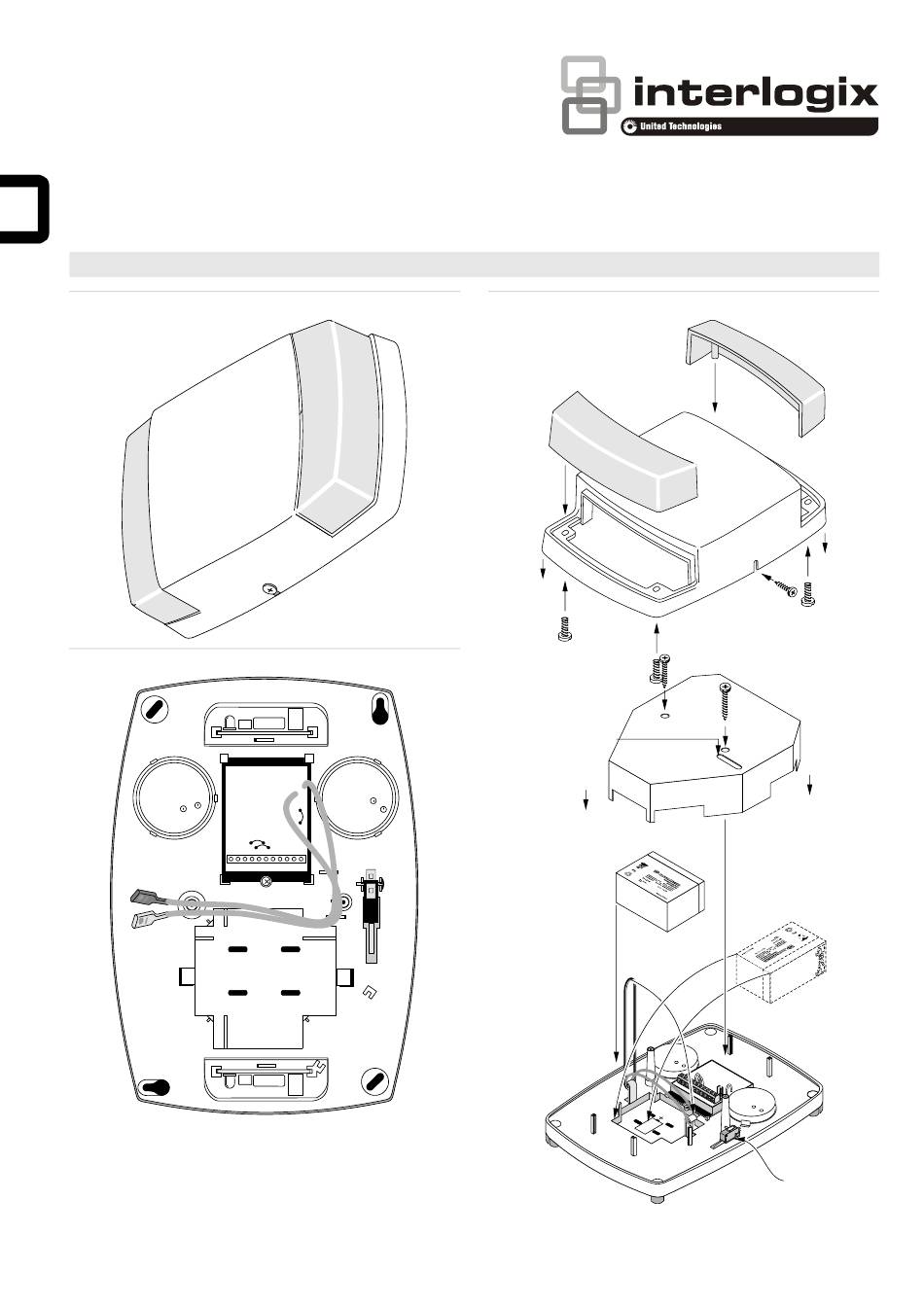

AS520 Series Outdoor Siren Installation Sheet
EN DE ES FR
IT
NL PT
1
2
3
Tamper hole
J10
AB570
(Optional)
J8
J9
BS121N
BS121N
Tamper
© 2019 UTC Fire & Security Americas Corporation, Inc.
P/N 144200999-2 (ML) • REV D • ISS 29MAR19
1 / 10
