001
WELLS BLOOMFIELD, LLC
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
telephone: 775-689-5703
fax: 775-689-5976
www.wellsbloomfield.com

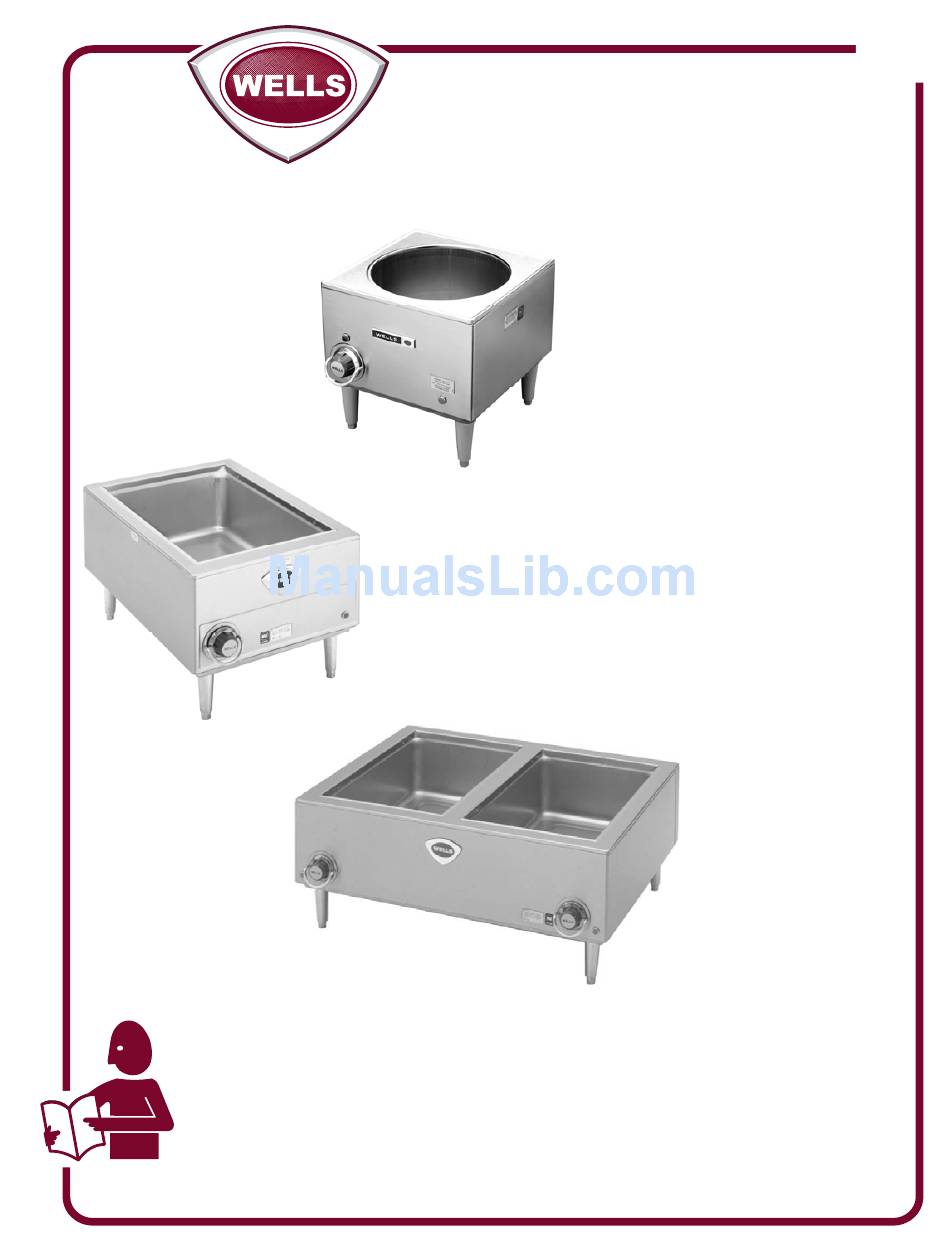

OPERATION MANUAL
WELLS
COUNTERTOP
WARMERS
Model SW-10T
with
THERMOSTAT
CONTROL
Includes
INSTALLATION
USE & CARE
Model SMPT
Model TMPT
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
PRINTED IN UNITED STATES OF AMERICA
303305
08
p/n
Rev. D
ECN-13420
M001
0214 cps
Advertisement
Table of Contents
Related Manuals for Wells SMPT
Summary of Contents for Wells SMPT
- Page 1 WELLS BLOOMFIELD, LLC 2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439 telephone: 775-689-5703 fax: 775-689-5976 www.wellsbloomfield.com OPERATION MANUAL WELLS COUNTERTOP WARMERS Model SW-10T with THERMOSTAT CONTROL Includes INSTALLATION USE & CARE Model SMPT Model TMPT IMPORTANT: DO NOT DISCARD THIS MANUAL...
- Page 2 The prices charged by Wells Bloomfield for its products are SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS Resetting of safety thermostats, circuit breakers, over...
-
Page 3: Table Of Contents
PARTS & SERVICE CUSTOMER SERVICE DATA Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
TEMPERATURE CONTROL KNOB. The knob has a numeric scale, where higher numbers correspond to higher temperature. 3. On warmers equipped with an INDICATOR LIGHT, the light will glow when the thermostat is calling for heat (i.e. the element is energized). -
Page 5: Precautions & General Information
Refer to the product nameplate for the specific appliance for agency listings. In general: This appliance conforms to NSF Standard 4 for sanitation only if installed in accordance with the supplied Installation Instructions. UL Listed warmers are Listed under UL File E6070. PRECAUTIONS AND GENERAL INFORMATION All servicing requiring access... -
Page 6: Installation
Voltage and phase must match the nameplate specifications. Plugging the warmer into the wrong voltage can severely damage the unit or cause noticeable decreased performance. 2. Your warmers is equipped with a grounded electrical cord. This cord must be plugging into a properly grounded electrical receptacle. -
Page 7: Operation
2. a. Most warmers are designed for WET OR DRY operation. b. Warmers may be used wet, or may be used dry. However warmers may NOT be used wet-to-dry or dry-to-wet unless they have been allowed to cool to room temperature between the change in wet or dry operation. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION SHOCK HAZARD Do NOT splash or pour water into or over any control panel or wiring. CAUTION: SHOCK HAZARD Disconnect warmer from electric power before cleaning CAUTION: BURN HAZARD Allow warmer to cool completely before cleaning. CAUTION: SHOCK HAZARD DO NOT submerge warmer in water. - Page 9 WEEKLY CLEANING INSTRUCTIONS PREPARATIONS: Remove any insets, pans and/or adapter tops. Drain or remove water from well if used for wet operation. FREQUENCY: Weekly, or whenever lime or scale is seen accumulating on the sides of the warmer pans. TOOLS: Commercial Delime Cleaner Plastic Scouring Pad Clean Cloth or Sponge...
-
Page 10: Troubleshooting Suggestions
TROUBLESHOOTING SUGGESTIONS SYMPTOM No power to warmer Warmer will not heat Warmer trips circuit breaker Warmer slow to heat There are no user-serviceable components in this appliance. In all instances of damage or malfunction, contact your Authorized Wells Service Agency for repairs. POSSIBLE CAUSE Circuit breaker off or tripped Unit not plugged in... -
Page 11: Maintenance Instructions
Chlorides can attack the surface of stainless steel, resulting in corrosion and pitting. Keep your stainless steel warmers clean and free from calcium buildup. Use alkaline, alkaline chlorinated or non-chloride cleanser. Use citric acid-based cleaners to remove calcium deposits. -
Page 12: Parts & Service
DO NOT place food directly into the warmer pan. DESCRIPTION ADAPTERS & INSETS ADAPTER TOP, convert SMPT, HW/SMP or 1 side of TMPT to hold three 4 qt. insets ADAPTER TOP, convert SMPT, HW/SMP or 1 side of TMPT to hold one 7 qt. -
Page 13: Customer Service Data
For factory authorized service, or to order factory authorized replacement parts, contact your Wells authorized service agency, or call: Wells Bloomfield, LLC 2 Erik Circle P. O. Box 280 Verdi, NV 89439 Service Parts Dept. phone: (775) 689-5707 fax:... - Page 14 Commercial Food Equipment Service Association Wells Bloomfield proudly supports CFESA Commercial Food Equipment Service Association SERVICE TRAINING - QUALITY SERVICE SERVICE TRAINING - QUALITY SERVICE Genuine Parts Protect - YOU - All - Ways CUSTOMER SATISFACTION CUSTOMER SATISFACTION WELLS BLOOMFIELD, LLC 2 ERIK CIRCLE, P.
