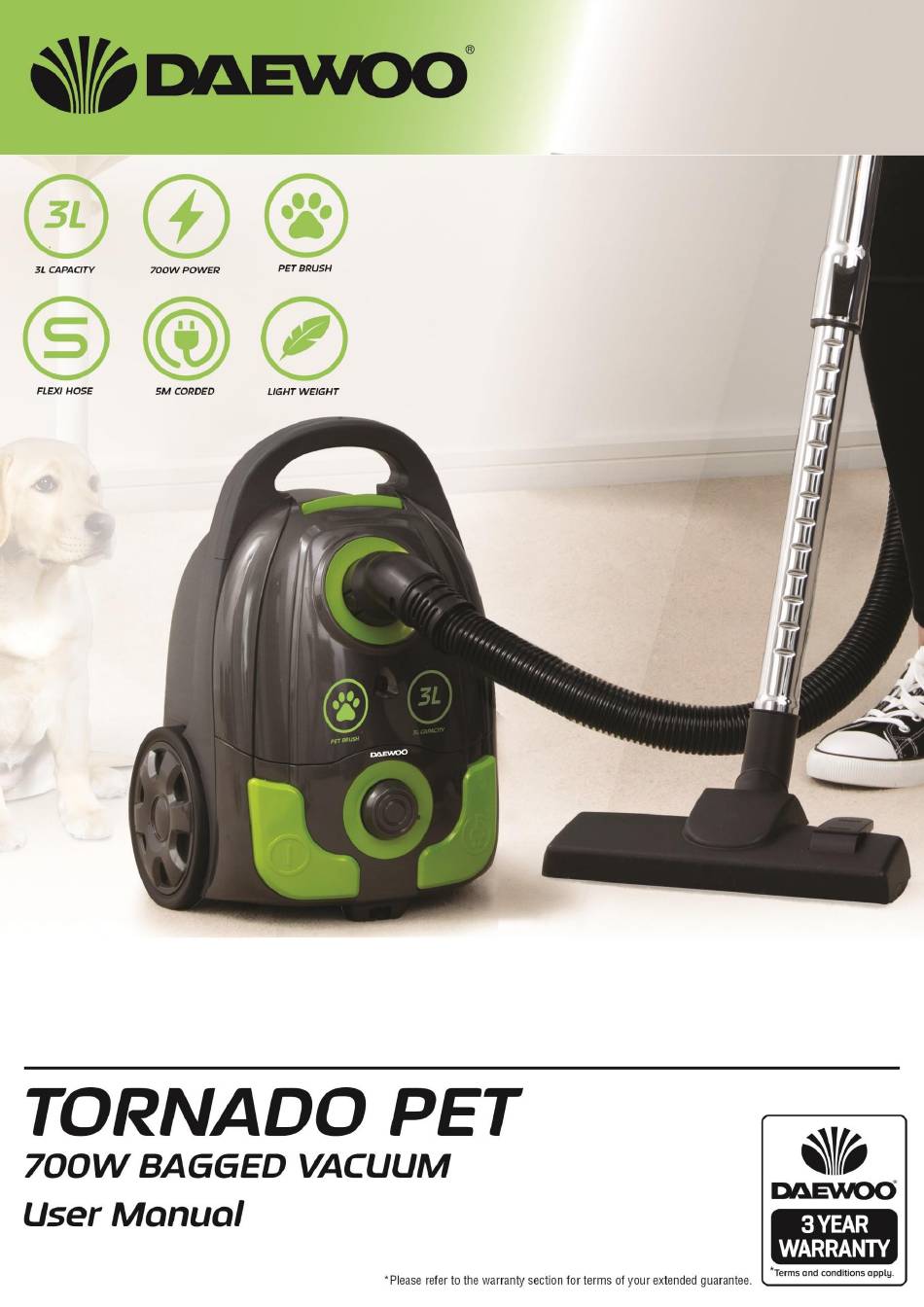

- Page 1 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
Tornado Pet 700W Bagged Vacuum FLR00047 User Manual IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference: Read and familiarise yourself with all operating instructions before using this •... - Page 3 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Do not pull or carry the Vacuum Cleaner by the electrical cord, use the handle • provided. Ensure fingers and other objects are never placed in any part of the vacuum •...
- Page 4 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Assembling Your Vacuum Cleaner CAUTION Ensure that the vacuum cleaner is not connected to the mains supply before using the attachments. Attaching the Flexible Hose (14) to the vacuum Attach the Flexible Hose (14) to the vacuum cleaner by pushing the Hose Connector (15)
- Page 5 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Using Your Vacuum Cleaner 1. Pull the Mains Cable and Plug (5) fully out of the vacuum cleaner, do not use the vacuum without pulling the cable all the way out. 2. Insert the mains plug into the nearest socket.
- Page 6 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Using the Hose and Pet Brush (19) For difficult to remove soiling on upholstery such as pet hairs, the pet brush can be used. This should be fitted onto the hose as shown above.
- Page 7 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual 5. Push the bag retaining clip forwards as shown right (a.). Slide the card front of the bag out of the dust bag holder (b.) and dispose of the used dust bag. Slide the card front of the new dust bag into the dust bag holder ensuring the retaining clip locks the card into place.
- Page 8 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual 7. Finally, push the latch down on the rear air outlet & filter (3) cover as shown in a, b, & c below. Remove the filter and wash clean in warm running water ensuring it is thoroughly dry for...
- Page 9 Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Fitting a new plug The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N).
-
Page 10: Troubleshooting Guide
Tornado Pet 700W Bagged Vacuum FLR00047 User Manual Troubleshooting Guide Problem Possible Cause Solution Unit fails to turn on. The unit may not be Ensure the plug is fully properly plugged in. inserted into the socket and The fuse may have the socket is switched on. -
Page 11: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
