BMW R 1200 R 2008 Rider's Manual page 114

8
112

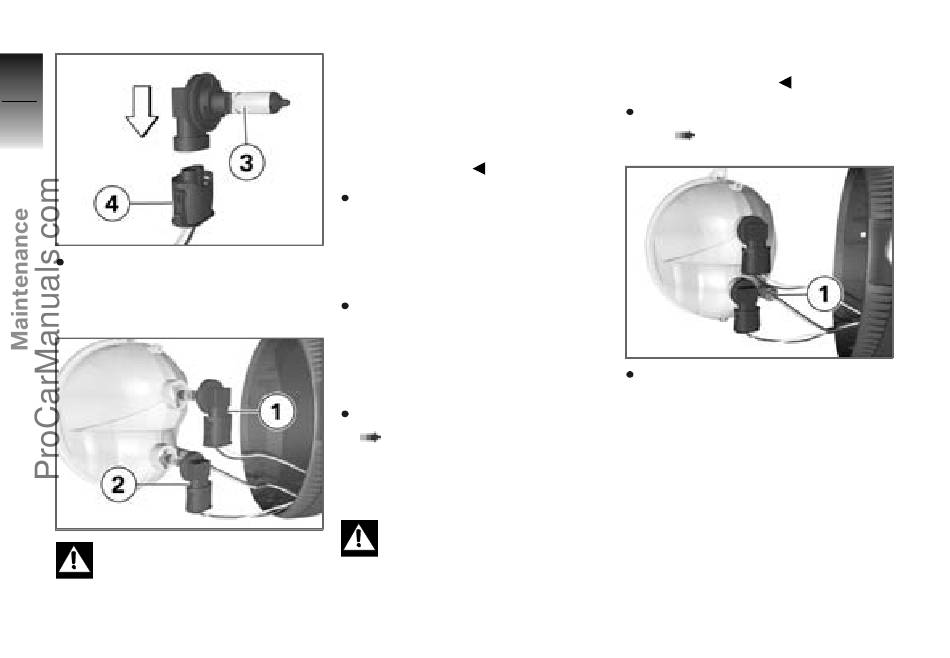

Install bulb 3 for low-beam or
high-beam headlight in bulb
socket 4.
z
It is possible to interchange
the high-beam and low-
beam bulb when installing the
bulb sockets.
Watch the color coding of the
cables for the low-beam head-
light (yellow) and high-beam
headlight (white).
Install bulb socket of low-beam
bulb 1 by turning clockwise.
Watch color coding of cable
when doing so: low-beam
headlight=yellow.
Install bulb socket of high-
beam bulb 2 by turning clock-
wise. Watch color coding of
cable when doing so: high-
beam headlight=white.
Inserting headlight in housing
( 113)
Replacing parking light
bulb
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Make sure that the motorcycle is
steady on its stand.
Removing headlight from hous-
ing ( 110)
Pull bulb socket 1 out of hous-
ing.
