Summary of Contents for Audiovox BT1611i

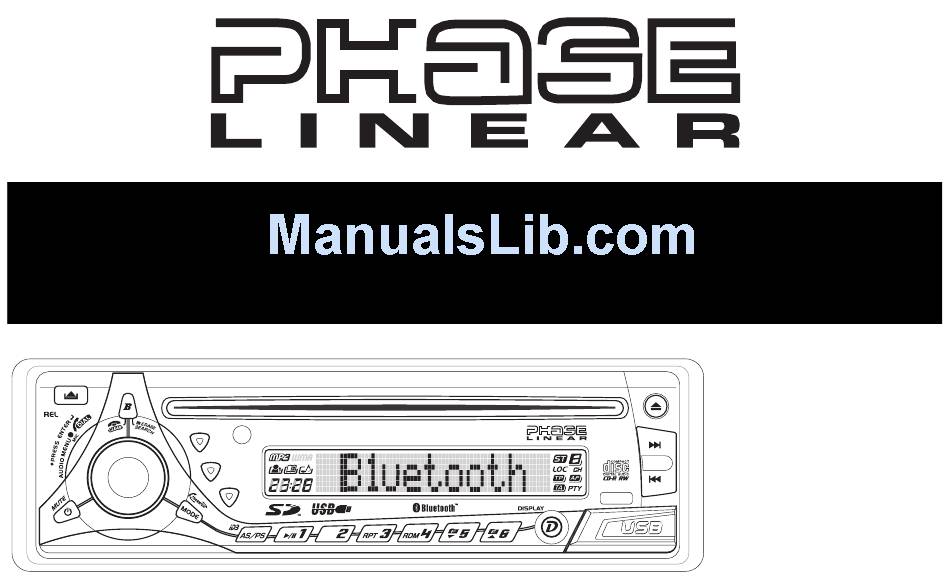

- Page 1 BT1611i Owner's Manual AM/FM/CD/MP3/WMA Receiver with Bluetooth Technology BT1611I MP3/WMA RECEIVER TUNE RECORD AUX IN BASS MENU...
-
Page 2: Table Of Contents
Congratulations on your purchase of the Phase Linear BT1611i Mobile AM/FM/CD/MP3/WMA Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Phase Linear BT1611i installed by a reputable installation shop. Contents Installation Instructions... 3 Wiring ... 6 Operating Instructions ... -
Page 3: Installation Instructions
BT1611i INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. - Page 4 Remove and discard the frame. Remove the factory mounting brackets and hardware from the existing radio and BT1611i attach them to the new radio. Do not exceed M5 x 9 MM maximum screw size. Longer screws may damage components inside the chassis.
- Page 5 When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The BT1611i uses one 15 amp fuse located below the wiring connector (15 amp fast blow ATO).
-
Page 6: Wiring
Failure to wire exactly as shown may cause electrical damage to the radio. Gray White/Black (-) Gray/Black (-) White (+) Gray (+) Green/Black (-) Violet/Black (-) Green (+) Violet (+) iPod iPod Mini iPod Nano iPod Gen5 BT1611i... -
Page 7: Operating Instructions
(4) to access the Audio Menu. Press the AUDIO CONTROL button repeatedly to step through the menu of audio functions: volume, bass, treble, balance, fader, and volume. When BT1611I MP3/WMA RECEIVER RECORD BASS adjusting audio functions, the unit will automatically exit select mode and return to the normal display after five seconds or when another function is activated. -
Page 8: System Menu
CONTROL (3) to select “RE-CONN” to re- connect or “DIS-CONN” to disconnect and then press the AUDIO CONTROL button (4) to perform the operation. BT1611i A ANSWER (On/Off) Select “On” to automatically answer calls without pressing the AUDIO CONTOL button... -
Page 9: Auxiliary Input
BT1611i allowing the radio to stop at a broader range of signals. To set the unit to select only strong local stations during automatic tuning, turn the AUDIO CONTROL to choose “Local”. VOL PGM (00-46) Use the “VOL PGM” option to select the default volume the radio will assume when first turned on. -
Page 10: Reset Button
BT1611i Reset Button The reset button (11) is located on the front of the chassis and can only be accessed with the front panel removed. The reset circuitry protects the microprocessor circuitry. Since resetting the unit will erase the time and preset... -
Page 11: Tuner Operation
When stored, the preset number will appear in the display. The station is now stored and can be recalled at any time by pressing the corresponding preset button. BT1611I MP3/WMA RECEIVER RECORD BASS Repeat for the remaining five presets on the current band and for all presets on the other four bands. - Page 12 BT1611i positions for that band. After entering the stations into memory, the unit will automatically stop at each station for five seconds so each can be heard. When using the Automatically Store feature, the new stations replace any stations already stored in preset memory for the selected band.
-
Page 13: Cd Player Operation
10 seconds of each track on the disc. “INTRO” will appear in the display. When the desired track is reached, press INT again to end the scan function and play the selected track. The BT1611I MP3/WMA RECEIVER RECORD BASS scan function will also be canceled when activating the repeat or shuffle functions. - Page 14 BT1611i Disc Shuffle (RDM) Press RDM (26) during disc play to play all tracks on a CD in random, shuffled order. “RANDOM” will appear in the display. Press RDM again to stop random play. “RANDOM” will disappear from the display and regular play will resume.
-
Page 15: Mp3/Wma Operation
BT1611i MP3/WMA OPERATION MP3 and WMA (Windows Media Audio) music files are digital audio files that are compressed to allow more files on a single CD. This unit can play MP3/WMA directly from files contained on a CD-R/RW using the buttons on the receiver (or optional remote) as described below. - Page 16 Do not attempt to play a medium containing a non-MP3/WMA file with the MP3/WMA extension or a medium containing non MP3/ WMA files. BT1611I MP3/WMA RECEIVER RECORD BASS Electronic Shock Protection • 10 seconds for CDDA (CDA) •...
-
Page 17: Track Select
BT1611i You may be able to set the order in which MP3/ WMA are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99". -
Page 18: Display Information
LCD screen. ICON DESCRIPTION TRACK ICON ARTIST ICON ALBUM ICON Press the AS/PS button (17) to manually view available ID3 information. BT1611I MP3/WMA RECEIVER RECORD BASS BT1611i TUNE AUX IN MENU... -
Page 19: Using A Usb Device Or Sd Card
15 for information regarding directory navigation and file searching. Recording CD Music Your BT1611i is equipped with a Record feature that allows you to record music from a disc to an SD/MMC card or USB device. To record music, perform the following steps: Insert a disc and select the track you would like to record. -
Page 20: File Management
Do not switch modes or turn the radio power or ignition off while recording. Transferring MP3/WMA Music Your BT1611i is equipped with a Music Transfer feature that allows you to record music from various sources to an SD/MMC card or USB device. -
Page 21: Ipod Operation
MODE button (2) on the front panel or remote control until “iPod” appears on the display. NOTE: The BT1611i will not select video files regardless of whether or not a video file was the last file playing when the iPod was plugged into the radio. - Page 22 • Genre After selecting the desired search mode, press the AUDIO CONTROL button (4) within 10 BT1611i seconds to confirm the search mode. Rotate the rotary encoder knob to navigate through the Album, Artist or Songs contained on your iPod.
-
Page 23: Bluetooth Operation
BT1611i BLUETOOTH OPERATION Before attempting to use the Bluetooth functions on the BT1611i, please make sure your mobile phone supports Bluetooth functions (Headset or Handsfree profiles or both). Adhere to the following guidelines for successful operation. • Before using Bluetooth functions, you must pair your mobile phone to the BT1611i head unit. -
Page 24: Managing Incoming Calls
• The LCD displays during the re-connection period. • If the re-connection is successful, the LCD Display displays BT1611i and returns to the previous mode. • If the re-connection fails, the LCD displays automatically returns to the previous mode. -
Page 25: Making An Outgoing Call
The time it takes to transfer the call back to the phone will vary depending on your phone model. NOTE: The BT1611i can only handle one call at a time, two lines cannot be active at one time even if your phone has call waiting. -
Page 26: Auto Answer
Press and hold the D (display) button (9) to access the MENU. Press the D button repeatedly to select the “PHONE VOL” option. Use the AUDIO CONTROL to adjust the ring volume from “00” to “38”. BT1611i... -
Page 27: Remote Control
BT1611i REMOTE CONTROL The remote control will allow you to control the basic functions of the BT1611i. The remote control sensor is located on the left side of the front panel to the right of the SUB button (18). EJECT... -
Page 28: Care And Maintenance
Wipe in a straight motion from the inside to the outside of the disc. Never use chemicals such as record sprays or household cleaners to clean BT1611i CDs, as they can irreparably damage the disc’s surface. Discs should be kept in their storage cases when not in use. -
Page 29: Troubleshooting
BT1611i TROUBLESHOOTING CD Player Error Codes If a problem should develop while operating the CD player, an error code (ER-1, ER-2, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. -
Page 30: Specifications
Power supply: 11-16 VDC, negative ground Power Antenna (Blue): 500mAmp Max, current limited protection. Operating Temp: -10C~60C Fuses: 15 amp fast blow ATO DIN chassis dimensions: 2"H x 7"W x 7"D (51mm x 178mm x 178mm) Specifications subject to change without notice. BT1611i... - Page 31 Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. This warranty is not transferable or assignable. Proof of purchase is required in the form of an original sales receipt.
- Page 32 Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.audiovox.com ©2007 Audiovox v.091707...
