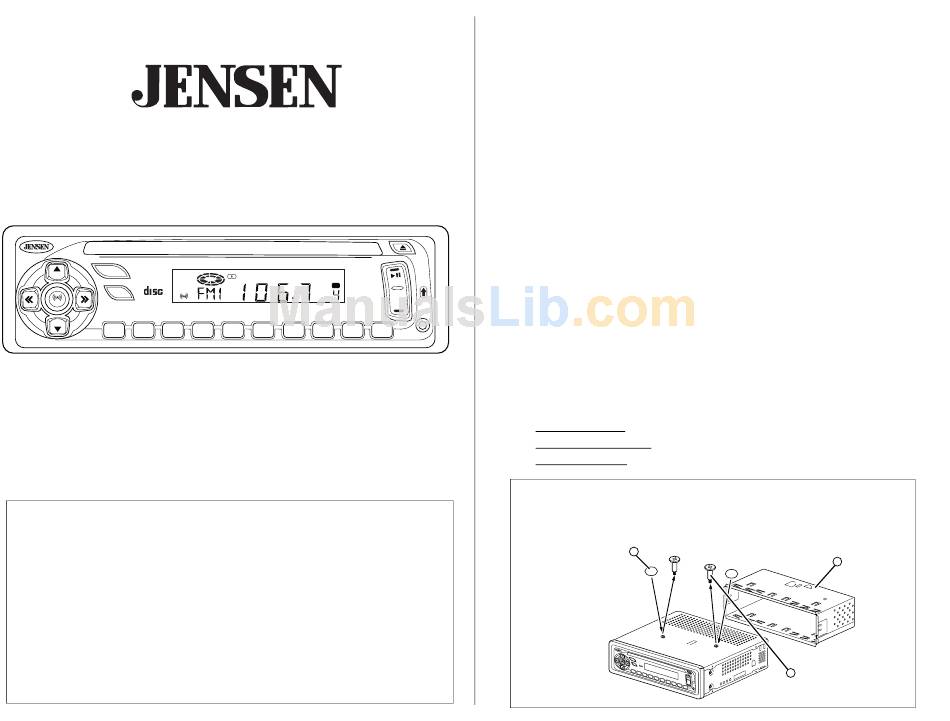

CD3210
Owner's Manual
PWR
CD3210
AUX
VOL
COMPACT
MUTE
DIGITAL AUDIO
SEL
RDM
RPT
RPT A-B
VOL
1
2
3
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge, NY 11788
1-800-323-4815
www.jensen.com
© 2004 Audiovox
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to
use all the features of your new Jensen receiver for maximum enjoyment.
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuner Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
45W x 4
AM/FM/CD RECEIVER
RPT
RDM
INT
PROGRAM
CH
INT
MEM/CLR
ELAPSE
PGM
4
5
6
AS/PS
BASS
SCAN
DISP
v.111103
Preparation
Getting Started
It's a good idea to read all of the instructions before beginning the installation.
Tools and Supplies
The following tools and supplies are needed to install the radio.
•
Torx type, Flat and Phillips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
•
Electrical tape
•
Crimping tool
•
Volt meter/test light
•
Crimp connections
•
18 gauge wire for power connections
BAND
•
16-18 gauge speaker wire
AUX
Speaker Requirements: Only connect speakers rated in the load impedance of 4 ohms.
Speakers with a load impedance less than 4 ohms could damage the unit.
Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
Prepare Radio
1.
Remove half sleeve - Lift latches on both sides to remove half-sleeve from radio.
2.
Remove transport screws - Remove screws before inserting a CD.
3.
Place adhesive dots - Press adhesive dots over transport screw holes.
Place adhesive dots
Ponga los puntos adhesivos
Collez les pastilles adhésives
Prepare Radio
Preparar la Radio
Préparer la Radio
3
PW R
VOL
AUX
CD 321
SEL
0
MUT
AM /FM
E
COMPA
CT
/CD RE
VOL
DIGITA
L AUDIO
CE IVE
RPT
R
RPT
A-B
1
45W
2
RD M
x 4
2
3
INT
PGM
4
ME M/C
5
LR
ELA
PSE
6
AS/ PS
BA SS
BAN
D
SCA
N
AUX
DIS P
Remove half sleeve
Quite la media camisa
Enlevez le demi-fourreau
1
Remove transport screws
Quite los tornillos transportadores
Enlevez les vis de transport
Advertisement
Table of Contents
Related Manuals for Audiovox Jensen CD3210
Summary of Contents for Audiovox Jensen CD3210
-
Page 1: Getting Started
CD Player Operation ........ -
Page 2: Table Of Contents
Enlevez le demi-fourreau - Appuyez sur les verrous placés de chaque côté de l’autoradio pour enlever le demi-fourreau. Enlevez les vis de transport - Enlevez les vis avant d’insérer un CD. Collez les pastilles adhésives - Obturez les trous des vis de transport en y pressant les pastilles adhésives. CD3210... - Page 3 Fuses When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage radio. The CD3210 uses one 10 amp fuse located below the wiring connector: 10 amp fast blow ATO.
-
Page 4: Cableado
Lors du remplacement d’un fusible, assurez-cous que le fusible de remplacement est du type et de la puissance appropriés. L’utilisation d’un fusible non approprié pourrait endommager la radio. Le CD3210 est doté d’un fusible de 10 A, situé sous le connecteur du câblage (10 A à fusion rapide, type ATO). -
Page 5: Instalación
Installation Final Installation Connect wiring adapter to existing wiring harness. Connect antenna lead. Slide radio chassis into half-sleeve. Secure radio to bracket using nut (if possible). Replace any items you removed from the dashboard. Final ISO-DIN Installation Remove trim ring. Mount factory brackets on new radio using existing screws from old radio. -
Page 6: Operación Básica
(5) appears in the display. 6. Select Press SEL (5a) to step through the menu of audio functions: volume, bass, treble, balance, fader and back to volume. Basic Operation Operación Básica Opération de base CD3210 AM/FM/CD RECEIVER COMPACT MUTE DIGITAL AUDIO RPT A-B MEM/CLR Operación Básica... - Page 7 CD3210 Basic Operation (continued) 6. Select (continued) Bass Press SEL (5a) twice, and use the Volume Up (2a) and Volume Down (2b) buttons to adjust bass from -6 to +6. “00” represents a flat response. Treble Press SEL (5a) three times, and use the Volume Up (2a) and Volume Down (2b) buttons to adjust Treble from -6 to +6.
- Page 8 Insérez les clés de démontage entre le châssis du poste de radio et le manchon pour appuyer sur les ressorts de blocage. Tirez le poste hors de la planche de bord. Pour remettre en place, glissez l’arête gauche dans le poste de radio. Appuyez pour fixer. CD3210...
-
Page 9: Operación De La Radio
CD3210 Tuner Operation 10. Select a Band Press BAND (10) to change between three FM bands and two AM bands. Each band stores up to six preset stations. 11. Tuning Manual Tuning Press the Up Tuning (>>) or Down Tuning (<<) button (11a and 11b) for more than three seconds to move the radio frequency number up or down one step. - Page 10 Press AS/PS (14) for less than three seconds. The unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached. Preset Stations Preselección de Emisoras Stations programmées CD3210 AM/FM/CD RECEIVER COMPACT MUTE DIGITAL AUDIO MEM/CLR...
-
Page 11: Operación Del Reproductor De Cd
CD3210 CD Player Operation 15. Insert and Eject CD Insert a CD label-side up, and the disc will begin to play. Press the Eject button (15) to stop CD play and eject the CD. The unit does not have to be turned on to eject the CD. -
Page 12: Control Remoto
Do not expose the CD player to extremely high or low temperatures. Do not drive with an ejected CD in the slot. Remote Control The remote control will allow you to control the basic functions of the CD3210. Remote Control Prêt à être télécommandé... -
Page 13: Specifications
Press RESET, insert disc and try again AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that Press RESET, insert disc and try again should this product or any part thereof, under normal use and conditions, be proven defective in material or... -
Page 14: Corrección De Problemas
Presione el bot n ó RESET . Inserte el disco y vuelva a intentar AUDIOVOX CORPORATION (la Compañía) garantiza al comprador minorista original del presente producto Presione el bot n ó RESET . El disco puede estar que en el caso de que este producto o cualquiera de las partes del mismo, bajo circunstancias y condiciones de da ado o sucio ñ... -
Page 15: Dépannage
Ces caractéristiques peuvent être modifiées sans préavis. Garantie Limitée de 12 Mois AUDIOVOX CORPORATION (la Société) garantit à l’acheteur initial du produit que si tout ou partie de ce produit, en cours d’utilisation et sous des conditions normales, venait à présenter des vices de matière primitive ou des défauts de fabrication, dans les 12 mois suivant la date d’achat initial, ce(s) défaut(s)
