Audiovox Jensen CD3720 Owner's Manual

Audiovox owners manual car cd player cd3720
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

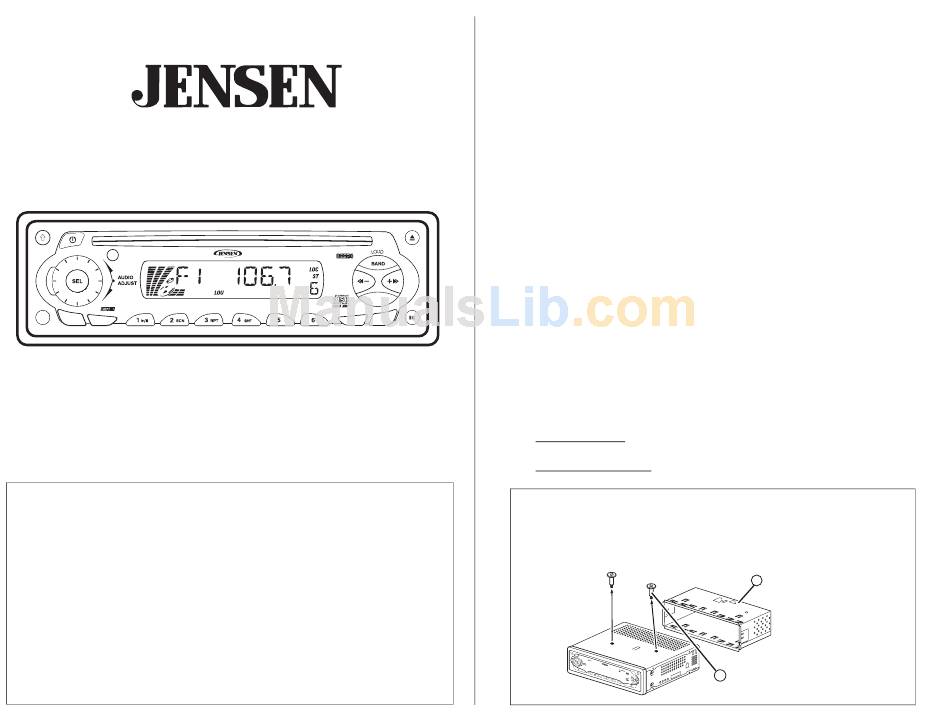

CD3720
Owner's Manual
RELEASE
CD3720
AUX IN
MP3
MON
LO/DX
MUTE
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge, NY 11788
1-800-323-4815
www.jensen.com
© 2004 Audiovox
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to
use all the features of your new Jensen receiver for maximum enjoyment.
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuner Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
®
MOSFET 50
WATTS
X 4
DISP
CD RECEIVER
/
AS/PS
MODE
v.123103

Preparation

Getting Started
It's a good idea to read all of the instructions before beginning the installation.
Tools and Supplies
The following tools and supplies are needed to install the radio.
•
Torx type, flat-head and Phillips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
•
Electrical tape
•
Crimping tool
•
Volt meter/test light
•
Crimp connections
•
18 gauge wire for power connections
•
16 - 18 gauge speaker wire
Speaker Requirements: Only connect speakers rated in the load impedance of 4 ohms.
Speakers with a load impedance less than 4 ohms could damage the unit.
Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
Prepare Radio
1.
Remove half sleeve - Press the metal levers on both sides to remove the half-sleeve
from the radio.
2.
Remove transport screws - Remove screws before inserting a CD.
Prepare Radio
Preparar la Radio
Préparer la Radio
EQ
MON
LOC
MUT
SCN
PAU
CD REC
RX
EIVE
SCN
R
DIM
RPT
BND/
LOU
SHF
DSP
AMS
MOD
SW
Remove half sleeve
Quite la media camisa
Enlevez le demi-fourreau
1
Remove transport screws
2
Quite los tornillos transportadores
Enlevez les vis de transport

Advertisement

Table of Contents
loading

Related Manuals for Audiovox Jensen CD3720

Summary of Contents for Audiovox Jensen CD3720

  • Page 1: Table Of Contents

    CD3720 Owner’s Manual RELEASE CD3720 AUX IN CD RECEIVER LO/DX MUTE Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.jensen.com © 2004 Audiovox v.123103 Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow.

  • Page 2: Manual Del Usuario

    Il faut toujours débrancher la borne de batterie négative avant de commencer. Préparer la Radio Enlevez le demi-fourreau – Appuyez sur les verrous placés de chaque côté de l’autoradio pour enlever le demi-fourreau. Enlevez les vis de transport – Enlevez les vis avant d’insérer un CD. CD3720...

  • Page 3: Wiring

    When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The CD3720 uses one 15 amp fuse located below the wiring connector: 15 amp fast blow ATO.
  • Page 4 Lors du remplacement d’un fusible, assurez-cous que le fusible de remplacement est du type et de la puissance appropriés. L’utilisation d’un fusible non approprié pourrait endommager la radio. Le CD3720 est doté d’un fusible de 15 A, situé sous le connecteur du câblage (15 A à fusion rapide, type ATO).

  • Page 5: Installation

    Installation Final Installation Connect wiring adapter to existing wiring harness. Connect antenna lead. Slide radio chassis into half-sleeve. Secure radio to bracket using nut (if possible). Replace any items you removed from the dashboard. Final ISO-DIN Installation Remove trim ring. Mount factory brackets on new radio using existing screws from old radio.

  • Page 6: Basic Operation

    3. Mute Press MUTE (7) to silence the receiver. Press MUTE again to resume normal operation. Basic Operation Operación Básica Opération de base RELEASE CD3720 AUX IN CD RECEIVER LO/DX MUTE Operación Básica 1. Potencia Para girar la unidad, presionar cualquier botón excepto RELEASE (1) o EJECT (véase la...
  • Page 7 CD3720 Basic Operation (continued) 4. Loudness Press and hold the BAND (19) button > 3 seconds to activate the Loudness. When the Loudness is on, LOUD appears in the bottom left of the display. Press and hold the BAND button again to turn the Loudness off.

  • Page 8: Tuner Operation

    éloignées plus faibles. Cet arrangement est efficace en utilisant la fonction de balayage. 12. Mono/Stéréo Appuyez sur le bouton de MON (21) pour choisir le mode mono ou stéréo. Vous pouvez parfois améliorer la réception des stations éloignées par opération mono de choix. CD3720...
  • Page 9 CD3720 Tuner Operation (continued) 13. Tuning Manual Tuning Press the UP TUNING (+>>) or DOWN TUNING (<<-) button (17 and 18) for > 3 seconds until “MANUAL” appears on the display. Press the UP TUNING (+>>) or DOWN TUNING (<<-) button to move the radio frequency number up or down one step.
  • Page 10 Press AS/PS (14) for < 3 seconds. The unit will pause for 5 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached. Preset Stations Preselección de Emisoras Stations Programmées RELEASE CD3720 AUX IN CD RECEIVER LO/DX MUTE Press and hold Presione y mantenga presionado Appuyez et maintenez El Número Preseleccionado Aparecerá...

  • Page 11: Cd Player Operation

    CD3720 CD Player Operation 16. Insert and Eject CD Insert a CD label-side up. The disc will automatically begin to play. To stop CD play and eject the CD, press the EJECT (25) button. The unit does not have to be turned on to eject the CD.

  • Page 12: Control Remoto

    Do not expose the CD player to extremely high or low temperatures. Do not drive with an ejected CD in the slot. Remote Control The remote control will allow you to control the basic functions of the CD3720. The remote control sensor is at the top left of the BAND (19) button. Remote Control Prêt à...

  • Page 13: Troubleshooting

    12-Month Limited Warranty tighten if needed AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.

  • Page 14: Garantia Limitade De 12 Meses

    Garantia Limitade de 12 Meses Instale el fusible do voltaje apropiado AUDIOVOX CORPORATION (la Compañía) garantiza al comprador minorista original del presente producto que en el caso de que este producto o cualquiera de las partes del mismo, bajo circunstancias y condiciones de Presione el botón RESET.
  • Page 15 Garantie Limitée de 12 Mois Assurez-vous que le fil n’est pas AUDIOVOX CORPORATION (la Société) garantit à l’acheteur initial du produit que si tout ou partie de ce pincé produit, en cours d’utilisation et sous des conditions normales, venait à présenter des vices de matière primitive ou des défauts de fabrication, dans les 12 mois suivant la date d’achat initial, ce(s) défaut(s)
