8.

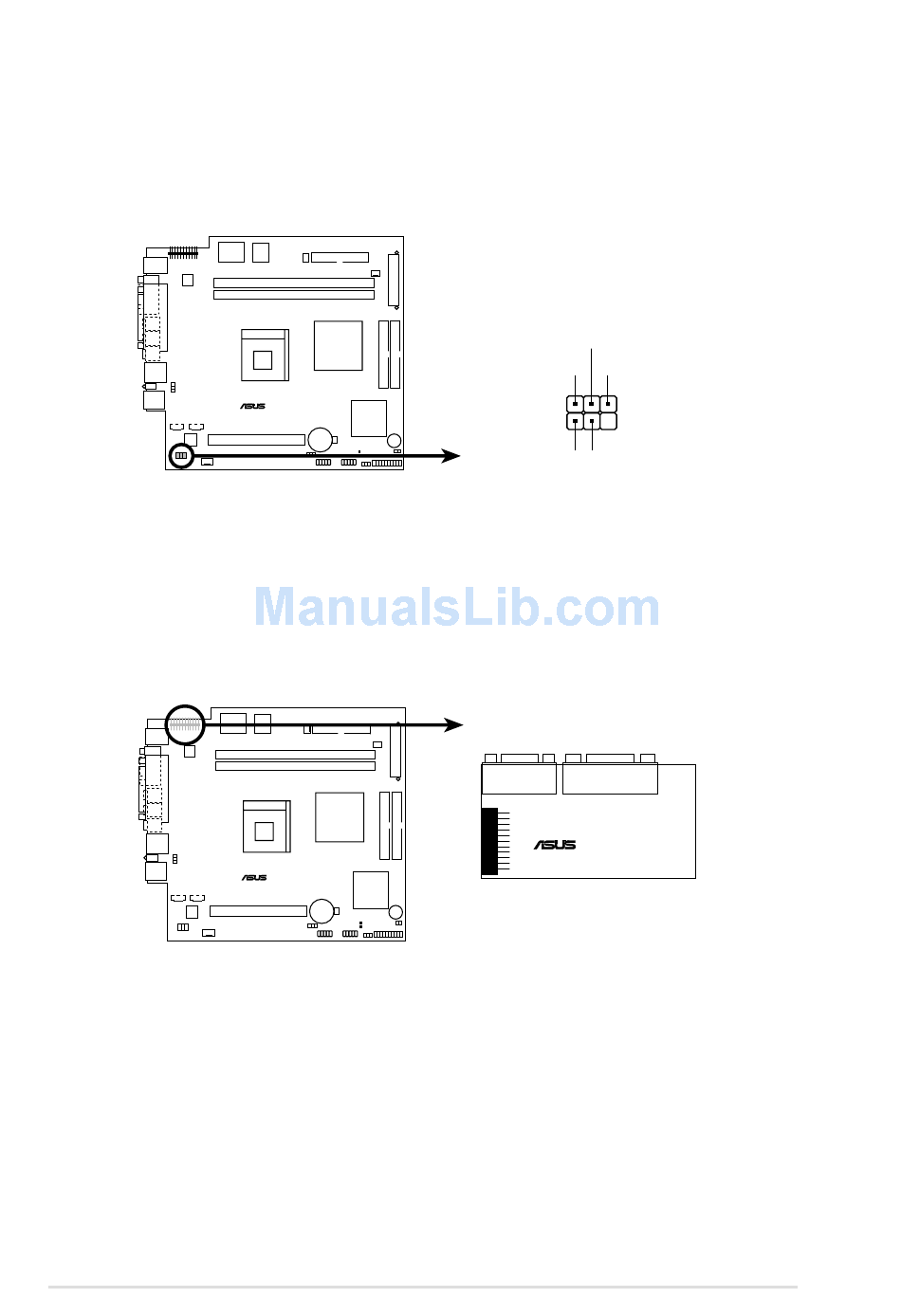

Front panel audio connectors (5-1 pin MIC_LOUT1)
This connector connects to a front panel audio module using an audio
cable. If your chassis has this audio module, you may conveniently
connect a microphone and a speaker/headphone on the front panel.
P4SC-E Microphone Header
9.
IO extension module connector (22-pin IOC_MB)
This connector is for the CGAEX extension module.
P4SC-E IOC_MB Connector
50
P4SC-E
Head set Right channel
®
P4SC-E
®
Chapter 3: Motherboard information
MIC_LOUT1
Head set Left channel
GND
1
1
MIC PWR
MIC Signal
GAME
COM1
®
CGAEX
IOC_DC
