2.
Floppy disk drive connector (34-1 pin FLOPPY1)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the
floppy drive. (Pin 5 is removed to prevent incorrect insertion when
using ribbon cables with pin 5 plug).

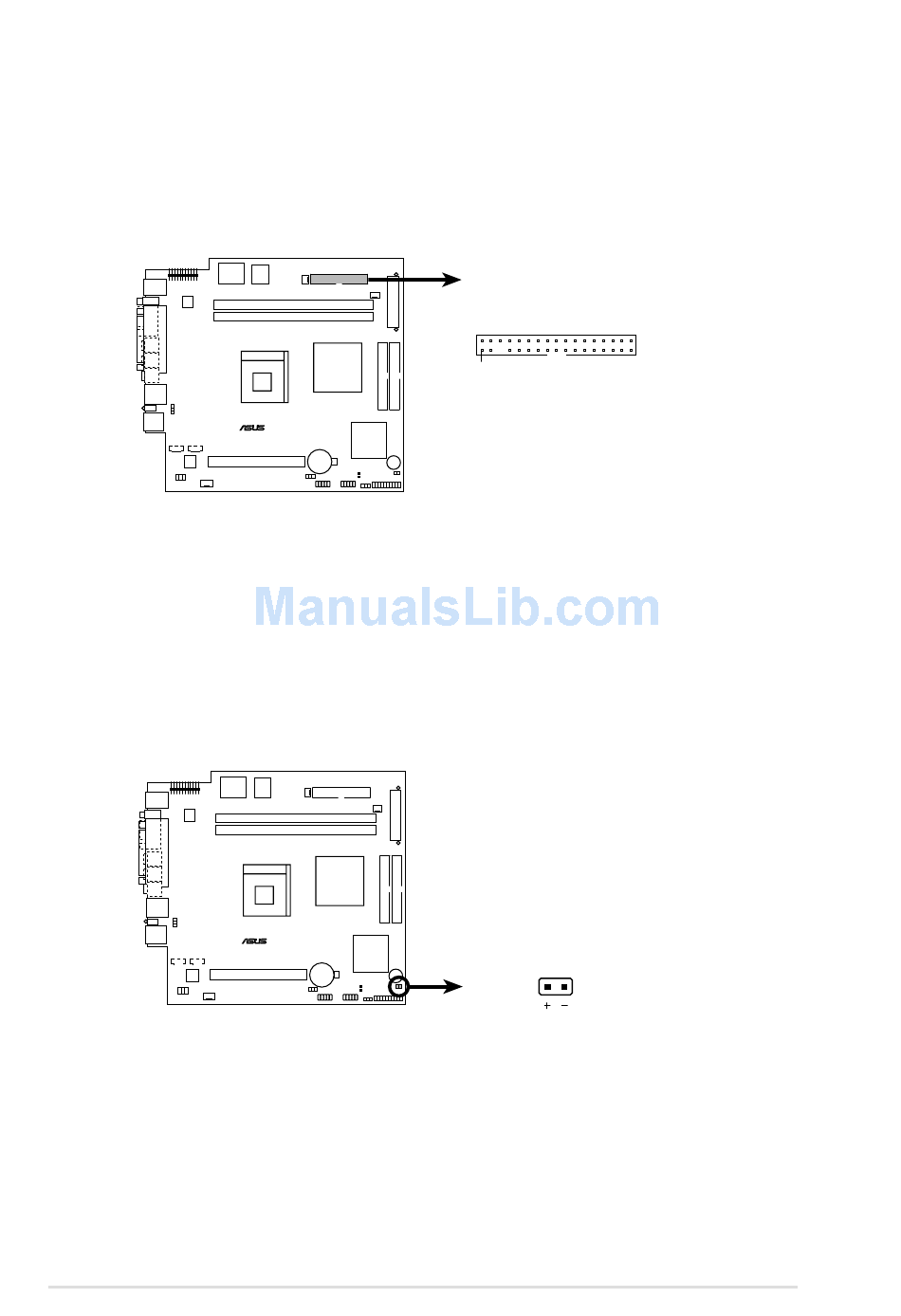

P4SC-E Floppy Disk Drive Connector
3.
Hard disk activity LED (2-pin IDE_LED1)
This connector supplies power to the hard disk activity LED. The read
or write activities of any device connected to the primary or
secondary IDE connector cause this LED to light up.
P4SC-E IDE Activity LED
46
P4SC-E
®
P4SC-E
®
Chapter 3: Motherboard information
FLOPPY1
PIN 1
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
TIP: If the case-mounted LED does not
light, try reversing the 2-pin plug.
IDE_LED1
