Carrier OptiClean FN1AAF 005 Operation And Maintenance Manual

FN1AAF
OptiClean™ Negative Air Machine and Scrubber
NOTE: Read all instructions and data in this manual before operating.
015 SIZE

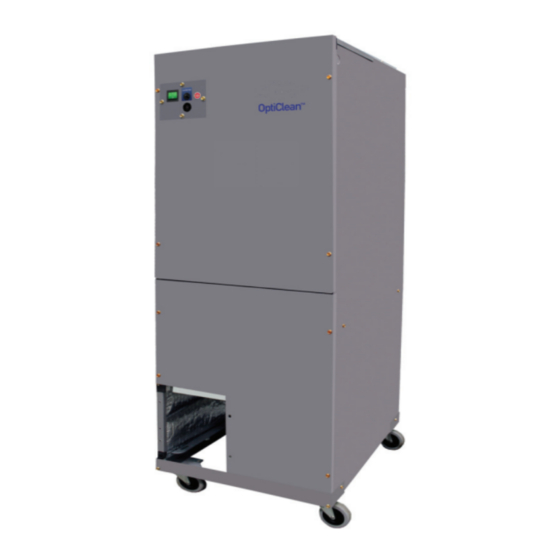

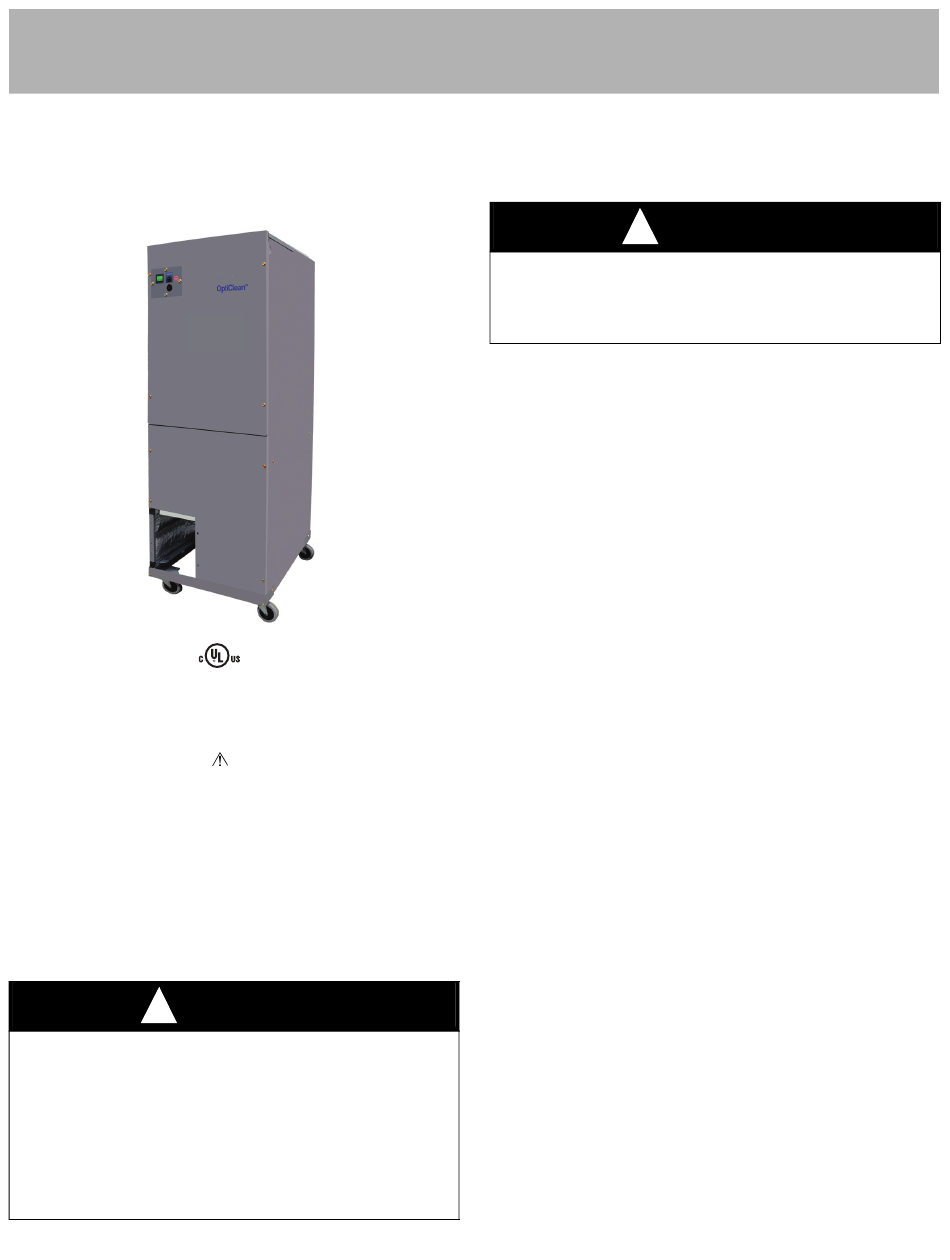

Fig. 1 – FN1AAF
A Note About Safety
Any time you see this symbol
unit, be aware of the potential for personal injury. There are three levels
of precaution:
DANGER identifies the most serious hazards which will result in severe
personal injury or death.
WARNING signifies hazards that could result in personal injury or
death.
CAUTION is used to identify unsafe practices which would result in
minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
WARNING
!
PERSONAL INJURY OR PROPERTY DAMAGE
HAZARD
Failure to follow this warning could result in personal injury or
property damage.
Improper installation, adjustment, alteration, service, maintenance, or
use can cause conditions which may cause personal injury or property
damage. Consult a qualified installer or your distributor for information
or assistance. Read and follow all instructions and warnings, including
labels shipped with or attached to unit before operating.
Operation and Maintenance Manual
in manuals, instructions and on the
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Disconnect all electrical power to the unit before removing access
panels to perform any maintenance.
About Your Negative Air Machine
The OptiClean™ negative air machine is a portable solution primarily
designed to help convert normal hospital rooms into Airborne Infectious
Isolation Rooms (AIIR). Designed to ASHRAE's Standard 170 for
Ventilation of Health Care Facilities, the OptiClean™ uses highly
efficient filters and a heavy duty, yet quiet, motor to remove
contaminated air from the room. The resulting negative air pressure, or
"vacuum effect," helps limit the spread of air-based contaminants into
surrounding areas. If negative pressure is not required, such as in an
open-air, temporary hospital, the machine can be used as an air
"scrubber," pulling air in, removing many contaminants, and discharging
cleaner air back into the room.
The OptiClean™ negative air machine features:
• 99.97% efficient long-life HEPA filter removes particles as small as
0.3 microns
A200220 • Standard MERV 7 or higher pre-filter
• Minimum 500 CFM and Maximum 1500 CFM
• Meets or exceeds ASHRAE Standard 170: Ventilation of Health Care
Facilities
• Vertical design for smaller footprint compared to many competitors,
and can be mounted and operated horizontally when necessary
• Portable and adaptable to nearly any location
• Heavy duty locking casters for easy and smooth transport
• HEPA filter rack and sealing design meet air leakage requirement
• Red lighted indicator to alert user when filters are overloaded
(generally means pre-filter requires replacement)
• Green ON/OFF switch illuminates to verify when running
• 3-speed selector switch on 015 size model for various air flow ranges
• 10-foot long power cord with strain relief
• 115V
• Galvanized steel, pre-painted cabinet is fully insulated
• Exhaust transition plate to standard 10-inch round (005 size) or
12-inch oval (015 size) duct included
• UL® Listed
• One year limited warranty
• Currently designed for commercial applications only
WARNING
!
UL and the UL logo are trademarks of UL LLC.
