Mounting the front bracket
Mount the front bracket as shown in Figure 10 and Figure 11.

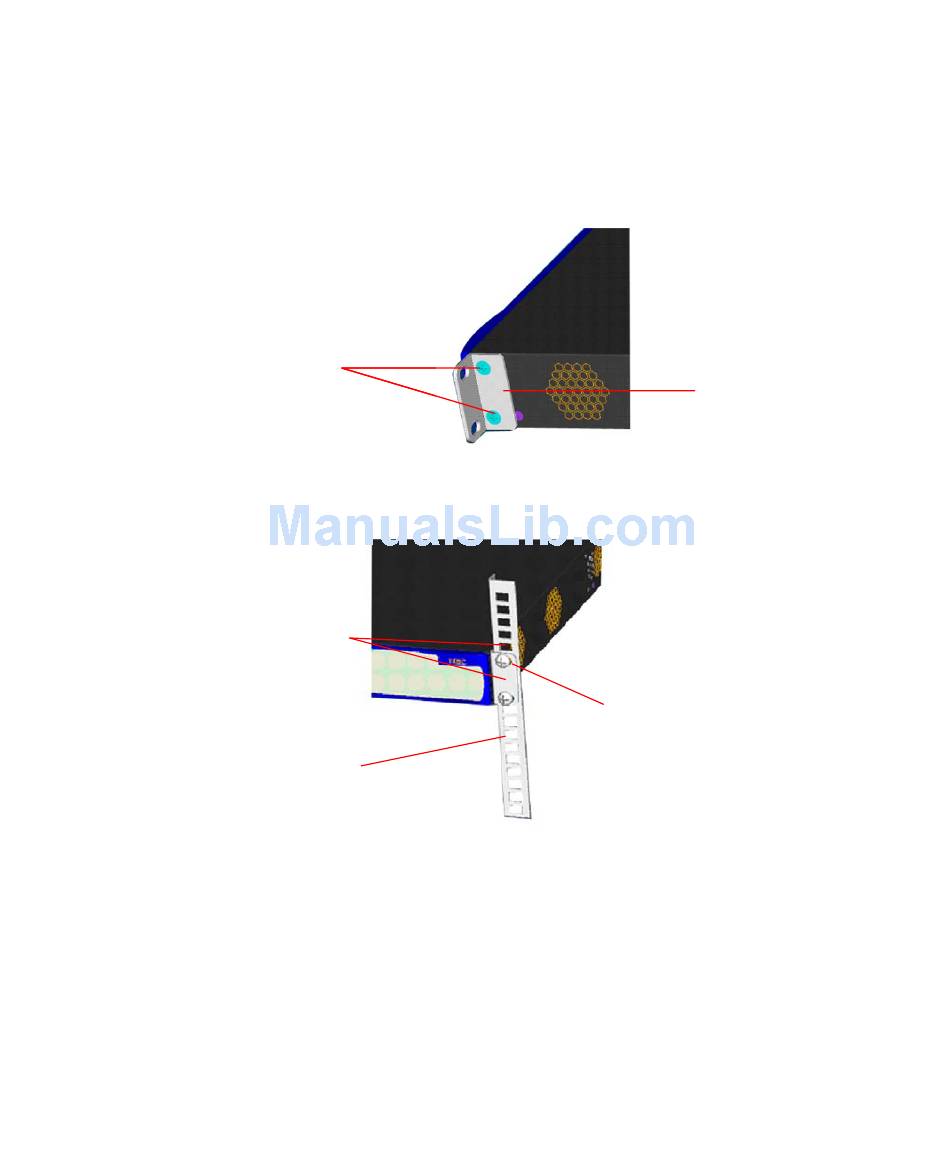

Figure 10 Mount the front bracket to the device
Screw Screw
Figure 11 Mount the front bracket to the mount angel of the rack
Screw Screw
Front mount angle Front mount angle
Mounting the rear bracket
The Switch 4500G 24-Port and Switch 4500G 48-Port series do not need
rear brackets. The description on mounting rear brackets is only for the
Switch 4500G PWR 24-Port and Switch 4500G PWR 48-Port series.
Mount a screw on the back of the switch to closely connect the switch with
the rear bracket to support the switch. There are three positions for screw
mounting as shown in Figure 12.
Rack-Mounting the Switch
Front Front
bracket bracket
Front Front
bracket bracket
