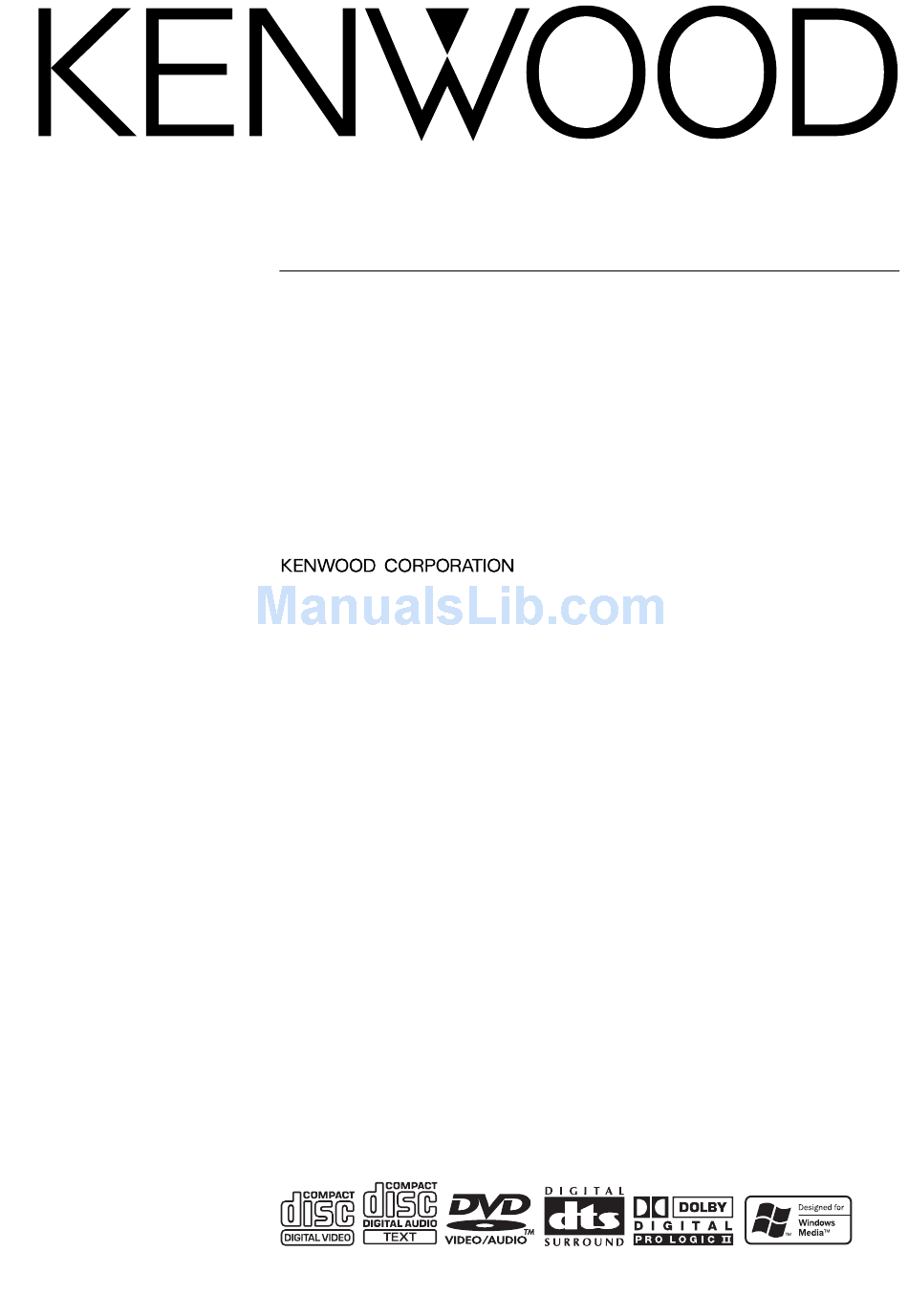

- Page 1 KVT-925DVD TELEVISION WITH DVD RECEIVER INSTRUCTION MANUAL TELEVISION AVEC AMPLI-TUNER LECTEUR DE DVD MODE D’EMPLOI FERNSEHER MIT DVD-RECEIVER BEDIENUNGSANLEITUNG © PRINTED IN JAPAN B64-2604-10/01 (E)(AI)
-
Page 2: Table Of Contents
Power Switch ...8 • Displaying the DAB Tuner Menu screen • Seek Mode Removing/Attaching the Protection Panel...9 • Auto Ensemble Memory KVT-925DVD Basic operation...10 • Service Preset Memory Basic Operations of Remote Controller ...12 • Service Select • Language Filter Switch Small Display ...14... -
Page 3: Before Use
(e.g., coins or metal tools) inside the unit. KNA-DV3200, KNA-DV2200 • If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood Loading and Replacing the battery dealer. 1. Use two "AAA"-size batteries. -
Page 4: About Discs
About discs Handling discs Removing discs • Don’t touch the recording surface of the disc. When removing discs from this unit pull them out horizontally. Discs that can’t be used • Discs that aren’t round can’t be used. • CD-R/RW, DVD-R/RW, and DVD+R/RW are easier to damage than a normal music CD. -
Page 5: Opening/Closing The Monitor And Power Switch
Opening/Closing the Monitor and Power Switch Open the monitor [OPEN/CLOSE] key Close the monitor Turn the power switch on Hold down the [Source] key more than one second to turn it off. • Do not touch the moving components when you are opening or closing the monitor. If done, you will get hurt. •... -
Page 6: Kvt-925Dvd Basic Operation
KVT-925DVD Basic operation When the monitor is open SCREEN MODE DISP When the monitor is closed DISP Disc indicator 10 English 1 Play Disc [Disc insertion slot] A disc is played when you insert it. 2 Stop to Play [7] key Stops to play. -
Page 7: Basic Operations Of Remote Controller
Basic Operations of Remote Controller BAND DISC STOP DIRECT RETURN OPEN MODE TOP MENU MENU AUDIO ENTER V.SEL SUBTITLE AV OUT ANGLE CLEAR 1 Remote Control Mode selector 3 [DISC] Selects one of the following remote control modes. Stops to play the built-in disc player. TV source 4 Switches over the sound source each time it is DVD: Built-in DVD/VCD/CD/MP3/WMA player source... -
Page 8: Switch Small Display
Switch Small Display The Small Display screen mode changes each time the [Display] key is pressed. SCREEN MODE V.SEL V.OFF AV OUT SEL * Hold down the [Display] key more than 1 second to switch to the Frequency display. 14 English Switch Screen Mode The Screen mode of the monitor changes each time the [MODE] key is pressed. -
Page 9: Control During Dvd Video, Dvd Audio Or Video Cd Playback
Control during DVD Video, DVD Audio or Video CD Control during DVD Video, DVD Audio or Video CD Playback Various control screens appear when you play back a DVD Video (DVD-V), a DVD Displaying the DVD/VCD Playback screen 1 Title Number Display (DVD-V) You can use the following operations when displaying Group Number Display (DVD-A) DVD/VCD images. -
Page 10: Displaying The Dvd-V/Dvd-A/Vcd Control Screen
Control during DVD Video, DVD Audio or Video CD Displaying the DVD-V/DVD-A/ VCD Control screen o Adjusts the volume. Plays a DVD/VCD using various functions. ; Ejects the disc from the built-in disc player. a Calls the Sound Effects Menu. (see page 76) s Switches the source. -
Page 11: Dvd Disc Menu
Control during DVD Video, DVD Audio or Video CD DVD Disc Menu Selects an option from the DVD Disc Menu. Disc Menu Displays the Disc Menu Control screen DVD Disc Menu Control Buttons Area (page 16) MENU Ctrl ANGLE AUDIO Page + Page - ZOOM... -
Page 12: Tv Control
You can tune in a TV station using various functions. TV Control screen • For TV picture selection and receiver key operations, see <KVT-925DVD Basic Operations> (see page 10). • The information display is cleared automatically after approximately 5 seconds. Also, the information can be displayed automatically when it is updated (see page 64). -
Page 13: Seek Mode
TV Control Seek Mode Auto Memory Sets a TV station selection. Stores stations with good reception in memory automatically. SEEK SEEK is not shown, touch Next The mode is switched each time you touch the button. Tunes in a station with good AUTO 1 reception automatically. -
Page 14: Tuner Control
You can tune in a station using various functions. Tuner Control screen • For receiver key operations, see <KVT-925DVD Basic Operations> (see page 10). • The Easy Control Panel display is cleared when you touch the center of image display area. - Page 15 Tuner Control Seek Mode Auto Memory Sets a station selection. Stores stations with good reception in memory automatically. SEEK SEEK is not shown, touch Next The mode is switched each time you touch the button. Tunes in a station with good AUTO 1 reception automatically.
-
Page 16: Traffic Information
Tuner Control Direct Search Traffic Information Tunes in a station when its frequency is When a traffic bulletin starts, any source is entered. switched to the traffic information and it is displayed automatically. Select a band When the traffic bulletin starts... The Traffic Information screen appears automatically. - Page 17 You can play the CD/MP3/WMA/disc changer using various functions. CD Control screen • For CD/MP3/WMA/Disc Changer playback and receiver key operations, see <KVT-925DVD Basic Operations> (see page 10). • The Easy Control Panel display is cleared when you touch the center of image display area.
- Page 18 CD/MP3/WMA/Disc Changer Play Control MP3/WMA Control screen During MP3/WMA play / Ejects a disc. z Fast Forwards. x Stops to play. When pressed twice, the disc is played from its beginning when you play it in the next time. Next c Selects a song.
- Page 19 CD/MP3/WMA/Disc Changer Play Control Displaying the CD/MP3/WMA/ Disc Changer Menu screen Selects options from various function menus. You can select menu options using various functions. Returns to the CD/MP3/WMA/Disc Changer Control screen. MENU CD Menu screen 36 English Set Disc Name Names a CD.
-
Page 20: Mute Telephone
The following items can be searched directly each time it is pressed. CD: Track number, Total play time CH Disc Select MP3/WMA: Folder, File 6.KENWOOD When searching for a song: display. During play on an external in disc player or disc changer (It is not displayed when a disc changer having 6 or less discs is used.) -
Page 21: Dab Tuner Control
You can select the Ensemble and services using various functions. DAB Tuner Control screen • For system key operations, see <KVT-925DVD Basic Operations> (see page 10). • The Easy Control Panel display is cleared when you touch the center of image display area. -
Page 22: Seek Mode
DAB Tuner control Seek Mode Service Preset Memory A service selection method can be set. The current receiving service is stored in memory. SEEK SEEK is not shown, touch Next The mode display is switched each time you touch the button. Tunes in an ensemble with good AUTO 1 reception automatically. -
Page 23: Search For Program Type
DAB Tuner control Search for Program Type The services are received when you set its Display the Language select screen program type. Call the DAB Tuner Menu MENU Call the PTY Search Menu PTY Search SRCH 1 Selects a Language. 2 Searches for the program type. -
Page 24: Character Entry
Character Entry How To Use the Character Entry screen When you select the Set Disc Name mode or others, the following screen appears for character entry. Character Entry screen や ゆ つ よ 1 Shifts the cursor. 2 Enters a space. If you erase a character, locate the cursor on it and touch this button. -
Page 25: Adjusting The Monitor Display Position And Quality
Adjusting the Monitor Display Position and Quality Adjusting the Monitor Display Position and Quality You can adjust the position and picture quality of the monitor. Displaying the Screen Control screen 1 Brightness Control You can adjust the picture quality using the following Disabled if the Auto Dimmer is On. -
Page 26: Audio Set Up
Setup Menu Audio Set Up You can set up the car type and speaker system you use together with this unit. Displaying the Car Type Set Up screen 1 Adjusts the volume. If your vehicle type is selected, the Digital Time 2 Returns to the Control screen of the previous Alignment is set automatically (for timing adjustment of source. -
Page 27: Speaker Set Up
Setup Menu Speaker Set Up Select a speaker type and its size to get the best sound effects. Select a speaker you wish to adjust You can select any of the following speaker types. Center speaker: Speaker Set Up screen Front speakers: Rear speakers: Subwoofer:... -
Page 28: Dta Setup
Setup Menu DTA Setup Manually set the sound output timing of each channel. Display the DTA Setup screen The speakers are virtually moved to the desired distance. (P50 6) When the values of center speaker and front speakers increase, they are virtually moved forward. When the values of rear speakers and subwoofer DTA Setup screen increase, they are virtually moved backward. -
Page 29: Dvd Setup
Setup Menu DVD Setup You can set up the DVD play. Displaying the DVD SETUP 1 screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. DVD SETUP 3 Calls the Sound Effects Menu. (see page 76) 4 Calls the Setup Menu. -
Page 30: Language Setup
Setup Menu Language Setup Language Code Table Abbreviation Select a language you use for the speech and menus. Display the Language Setup screen See <Displaying the DVD SETUP 1 screen> (see page 56) and select a language you wish to use. Audio Language Set 1 Enters a language code. -
Page 31: System Setup
Setup Menu System Setup You can set up the system parameters. Displaying the System 1 screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. System Set Up 3 Calls the Sound Effects Menu. (see page 76) 4 Calls the Setup Menu. -
Page 32: Av Interface
62 English Displaying the AV I/F 2 screen AV I/F 2 screen RGB) Allows the Kenwood’s Navigation System to connect via its interface cable. connect via the AV INPUT1 port. Must be used if no navigation system is connected. (The navigation display is cancelled when the AV source is switched.) -
Page 33: User Interface
Setup Menu User Interface You can set up user interface (IF) parameters. Displaying the User I/F 1 screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. User Interface 3 Calls the Sound Effects Menu. (see page 76) 4 Calls the Setup Menu. -
Page 34: Touch Panel Adjust
Setup Menu Touch Panel Adjust You can adjust the touch panel operations. Display the Touch Panel Adjust screen Touch the center of left lower and right upper Touch when requested. is not shown, touch Touch Prev. to display it. Next 1 Adjusts the volume. -
Page 35: Security Code Setup
Setup Menu Security Code Setup You can set a security code to protect your receiver system against theft. When the Security Code function is activated it can't be released. Note, your Security Code is the 4 digit number entered in your "Car Audio Passport" in this package. Display the Security Code Setup screen Security is not shown, touch... -
Page 36: Tv Setup
Setup Menu TV Setup The TV signal receiving areas can be set. Displaying the TV1 Area Set Up screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. TV Set Up 3 Calls the Sound Effects Menu. (see page 76) 4 Calls the Setup Menu. -
Page 37: Dab Set Up
Setup Menu DAB Set Up The DAB reception can be set. Displaying the DAB Set Up screen 1 Adjusts the volume. 2 Calls the Sound Effects Menu. (see page 76) DAB Set Up 3 Returns to the Control screen of the previous source. -
Page 38: Sensor
Setup Menu Sensor You can set up the optional KPA-SS100 Sensor Box. Displaying the Sensor Box screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous Sensor source. 3 Calls the Sound Effects Menu. (see page 76) 4 Selects menu options. -
Page 39: Sound Effects Menu
Sound Effects Menu Sound Effects Menu You can set up the receiver sound effects. Displaying the Control screen Control screen SCRL TIME Title T 0:05:20 Displaying the Sound Effects Menu screen 1 Adjusts the volume. 2 Calls the Sound Effects Menu. 3 Recalls the previous Sound Effects Menu. -
Page 40: Sfc
Sound Effects Menu You can set up the sound field. Displaying the SFC screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. 3 Calls the Setup Menu. (see page 49) SFC screen 4 Calls the Sound Effects Menu. 5 Sets a sound field. -
Page 41: Equalizer
Sound Effects Menu Equalizer You can set up the equalizer. Displaying the Equalizer screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. Equalizer 3 Calls the Setup Menu. (see page 49) 4 Calls the Sound Effects Menu. Equalizer screen 5 Adjusts the bass boost of the B.M.S power Flat... -
Page 42: Position
Sound Effects Menu Position You can adjust the sound effects according to your listening position. Displaying the Position screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. Position 3 Calls the Setup Menu. (see page 49) 4 Calls the Sound Effects Menu. -
Page 43: Zone Control
Sound Effects Menu Zone Control You can set the front and rear audio source. Displaying the Zone Control screen 1 Adjusts the volume. 2 Returns to the Control screen of the previous source. Zone Control 3 Calls the Setup Menu. (see page 49) 4 Calls the Sound Effects Menu. -
Page 44: Hands-Free Unit Control
Hands-Free Unit Control GSM control You can call the following control screens if the GSM is connected to the system. Displaying the Control screen 1 Displays the Search for Phone Book screen. (See the <Calling by Phone Book>, page 88) Or the telephone 2 Adds a number to the Phone Book. -
Page 45: Calling By Phone Book
Addition to Phone Book AUTO You can add a phone number to the Phone Book. Edit Clear Kenwood Kenwood Return (See the <Editing the Phone Book>, page 90) more than 2 seconds. GSM Control screen. Select a destination you wish to call... -
Page 46: Editing The Phone Book
Select an item you wish to edit The phone number is registered, the Edit Name ("Name Edit") screen appears. Kenwood Edit Name ("Name Edit") screen See the <Calling by Phone Book> (see page 88) and select an item you wish to edit on the Phone Book List screen. -
Page 47: Reading The Sms (Short Message Service) Messages
Hands-Free Unit Control Reading the SMS (Short Creating an SMS (Short Message Service) messages Message Service) message You can display messages received by the You can create a message to be sent by the SMS. SMS. Display the BOX Message List screen BOX Message List screen BOX Message List AUTO... -
Page 48: Before Installation
Before Installation Accessories ...1 ...1 ...1 ...1 ...1 ...1 ...2 2CAUTION The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. 94 English Installation Procedure 1. -
Page 49: Connection
Connect to the terminal that is grounded when either the MUTE telephone rings or during conversation. NOTE To connect the KENWOOD navigation system, consult your navigation manual. External amplifier control cable (Pink / Black) To "EXT.AMP.CONT." terminal of the amplifier having the external amp control function. - Page 50 Connection Connecting the ISO Connector 2CAUTION The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in below.
-
Page 51: Installation
Installation Installation for Monitor/Player Unit Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw Accessory 6 (commercially available) Metal mounting strap (commercially available) Make sure that the unit is installed securely in place. - Page 52 Installation Removing Monitor/Player Unit Removing the Hard Rubber Frame 1. Engage the catch pins on the removal tool 7 and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. 2.
-
Page 53: Glossary
Glossary DVD: Digital Versatile Disc Top menu/menu (DVD) A type of disc which contains recording of audio/video packaged media with high video and audio quality, such as a movie, featuring large recording capacity and digital signal processing capability. VCD: VIDEO CD A type of CD which contains the recording of moving images. - Page 54 Troubleshooting Guide What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. ■ General The power does not turn on. •...
- Page 55 60°C (140°F), the disc will start playing again. Mecha Error The disc player is malfunctioning. ] Eject the disc and try inserting it again. Contact the Kenwood dealer if this indicator continues blinking or the disc cannot be ejected. Disc Error The unplayable discs is inserted.
-
Page 56: Specifications
Specifications Specifications subject to change without notice. Monitor Section TV section Picture size ...6.95 inches wide Color TV Broadcasting system ...PAL/SECAM 154.1(W)×87.1(H)mm Receivable channels: PAL-B/G ...2~12ch, A~H2ch Display system...Transparent TN LCD panel Receivable Drive system ...TFT active matrix system Receivable Number of pixels ...336,960 (480H×234V×RGB) Receivable Effective pixels ...99.99%...
