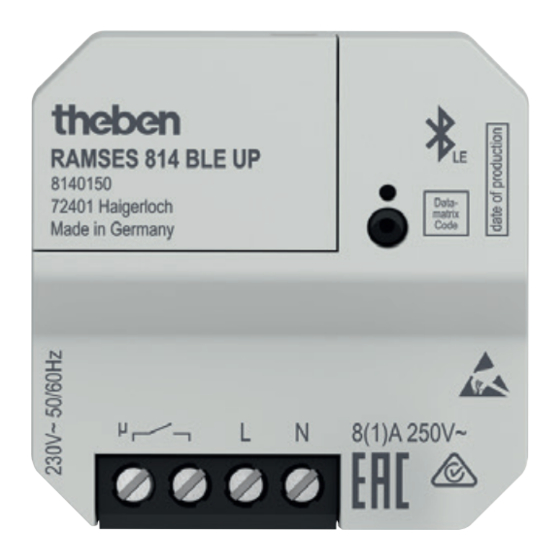

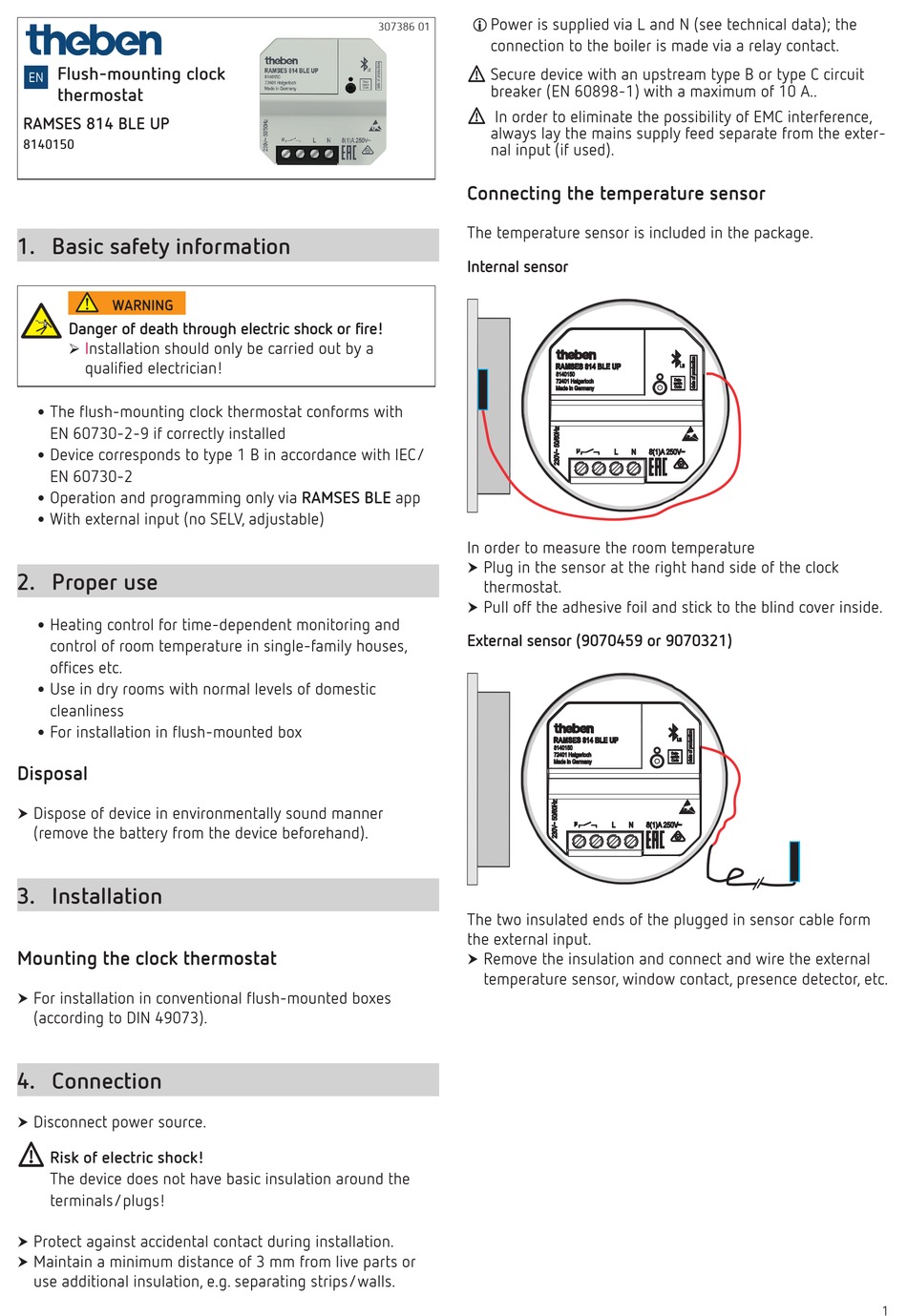

Flush-mounting clock
EN
thermostat
RAMSES 814 BLE UP
8140150
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
•
The flush-mounting clock thermostat conforms with
EN 60730-2-9 if correctly installed
•
Device corresponds to type 1 B in accordance with IEC/
EN 60730-2
•
Operation and programming only via RAMSES BLE app
•
With external input (no SELV, adjustable)
2. Proper use
•
Heating control for time-dependent monitoring and
control of room temperature in single-family houses,
offices etc.
•
Use in dry rooms with normal levels of domestic
cleanliness
•
For installation in flush-mounted box
Disposal
Dispose of device in environmentally sound manner
†
¾
(remove the battery from the device beforehand).
3. Installation
Mounting the clock thermostat
For installation in conventional flush-mounted boxes
†
¾
(according to DIN 49073).
4. Connection
Disconnect power source.
†
¾
!
Risk of electric shock!
The device does not have basic insulation around the
terminals/plugs!
Protect against accidental contact during installation.
†
¾
Maintain a minimum distance of 3 mm from live parts or
†
¾
use additional insulation, e.g. separating strips/walls.
L Power is supplied via L and N (see technical data); the
307386 01
connection to the boiler is made via a relay contact.
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 10 A..
!
In order to eliminate the possibility of EMC interference,
always lay the mains supply feed separate from the exter-
nal input (if used).
Connecting the temperature sensor
The temperature sensor is included in the package.
Internal sensor
In order to measure the room temperature
Plug in the sensor at the right hand side of the clock
†
¾
thermostat.
Pull off the adhesive foil and stick to the blind cover inside.
†
¾
External sensor (9070459 or 9070321)
The two insulated ends of the plugged in sensor cable form
the external input.
Remove the insulation and connect and wire the external
†
¾
temperature sensor, window contact, presence detector, etc.
1
