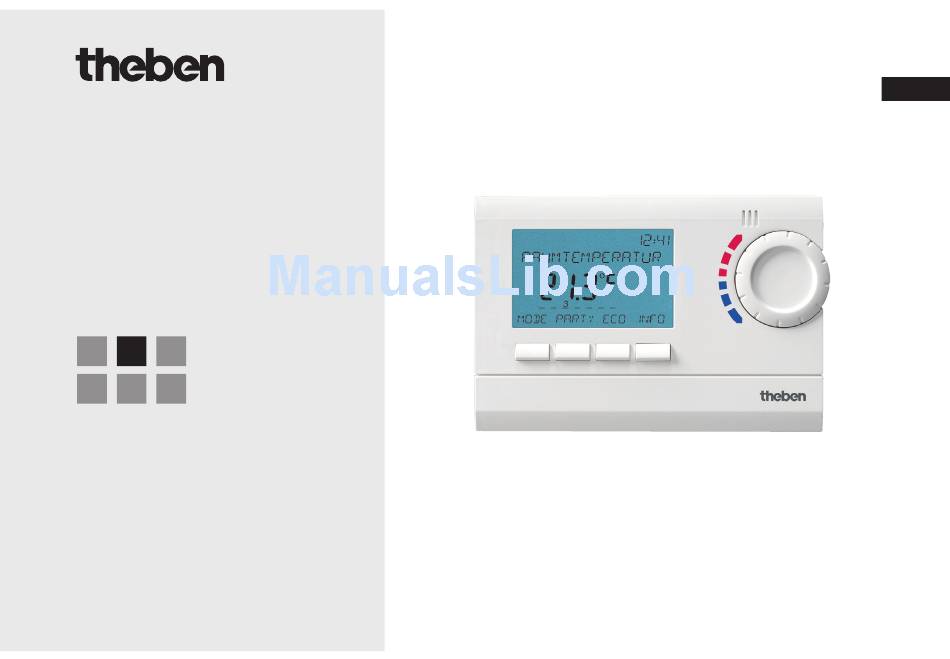

- Page 1 309 358 02 RAMSES RAMSES 811 top2 RAMSES 831 top2 811 9 132 831 9 132 RAMSES 812 top2 RAMSES 832 top2 812 0 132 832 0 132 Installation and operating instructions Room thermostat D GB RAMSES 832 top2...
-
Page 2: Table Of Contents
Contents Reset switching time Change or clear switching time Basic safety instructions View switching time Screen and keys Delete program Operating instructions Set language Connection/installation/uninstallation Set display Initial start-up Set LCD backlight Fit/change batteries Set contrast Reset Set keypad lock Initial start-up Set factory settings User operating level... -
Page 3: Basic Safety Instructions
Basic safety instructions WARNING Danger of death through electric shock or fire! Installation should only be carried out by a qualified electrician! • The device is designed for wall installation • Corresponds to type 1 B in accordance with IEC/EN 60730-1 Designated use •... -
Page 4: Screen And Keys
Screen and keys Operating instructions Display programmed Time display 1. Read text line switching times Flashing text/symbol Temperature display represents query Text line Days of the week from 1–7 2. Make a decision Function keys: – MODE – ECO – PARTY –... -
Page 5: Connection/Installation/Uninstallation
Connection/installation WARNING Warning, danger of death through electric shock! Must be installed by qualified electrician! Disconnect power source. Cover or shield any adjacent live components. Ensure device cannot be switched on! Check power supply is disconnected. ... - Page 6 Installation Fix plate to wall and attach device. Ensure installation height of approx. 1.5 m. Dismantling Insert screwdriver from below, push detent hooks up and open device.
-
Page 7: Fit/Change Batteries

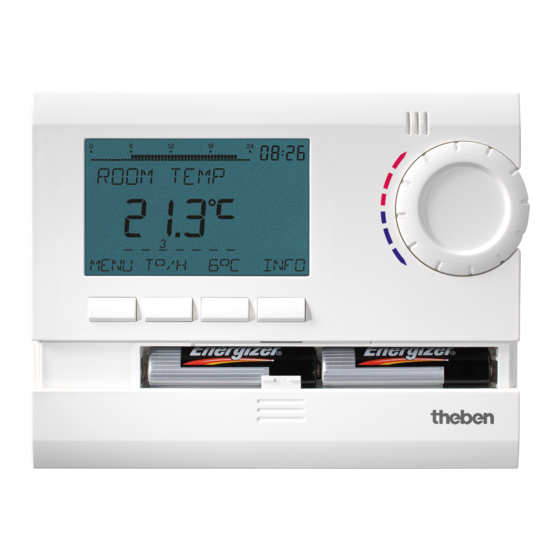

Insert batteries Replace batteries Only use alkaline 1.5 V AA batteries. 1. Battery symbol flashes on display, controller Ensure correct polarity when fitting remains active. The batteries should batteries. be replaced. 2. If the display flashes, the controller is no longer active;... -
Page 8: Initial Start-Up
Initial start-up With mains devices, after connecting RAMSES 811 top2 and RAMSES 831 top2 mains lead or with battery devices, after are battery devices; RAMSES 812 top2 and inserting batteries, press the right key for RAMSES 832 top2 are mains devices. -
Page 9: User Operating Level
& User information Note: The whole screen, except for temperature and time, is faded out after 5 seconds. Press the INFO key to restore screen. This setting can be changed under OPTIONS/DISPLAY. INFO key – View settings The INFO key allows you to access current ROOM TEMP 21.6 °C... -
Page 10: Party Key
PARTY key – Set PARTY function ECO key – Set ECO function Press PARTY key. Press ECO key. The display shows PARTY TARGET TEMP The display shows ECO TARGET TEMP 23.0 °C. 17.0 °C. Provided the whole screen is shown, the Provided the whole screen is shown, the ECO PARTY key flashes to display the set party key flashes to display the set party mode. -
Page 11: Temperature Programs
Temperature programs RAMSES top2 devices have several Use rotary control to make changes preset programs. In standard operation mode, you can temporar- – P1 ily change current setpoint temperature via the – P2 rotary control. It is not stored in the program –... - Page 12 The following applies to all programs: The broken bar in the top left of the display shows the number of menu points in the relevant menu. The flashing cursor indicates the point in the menu that you are currently in. .
-
Page 13: Mode Key - Change/Program Settings
MODE key – Change/program settings Using the MODE key and selecting the SETTINGS menu point brings up the programming and setting mode. Select preset program Press MODE key. MODE P1 ACTIVE ACTIVATE P2 ACTIVATE P3 PERM PERM... -
Page 14: Mode - Settings- Overview
YEAR OPTIMISE DISPLAY COMFORT 1 YEAR PROG P3 MONTH PUMP BACKLIGHT PROTECTION CONTRAST MONTH CLEAR REDUCED PROG INPUT TEMP. FROST HOUR CONTROLLER LOCK PROTECTION SU-WI RULE END HOLIDAY FACTORY SERVICE INFO FROST PROTECTION only RAMSES 811 top2, RAMSES 812 top2... -
Page 15: Change Target Temperature
Change setpoint temperature Set date, time and summer/ winter time Confirm TARGET TEMP by pressing OK. Confirm TIME/DATE by pressing OK. The display shows COMFORT 3. The display shows HOUR. SETTINGS Use + or – keys or Change hours, minutes rotary control to change value. -
Page 16: Set Holiday Program Etc
Set Holiday program Confirm HOLIDAY by pressing OK. SETTINGS The display shows START HOLIDAY. HOLIDAY Select year, month, day etc. in succession. START HOLIDAY Use + or – keys or YEAR rotary control to change value. Confirm each setting by pressing OK. MONTH Finally, enter END HOLIDAY in same way as START HOLIDAY entry. - Page 17 Set temperature preselection Switch off holiday program HOLIDAY is displayed on screen during the programmed holiday period. The controller can only be operated once the holiday mode has FROST REDUCED COMFORT 1 COMFORT 2 ... been switched off. PROTECTION TEMP.
-
Page 18: Programming
Programming Briefly interrupt holiday program and restart Programs P1–P3 are preset The program can be interrupted during the but they can be amended or deleted. holiday period and restarted with the available A maximum of 24 switching times can be set per data. -
Page 19: Reset Switching Time
Reset switching time Confirm by pressing OK. MODE – SETTINGS– PROGRAMMING PROG P1 Confirm PROGRAMMING by pressing OK. The display shows, for example, PROG P1. Confirm PROG P1 by pressing OK. Press NEW key. P1 Mon - Fri P1 Sat-Sun DAILY P1 MONDAY... -
Page 20: Change Or Clear Switching Time
Change or delete switching time PROG P1 Confirm PROGRAMMING by pressing OK. EDIT The display shows, for example, PROG P1. Confirm PROG P1 by pressing OK. CHANGE CLEAR Press EDIT key. The display shows CHANGE or CLEAR. 6:00 6:00 Confirm CHANGE by pressing OK. -
Page 21: View Switching Time
View switching time Delete program Confirm PROGRAMMING by pressing OK. Confirm PROGRAMMING The display shows, for example, PROG P1. by pressing OK. Confirm PROG P1 by pressing OK. Select CLEAR PROG using the + or – keys. Press NEXT key Confirm by pressing OK. -
Page 22: Set Language
Set language Confirm LANGUAGE by pressing OK. 12:00 1 = Standard display: after 5 21.3 °C The display shows, for example, GERMAN. seconds all display content Use + or – except for temperature and keys or rotary control SETTINGS time are faded out. -
Page 23: Set Lcd Backlight
Set LCD backlight Set contrast (only with RAMSES 832 top2) The brightness of the backlighting can be set Screen contrast can be set at different levels. at different levels. Confirm CONTRAST by pressing OK. Confirm LCD BACKLIGHT by pressing OK. The display shows, for example, 8. -
Page 24: Set Keypad Lock
Keypad lock Briefly interrupt keypad lock The keypad lock can be interrupted to allow The device is fitted with a keypad lock that programming etc. The keypad lock is reacti- is switched on or off via software program. vated once changes are completed and the When the keypad lock is switched on, a key symbol appears on the display and pressing a standard operating mode is returned to. -
Page 25: Operating Level For Specialist Personnel
Operating level for specialist personnel Set wall compensation SETTINGS SERVICE If the installation site is not in a good place, this may lead to a variation in temperature between the detect- WALL COMP ed and actual room temperature. This can be corrected OPTIMISE by using wall compensation. -
Page 26: Set Optimisation
Set optimisation thermostat requests the heating requirement earlier as follows: The optimisation function allows you to • Setpoint temperature at 06.00 --> 23 °C achieve a certain room temperature at a • Actual temperature --> 17 °C desired switching point The display shows how •... -
Page 27: Set Pump Protection
Set pump protection Set external input Pump protection is not activated in the factory. The external input on the RAMSES 832 top2 But it can be set in the SERVICE menu. can be configured for various external sensors. CAUTION! Input is active, therefore Confirm PUMP PROTECTION do not use external voltage. - Page 28 The following options are available with the individual sensors/contacts Floor sensor: Mode 1 no options, floor temperature control, floor temperature is shown on screen Mode 2 Floor temperature control, floor temperature level can be set between 20 °C and 30 °C, room temperature is shown on display;...
- Page 29 Phone switch: Temperature selection Select temperature level for controller when the phone switch is switched on. Time selection Select time until phone switch turns off automatically. TELEPHONE SWITCH is shown on screen if the phone switch is switched on. The switched contact must be switched off manually to allow the control to be used again.
-
Page 30: Set Controller
Set controller Use + or – keys or rotary control to implement settings and confirm Controller characteristics of pulse by pressing OK. duration controller With adapted heating systems, a PD controller is noted for its short transient time, minimal overshoot and therefore high control, accuracy. -
Page 31: Set Maintenance Period
Set maintenance period With maintenance, it is a question of a CONTROL "reminder function". PD CONTROL HYST Confirm SERVICE by pressing OK. CONTROL The display shows MONTHS BEFORE NEXT SERVICE. AMPLITUDE HYSTERESIS Use the + or – keys or the rotary control °C °C to enter the value and confirm... -
Page 32: Technical Data
Technical data Contact material: AgSnO Temperature range: +6 °C to +30 °C in increments of 0.2 °C Mains device: Permissible ambient Nominal voltage: 230 –240 V~, +10 %/–15 % temperature: 0 °C ... +55 °C Frequency: 50–60 Hz Control period: 5–30 min.
