Page 1: Table Of Contents

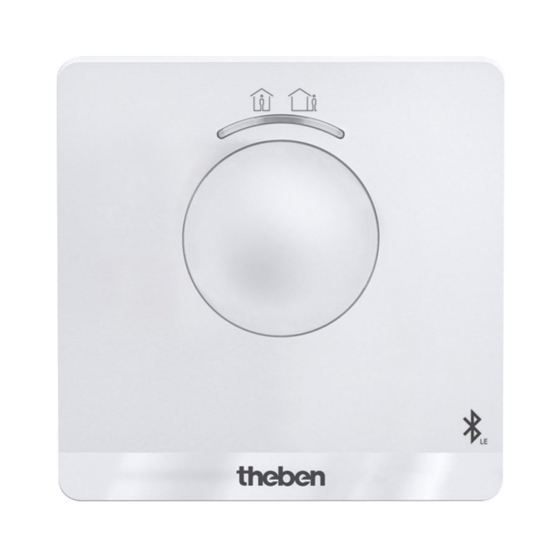

307347 Clock thermostat RAMSES BLE OT 8509150 1. Basic safety information 2. Proper use Disposal 3. Installation Mounting the clock thermostat 4 Dismounting the clock thermostat 4. Connection Terminal layout 5. Manual setting at the clock thermostat... - Page 2 1. Quick selection of comfort or eco mode 2. Pairing 3. Reset 6. Settings and functions – operation via Theben app 9 Is my smartphone BLE capable? RAMSES BLE app Connecting clock thermostat and smartphone (via app) – pairing 10...
-
Page 3: Basic Safety Information
1. Basic safety information NOTE Connection and installation should only be carried ¾ ¾ out by a qualified electrician! Before installation/dismounting, disconnect the ¾ ¾ power supply! • The clock thermostat conforms with EN 60730-2-9 if correctly installed • Corresponds to type 1 STU in accordance with IEC/EN 60730-2-7 •... -
Page 4: Installation
3. Installation Mounting the clock thermostat Electrostatic discharge! Caution, sensitive electronic components! When fitting, observe ESD safety measures (elect- rostatic discharge). Position the clock thermostat on an internal wall, at about eye level. Avoid drafts or heat emission. L For wall mounting... - Page 5 Attach the mounting plate above the wall outlet of the † ¾ OpenTherm line . Engage and wire the circuit board carrier . † ¾ First, hook in the upper part of the clock thermostat on top, †...
-
Page 6: Dismounting The Clock Thermostat
Dismounting the clock thermostat Using a screwdriver, loosen the front panel at the two side † ¾ and bottom openings . Then release the catches on the left and right and remove † ¾ the upper part of the housing . Loosen the plug-in connectors and press the circuit board †... -
Page 7: Terminal Layout
Terminal layout 1 OT 2 OT 3 ext. input 4 ext. input 5. Manual setting at the clock thermostat Button with LED display for setting – Comfort mode (green LED on) – ECO mode (green LED off) By using the button, the following functions can be set:... -
Page 8: Quick Selection Of Comfort Or Eco Mode
2. Pairing Press the button for 3 s † ¾ ▻ RAMSES BLE OT can be connected with a smartphone/ tablet (paired) for 5 min. (green LED flashes). If pairing is successful, the LED goes out. Delete pairing Press the button for 6 s †... -
Page 9: Settings And Functions - Operation Via Theben App
6. Settings and functions – operation via Theben app Is my smartphone BLE capable? Download Bluescan app for Android and iOS † ¾ The app can be used to check whether a device is BLE capa- ble or not. RAMSES BLE app... -
Page 10: Connecting Clock Thermostat And Smartphone (Via App) - Pairing
Operating modes: Programming of – Programs P1 – P3 switching times – Comfort, reduction, frost Quick selection Quick selection Comfort mode* Eco mode* *until the next switching time Connecting clock thermostat and smart- phone (via app) – pairing The clock thermostats can be programmed using an app (from Android 4.3, iOS 5) on a mobile end device. - Page 11 Open the app † ¾ ▻ Window with offline mode/assign appears Press the button on RAMSES BLE OT for 3 s (green LED at † ¾ RAMSES BLE OT flashes) Press Assign † ¾ ▻ Device list appears Select device and press ok †...
-
Page 12: Program
Program In the program menu, • programs P1 – P3 can be changed • a new program, or • a holiday program can be created, or • a domestic water program, in case of a heating system using domestic water •... - Page 13 Creating a holiday program In order to create a holiday program and activate it, slide the controller to "Activation" † ¾ After a holiday program has been created via the app, the clock thermostat receives the following information: – active/not active –...
-
Page 14: Info
Info L The information in this submenu vary depending on the connected boiler. With Info, temperature, flame, set flow etc. can be queried. The functions change, depending on the connected heating system. -
Page 15: Settings
Settings Press Settings † ¾ ▻ A window will open L The functions in this submenu have to be set by the quali- fied electrician. In the settings, language, temperature (comfort, eco, frost), wall compensation, optimisation, chimney sweep function, etc. can be set. - Page 16 1. Setting the wall compensation If the installation location is unfavourable, temperature deviations between detected and actual room temperature might occur. This difference can be corrected by using the wall compensation. 2. Setting the controller The clock thermostat can be used – depending on the set heating –...
- Page 17 When connected to a modulating heating • In the room-dependent version, the room set tempera- ture is used for direct control. P band (0.5 K–2.5 K) control range I share (1–20) integral share in minutes: – Integral share small → quick adjustment of the control deviation –...
- Page 18 End point Base point Outside temperature Setting the heating curve With weather-dependent control, the base point and end point of the curve can be set. Setting range Factory settings Base point 10–40 °C +25 °C End point 25–90 °C +60 °C Setting parameters for the heating system Heating type Flow/return...
- Page 19 Heating HVAC base HVAC end P -adjust- Frost type point point ment/ line reduction 90 / 70 30 °C 85 °C 15 °C 3 °C system 70 / 50 25 °C 75 °C 15 °C 3 °C system 40 / 30 25 °C 45 °C 15 °C...
- Page 20 Setting the room influence With weather-dependent control, the flow temperature can be adjusted if there is a large divergence between the room temperature and the set temperature. Offset feed temperature = ∆ T Set room influence = PI Setpoint value of room temperature R set Actual value of room temperature R act...
- Page 21 Error display at RAMSES BLE OT L If the external input is set to "floor" or "room temperature", an appropriate temperature sensor has to be connected. If this sen- sor is missing, the red LED flashes at one second intervals.
- Page 22 4. Setting the optimisation The optimisation function allows you to achieve a certain room temperature at a desired switching point. The display shows how many minutes earlier the heating starts. This time applies per K of temperature difference between actual tem- perature and desired set temperature.
- Page 23 With a set optimisation of 5 min/K, the thermostat sends the heating request earlier, as follows: Set temperature at 06.00 a.m. 23 °C Actual temperature 17 °C i.e. Delta T = 6 K 6 K * 5 min/K = 30 min The controller sends the heating start 30 min.
- Page 24 8. PIN This function can be used to assign a new PIN. • The factory setting for the PIN is 0. • New PIN can be entered (1–6 digits). • In case of Delete pairing (2nd pairing), the PIN is set to •...
-
Page 25: Technical Data
Type 1 STU in accordance with EN 60730-1 Rated impulse voltage: 0.33 kV Pollution degree: Software Class A 8. Contact Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Phone +49 7474 692-0 Fax +49 7474 692-150 Hotline Phone +49 7474 692-369 hotline@theben.de...
