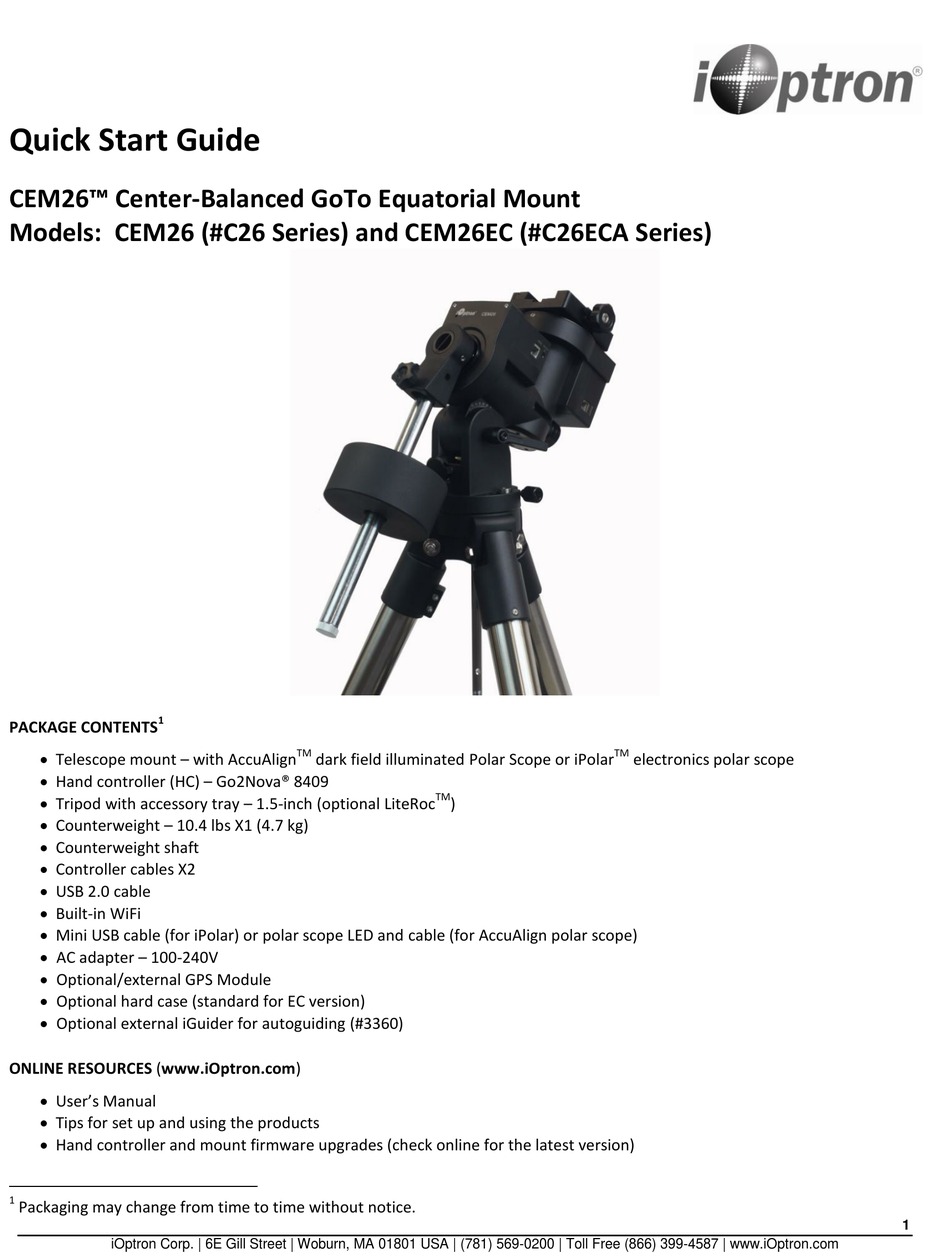

Quick Start Guide

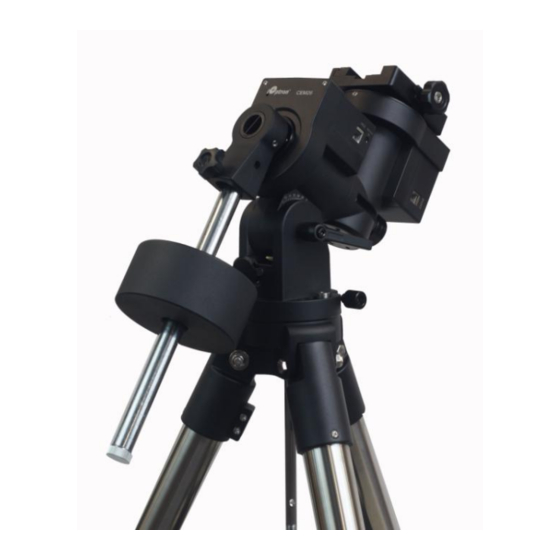

CEM26™ Center-Balanced GoTo Equatorial Mount
Models: CEM26 (#C26 Series) and CEM26EC (#C26ECA Series)
1
PACKAGE CONTENTS
 Telescope mount – with AccuAlign
 Hand controller (HC) – Go2Nova® 8409
 Tripod with accessory tray – 1.5-inch (optional LiteRoc
 Counterweight – 10.4 lbs X1 (4.7 kg)
 Counterweight shaft
 Controller cables X2
 USB 2.0 cable
 Built-in WiFi
 Mini USB cable (for iPolar) or polar scope LED and cable (for AccuAlign polar scope)
 AC adapter – 100-240V
 Optional/external GPS Module
 Optional hard case (standard for EC version)
 Optional external iGuider for autoguiding (#3360)
ONLINE RESOURCES (www.iOptron.com)
 User's Manual
 Tips for set up and using the products
 Hand controller and mount firmware upgrades (check online for the latest version)
1
Packaging may change from time to time without notice.
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com
TM
dark field illuminated Polar Scope or iPolar
TM
)
TM
electronics polar scope
1

Advertisement

loading

Related Manuals for iOptron C26 Series

Summary of Contents for iOptron C26 Series

  • Page 1  Hand controller and mount firmware upgrades (check online for the latest version) Packaging may change from time to time without notice. iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com...
  • Page 2 Attach mount head: Retract the 2x Azimuth (Azi) Adjustment Screws from both sides to leave ample iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com...
  • Page 3 Saddle Locking Knob and slide the telescope dovetail plate into the saddle. Tighten the Saddle Locking Knob. Insert CW Shaft into CW Mounting House iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com...
  • Page 4 AccuAlign optical polar scope. Please refer to CEM26 User’s Manual for detailed polar alignment procedures. iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com...
  • Page 5 Polaris in the location on the Polar Scope Dial iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | Toll Free (866) 399-4587 | www.iOptron.com...

  • Page 6: Ioptron Two Year Telescope, Mount, And Controller Warranty

    A. iOptron warrants your telescope, mount, or controller to be free from defects in materials and workmanship for two years. iOptron will repair or replace such product or part which, upon inspection by iOptron, is found to be defective in materials or workmanship. As a condition to the obligation of iOptron to repair or replace such product, the product must be returned to iOptron together with proof-of- purchase satisfactory to iOptron.
