NOTE: When the instruction says rotate the mount in RA direction, it means you need to HOLD the mount head, fully disengage the
Gear Switch, rotate the mount head, and engage the Gear Switch again.
NOTE: This instruction is released upon customer request and is for reference only. It is at your own risk to perform the task listed
below. iOptron assumes no liability at all.

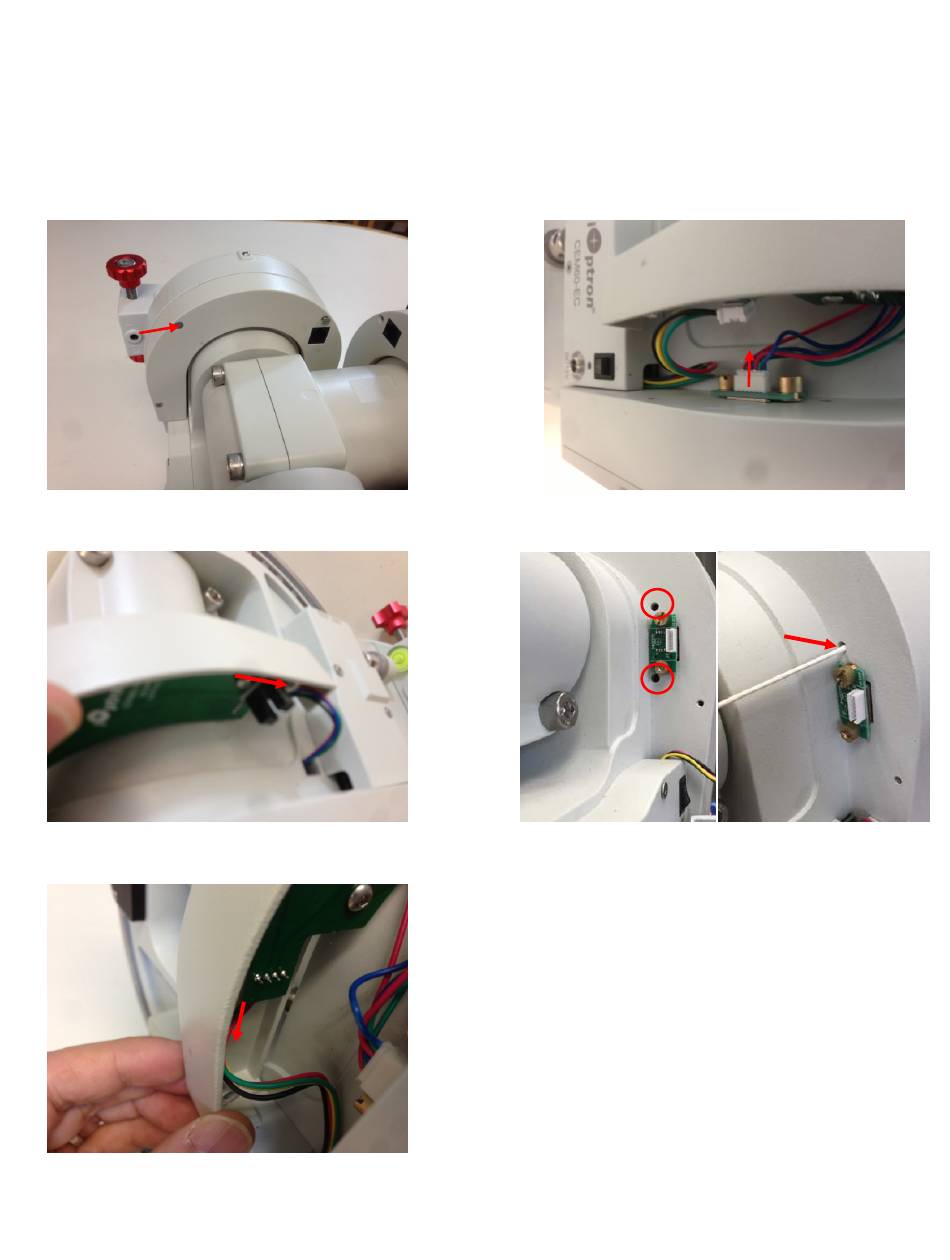

Rotate the mount head to sideway. Remove four screws that
hold the RA board cover.
Slightly separate the RA board case from the RA worm wheel
case. Unplug the motor control cable.
Unplug the main board connecting cable.

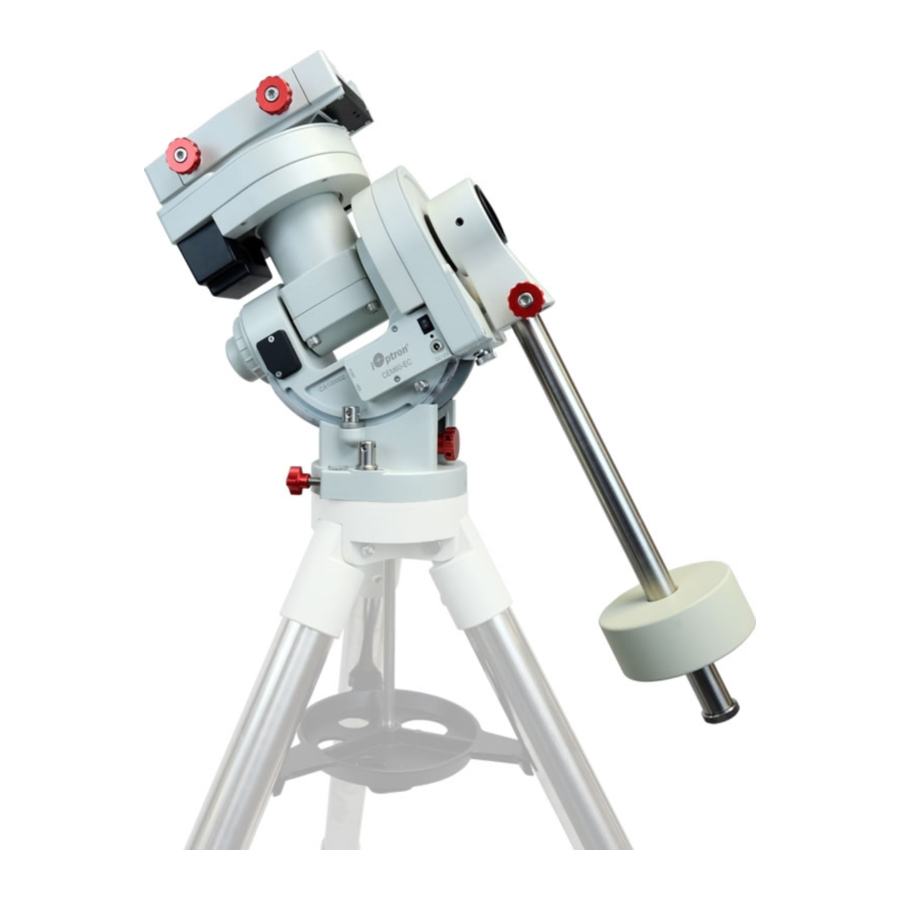

CEM60EC High Precision Optical Encoder Wheel Cleaning
May 10, 2016
Unplug the high precision encoder cable. Now you can
remove the RA board with the cover from the mount.
There are two small holes above and below optical encoder
reader board. Insert a small Q‐tip with alcohol into the holes
until you feel it touches the wheel. Release the Gear Switch
and rotate the RA by hand. Do not push the Q‐tip in with
force. You are clean a delicate, micron size encoder tics!!!
Repeat the process a few times through both holes.
Warning: Do not touch the encoder reader board. NEVER
EVER try to adjust two brass screws! It will mess up the
alignment between the reader and encoder wheel and only
factory can redo the realignment.
