Supero SC847J SAS2 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®

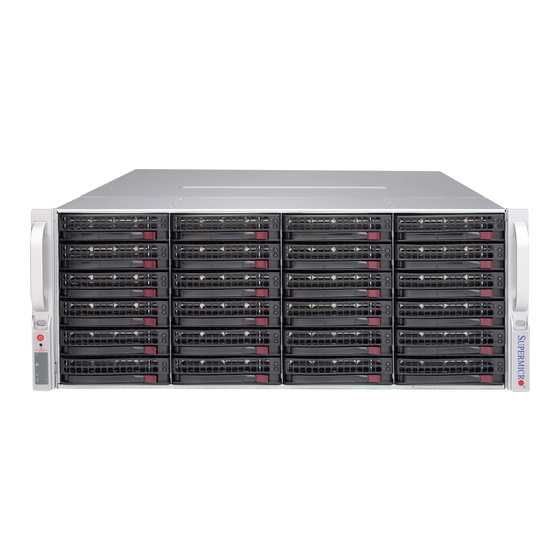

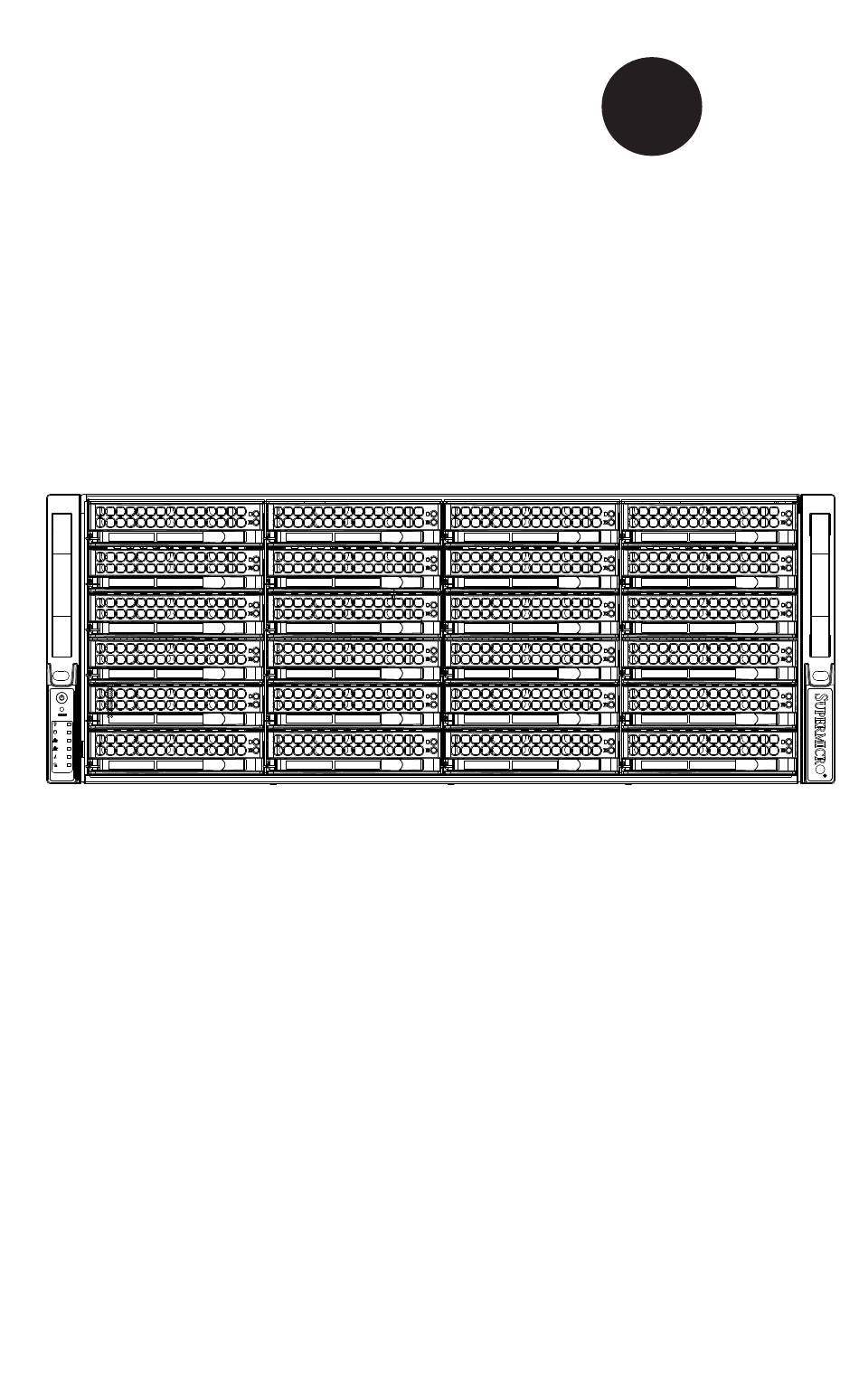

SC847J SAS2 CHASSIS SERIES
SC847E16-RJBOD1
SC847E26-RJBOD1
SC847E16-R1K28JBOD
SC847E26-R1K28JBOD
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supero SC847J SAS2 Series

Summary of Contents for Supero SC847J SAS2 Series

  • Page 1 UPER ® SC847J SAS2 CHASSIS SERIES SC847E16-RJBOD1 SC847E26-RJBOD1 SC847E16-R1K28JBOD SC847E26-R1K28JBOD USER’S MANUAL 1.0a...
  • Page 2 SC847J SAS2 Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: Contacting Supermicro

    Preface Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 4 SC847J SAS2 Chassis Manual Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC847J SAS2 chassis. In- stallation and maintenance should be performed by experienced technicians only. This manual lists compatible parts available when this document was published.
  • Page 5 Preface Manual Organization Chapter 1: Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC847J SAS2 chassis. This chapter also includes contact information. Chapter 2: Standardized Warning Statements for AC/DC Systems This chapter lists warnings, precautions, and system safety.
  • Page 6 SC847J SAS2 Chassis Manual This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes are listed. Refer to our website for the latest compatible backplane information. Appendix A: Cables and Hardware This section provides information on cabling, and other hardware which is compat- ible with your chassis.

  • Page 7: Table Of Contents

    Preface Table of Contents Contacting Supermicro ..................iii Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Where to get Replacement Components ............1-2 Returning Merchandise for Service..............1-3 Chapter 2 Standardized Warning Statements for AC/DC Systems About Standardized Warning Statements ............2-1 Warning Definition ...................
  • Page 8 SC847J SAS2 Chassis Manual Chapter 5 Rack Installation Overview ......................5-1 Unpacking the System ..................5-1 Preparing for Setup ..................5-1 Choosing a Setup Location ................5-1 Warnings and Precautions ................5-2 Rack Precautions .................... 5-2 General Server Precautions ................5-2 Rack Mounting Considerations ...............

  • Page 9: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview Optimized for enterprise-level heavy-capacity storage applications, Supermicro's SC847 SAS2 JBOD chassis features up to 45x (24 front + 21 rear) 3.5" hot-swap HDD bays. The SC847 SAS2 server chassis offers the option to reduce the num- ber of HDDs to 36 (24 front + 12 rear) allowing for an optional motherboard to be installed.

  • Page 10: Where To Get Replacement Components

    SC847J SAS2 Chassis Manual Where to get Replacement Components Though not frequently, you may need replacement parts for your system. To en- sure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors/ System Integrators/Resellers.

  • Page 11: Returning Merchandise For Service

    Chapter 1: Introduction Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
  • Page 12 SC847J SAS2 Chassis Manual Notes...

  • Page 13: Chapter 2 Standardized Warning Statements For Ac/Dc Systems

    Chapter 2: Warning Statements for AC/DC Systems Chapter 2 Standardized Warning Statements for AC/DC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 14 SC847J SAS2 Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 15 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 16: Installation Instructions

    SC847J SAS2 Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 17: Circuit Breaker

    Chapter 2: Warning Statements for AC/DC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 60VDC, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が60VDC、...

  • Page 18: Power Disconnection Warning

    SC847J SAS2 Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 60V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 60V, 20A.
  • Page 19 Chapter 2: Warning Statements for AC/DC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 20: Equipment Installation

    SC847J SAS2 Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 21: Restricted Area

    Chapter 2: Warning Statements for AC/DC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 22: Battery Handling

    SC847J SAS2 Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬ ‫محظورة‬...
  • Page 23 Chapter 2: Warning Statements for AC/DC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 24: Redundant Power Supplies

    SC847J SAS2 Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 25: Backplane Voltage

    Chapter 2: Warning Statements for AC/DC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 26: Comply With Local And National Electrical Codes

    SC847J SAS2 Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 27: Product Disposal

    Chapter 2: Warning Statements for AC/DC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 28: Hot Swap Fan Warning

    SC847J SAS2 Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 29 Chapter 2: Warning Statements for AC/DC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 30: Dc Power Supply

    SC847J SAS2 Manual DC Power Supply Warning! When stranded wiring is required, use approved wiring terminations, such as closedloop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor. 警告...
  • Page 31 Chapter 2: Warning Statements for AC/DC Systems Attention Quand des fils torsadés sont nécessaires, utiliser des douilles terminales homologuées telles que celles à circuit fermé ou du type à plage ouverte avec cosses rebroussées. Ces douilles terminales doivent être de la taille qui convient aux fils et doivent être refermées sur la gaine isolante et sur le conducteur.

  • Page 32: Dc Power Disconnection

    SC847J SAS2 Manual DC Power Disconnection Warning! Before performing any of the following procedures, ensure that power is removed from the DC circuit. 警告 次の手順を開始する前に、 DC回路から電源が切断されているこ とを確認してく ださい。 警告 進行以下任一操作程序前，請確保直流電路已斷電。 警告 请在进行以下任一操作程序前，确保直流电路的电源已经断开。 Warnung Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß die Gleichstromschaltung keinen Strom erhält.

  • Page 33: Hazardous Voltage Or Energy Present On Dc Power Terminals

    Chapter 2: Warning Statements for AC/DC Systems 주의! 다음 절차들을 수행하기 전에, 전원이 DC회로로부터 제거되었는지를 확인해 주십시오. Waarshuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen.
  • Page 34 SC847J SAS2 Manual ¡Advertencia! Puede haber energía o voltaje peligrosos en los terminales eléctricos de CC. Reemplace siempre la cubierta cuando no estén utilizándose los terminales. Asegúrese de que no haya acceso a conductores descubiertos cuando la cubierta esté colocada. Attention Le voltage ou l'énergie électrique des terminaux à...

  • Page 35: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 36: Control Panel Buttons

    SC847J SAS2 Chassis Manual Control Panel Buttons There are two push-buttons located on the left handle of the chassis. These are (in order from top to bottom) a power on/off button and a reset button. Power: The main power button is used to apply or remove power from the power supply to the server system.
  • Page 37 Chapter 3: System Interface NIC1: Indicates network activity on GLAN1 when flashing. NIC2: Indicates network activity on GLAN2 when flashing. Overheat/Fan Fail: When this LED flashes, it indicates a fan failure. When con- tinuously on (not flashing) it indicates an overheat condition, which may be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm.

  • Page 38: Drive Carrier Leds

    SC847J SAS2 Chassis Manual Drive Carrier LEDs The chassis includes externally accessible SAS/SATA drives. Each drive carrier displays two status LEDs on the front of the carrier. LED Color State Status Green Solid On SAS/SATA drive installed Activity LED Green Blinking I/O activity Failed drive for SAS/SATA with...

  • Page 39: Chapter 4 Chassis Setup And Maintenance

    Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver.
  • Page 40 SC847J SAS2 Chassis Manual...

  • Page 41: Installing Removable Hard Drives

    Chapter 4: Chassis Setup and Maintenance Installing Removable Hard Drives Figure 4-2: Removing a Hard Drive Carrier The SC847J SAS2 chassis has hot-swappable hard drives which may be removed from the chassis without powering down the system. Removing Hard Drive Carriers from the Chassis 1.
  • Page 42 SC847J SAS2 Chassis Manual Dummy Drive Drive Carrier Figure 4-3: Chassis Drive Carrier The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help to promote proper airflow for the drive bays.
  • Page 43 Chapter 4: Chassis Setup and Maintenance SAS/SATA Hard Drive Drive Carrier Figure 4-5: Installing the Hard Drive into the Carrier 1. Slide the hard drive into the carrier with the printed circuit board side facing down. 2. Carefully align the mounting holes in both the drive carrier and the hard drive. 3.

  • Page 44: System Fans

    SC847J SAS2 Chassis Manual System Fans Seven hot-swappable, heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis thereby lowering the chassis internal tempera- ture. Release Tab Air Direction Indicator Figure 4-7: System Fan Replacing a System Fan 1.
  • Page 45 Chapter 4: Chassis Setup and Maintenance Figure 4-8: Placing the System Fan...

  • Page 46: Power Supply

    SC847J SAS2 Chassis Manual Power Supply The SC847J SAS2 chassis has a 1280 or 1400 Watt high-efficiency redundant power supply. This power supply is auto-switching capable. This enables it to au- tomatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off.
  • Page 47 Chapter 4: Chassis Setup and Maintenance...
  • Page 48 SC847J SAS2 Chassis Manual Notes 4-10...

  • Page 49: Chapter 5 Rack Installation

    Chapter 5: Rack Installation Chapter 5 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimal amount of time. Unpacking the System You should inspect the box which the chassis was shipped in and note if it was damaged in any way.

  • Page 50: Warnings And Precautions

    SC847J SAS2 Chassis Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installations, stabilizers should be attached to the rack. •...

  • Page 51: Rack Mounting Considerations

    Chapter 5: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (TMRA).

  • Page 52: Rack Mounting Instructions

    SC847J SAS2 Chassis Manual Rack Mounting Instructions This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 53: Locking Tabs

    Chapter 5: Rack Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 54: Installing The Inner Rails On The Chassis

    SC847J SAS2 Chassis Manual Inner Rails Figure 5-3: Installing the Inner Rails Figure 5-4: Inner Rails Installed on the Chassis Installing The Inner Rails on the Chassis Installing the Inner Rails 1. Confirm that the left and right inner rails have been correctly identified. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 55: Installing The Outer Rails On The Rack

    Chapter 5: Rack Installation L-min=676.00(26.61")(outer rail) 21D01 Figure 5-5: Extending and Releasing the Outer Rails Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2.

  • Page 56: Standard Chassis Installation

    SC847J SAS2 Chassis Manual Ball-Bearing Shuttle Figure 5-6: Installing into a Rack Note: figures are for illustrative purposes only. Always install servers into racks from the bottom up. Standard Chassis Installation Installing the Chassis into a Rack 1. Confirm that the inner rails are properly installed on the chassis. 2.

  • Page 57: Optional Quick Installation Method

    Chapter 5: Rack Installation Optional Quick Installation Method The following quick installation method may be used to install the chassis onto a rack. Installing the Chassis into a Rack 1. Install the whole rail assembly onto the rack as described on page 5-7. 2.
  • Page 58 SC847J SAS2 Chassis Manual Notes 5-10...

  • Page 59: Appendix A Sc847J Sas2 Cables And Hardware

    Appendix A: Chassis Cables Appendix A SC847J SAS2 Cables and Hardware A-1 Overview This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com.
  • Page 60 SC847J SAS2 Chassis Manual A-3 Compatible Cables These cables are compatible with the SC847J SAS2 chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables.
  • Page 61 Appendix A: Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards.
  • Page 62 SC847J SAS2 Chassis Manual A-4 Chassis Screws The accessory box includes all the screws needed to set up your chassis. This section lists and describes the most common screws used. Your chassis may not require all the parts listed. HARD DRIVE Flat head Pan head 6-32 x 5 mm...

  • Page 63: Appendix B Sc847J Sas2 Power Supply Specifications

    Appendix B: Power Supply Specifications Appendix B SC847J SAS2 Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC847E16-RJBOD1, SC847E26-RJBOD1 1400W MFR Part # PWS-1K41P-1R 1100W: 100 - 140V, 50 - 60Hz, 9.5 - 13.5 Amp AC Input 1400W: 180 - 240V, 50 - 60Hz, 7.0 - 9.5 Amp DC Output...
  • Page 64 SC847J SAS2 Chassis Manual Notes...

  • Page 65: Appendix C Bpn-Sas2-846El Backplane Specifications

    Appendix C: BPN-SAS2-846EL Backplane Specifications Appendix C BPN-SAS2-846EL Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 66 SC847J SAS2 Chassis Manual C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Introduction to the BPN-SAS2-846EL Backplane The BPN-SAS2-846EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.
  • Page 67 Appendix C: BPN-SAS2-846EL Backplane Specifications C-5 Front Connectors BPN-SAS2-846EL2 R4635 R4631 FAN_MONITOR_DISABLE BUZZER_ENB1 REV 1.10 FANFAIL1 OVERHEATFAIL1 MH14 DESIGNED IN USA FANFAIL_LED_DISABLE ACTLED1 SEC_J1 SEC_J0 SEC_J2 PRI_J0 PRI_J2 PRI_J1 BUZZER1 MH12 L147 EC17 P_ICE_3V3 P_ICE_GND C367 C872 BAR CODE BCA338 C867 C865 C151...
  • Page 68 SC847J SAS2 Chassis Manual C-6 Front Connector and Pin Definitions 1. Primary I C Connector C Connector Pin Definitions The I C connector is used to monitor the power Pin# Definition supply status and to control the fans. See the Data table on the right for pin definitions.
  • Page 69 Appendix C: BPN-SAS2-846EL Backplane Specifications 6. Fan Connectors Fan Connectors The 3-pin connectors, designated FAN1, Pin# Definition through FAN3, provide power to the fans. Ground See the table on the right for pin defini- +12V tions. Tachometer 7. - 13. SAS Connectors The primary and secondary sets of SAS connectors provide expander features in- cluding cascading and failover.
  • Page 70 SC847J SAS2 Chassis Manual C-7 Front Jumper Locations and Settings FANFAIL_LED_DISABLE BUZZER_ENB1 ACTLED1 BPN-SAS2-846EL2 R4631 R4635 FAN_MONITOR_DISABLE BUZZER_ENB1 REV 1.10 OVERHEATFAIL1 MH14 FANFAIL1 DESIGNED IN USA FANFAIL_LED_DISABLE ACTLED1 SEC_J1 SEC_J2 SEC_J0 PRI_J0 PRI_J2 PRI_J1 BUZZER1 MH12 FAN_MONITOR_DISABLE L147 EC17 P_ICE_3V3 P_ICE_GND SEC_MODE2 C367...
  • Page 71 Appendix C: BPN-SAS2-846EL Backplane Specifications General Jumper Settings Jumper Jumper Settings Note Factory Setting PRI_MODE1 and 2 Pins 2-3 Do not change Factory Setting SEC_MODE1 and 2 Pins 2-3 Do not change Debug, SMC internal use only. EXPDBG1 and 2 No jumper required (EXPDBG2 not present on BPN-SAS2-846EL2)
  • Page 72 SC847J SAS2 Chassis Manual C-8 Rear Connectors and LED Indicators SAS #23 SAS #5 SAS #17 SAS #11 SAS #4 SAS #22 SAS #16 SAS #10 SAS #21 SAS #9 SAS #15 SAS #3 SAS #14 SAS #20 SAS #2 SAS #8 SAS #13 SAS #7...
  • Page 73 Appendix C: BPN-SAS2-846EL Backplane Specifications Rear LED Indicators Rear Connector Hard Drive Activity LED Failure LED SAS #0 ACT #0 FAIL #0 SAS #1 ACT #1 FAIL #1 SAS #2 ACT #2 FAIL #2 SAS #3 ACT #3 FAIL #3 SAS #4 ACT #4 FAIL #4...
  • Page 74 Appendix C: BPN-SAS2-846EL Backplane Specifications C-9 Dual Port and Cascading Configurations Single Ports BPN-SAS2-846EL1 backplanes have a single-port expander that accesses all hard drives and supports cascading. Dual Ports BPN-SAS2-846EL2 backplanes have dual-port expanders that access all the hard drives. These dual-port expanders support cascading, failover, and multipath. From HBA From HBA or higher...
  • Page 75 SC847J SAS2 Chassis Manual C-10 Failover The BPN-SAS2-846EL2 backplane has two expanders which allow effective failover. SAS HBA Single Host Bus Adapter In a single host bus configuration, the BPN-SAS2-846EL2 R4635 R4631 BUZZER_ENB1 FAN_MONITOR_DISABLE REV 1.10 FANFAIL1 OVERHEATFAIL1 MH14 DESIGNED IN USA ACTLED1 SEC_J1 SEC_J0...
  • Page 76 Appendix C: BPN-SAS2-846EL Backplane Specifications C-11 Chassis Power Card and Support Cables Chassis Power Card In a cascaded configuration, the first chassis includes a motherboard and at least one host bus adapter. Other servers in this enclosed system, include a power card. This section describes the supported power card for the BPN-SAS2-846EL series backplanes.
  • Page 77 SC847J SAS2 Chassis Manual Connecting an Internal Host Bus Adapter to the Backplane The following section lists the most common cables used to connect the host bus adapter to the backplane. BPN-SAS2-846EL2 R4635 R4631 BUZZER_ENB1 FAN_MONITOR_DISABLE REV 1.10 FANFAIL1 OVERHEATFAIL1 MH14 DESIGNED IN USA ACTLED1...
  • Page 78 Appendix C: BPN-SAS2-846EL Backplane Specifications Cable Name: iPass (Mini-SAS) to iPass (Mini-SAS) Part #: CBL-0108L-02 Length: 39 cm (15 inches) Part #: CBL-0109L-02 Length: 22 cm (9 inches) Part #: CBL-0110L-02 Length: 18 cm (7 inches) Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36 pins) at each end.
  • Page 79 SC847J SAS2 Chassis Manual Connecting an External Host Bus Adapter to the Backplane This backplane supports external Host Bus Adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD configura- tion system to connect to the other system that has a HBA. Single External Host Bus Adapter BPN-SAS2-846EL2 R4635...
  • Page 80 Appendix C: BPN-SAS2-846EL Backplane Specifications Supported External HBA to Backplane Cable Use the following cable if your external HBA has an InfiniBand connector. Figure C-10: External Cable (CBL-0166L) Cable Name: SAS EL2/EL1 Cascading Cable (External), 68cm Part #: CBL-0166L (SFF-8088 1x to SFF-8088 x1) Ports: Single or Dual Placement: External cable Description: External cascading cable.
  • Page 81 SC847J SAS2 Chassis Manual Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables. BPN-SAS2-846EL2 R4635 R4631 BUZZER_ENB1 FAN_MONITOR_DISABLE REV 1.10 FANFAIL1 OVERHEATFAIL1 MH14...
  • Page 82 Appendix C: BPN-SAS2-846EL Backplane Specifications Single HBA Configuration Cables Single Port Cable Assembly Figure C-12: Single Port Internal Cable (CBL-0167L) Cable Name: SAS EL2/EL1 Backplane Cable (Internal) with 2-port Cascading Cable, 68 cm Part #: CBL-0167L (SFF-8087 to SFF-8088 x1) Ports: Single Placement: Internal cable Description: Internal cable.
  • Page 83 SC847J SAS2 Chassis Manual Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from dual HBAs. These connections use CBL-0168L internal cables and CBL-0166L external cables. BPN-SAS2-846EL2 R4635 R4631 BUZZER_ENB1 FAN_MONITOR_DISABLE REV 1.10 OVERHEATFAIL1 FANFAIL1 MH14...
  • Page 84 Appendix C: BPN-SAS2-846EL Backplane Specifications Dual HBA Configuration Cables Dual Port Cable Assembly Figure C-15: Dual Port Internal Cable (CBL-0168L) Cable Name: SAS Dual-port Cable Assembly, 68/76cm Part #: CBL-0168L Placement: Internal cable Ports: Dual Description: Internal cascading cable. Connects the backplane to the Host Bus Adapter (HBA) or external port.
  • Page 85 SC847J SAS2 Chassis Manual C-12 Supported Cascading Configurations Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time. The first backplane in a cascaded system requires a motherboard and an HBA. Other servers require a power control card with no motherboard and no HBA.
  • Page 86 Appendix C: BPN-SAS2-846EL Backplane Specifications Dual SAS HBA and Cascaded Configuration BPN-SAS2-846EL2 FAN_MONITOR_DISABLE R4635 R4631 REV 1.10 BUZZER_ENB1 FANFAIL1 OVERHEATFAIL1 MH14 DESIGNED IN USA FANFAIL_LED_DISABLE ACTLED1 SEC_J2 SEC_J1 SEC_J0 PRI_J0 PRI_J2 PRI_J1 BUZZER1 MH12 L147 EC17 P_ICE_3V3 P_ICE_GND C367 C872 BAR CODE BCA338 C867...
  • Page 87 SC847J SAS2 Chassis Manual Notes C-24...

  • Page 88: Appendix D Bpn-Sas2-847El Backplane Specifications

    Appendix D: BPN-SAS2-847EL Backplane Specifications Appendix D BPN-SAS2-847EL Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
  • Page 89 SC847J Chassis Manual D-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. D-4 Introduction to the BPN-SAS2-847EL Backplane The BPN-SAS2-847EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.
  • Page 90 Appendix D: BPN-SAS2-847EL Backplane Specifications D-5 Front Connectors, Jumpers and LEDs Figure D-1: Front Connectors Front Connectors 1. Primary I C connector: PRI_I2C1 2. Power connectors: PWR1, PWR2, PWR3, PWR4, PWR5, and PWR6 3. Primary expander chip 4. Secondary expander chip (Not available in EL1 backplane) 5.
  • Page 91 SC847J Chassis Manual D-6 Front Connector and Pin Definitions 1. Primary I C Connector C Connector Pin Definitions The I C connector is used to monitor the power Pin# Definition supply status and to control the fans. See the Data table on the right for pin definitions.
  • Page 92 Appendix D: BPN-SAS2-847EL Backplane Specifications 6. Fan Connectors Fan Connectors The 4-pin connectors, designated FAN1, Pin# Definition through FAN4, provide power to the fans. Ground See the table on the right for pin defini- +12V tions. Tachometer Empty 7. - 10. SAS Ports The primary and secondary sets of SAS ports provide expander features including cascading and failover.
  • Page 93 SC847J Chassis Manual D-7 Front Jumper Locations and Pin Definitions PRI_MODE1 PRI_MODE2 EXPDBG1 MDI01 UART_P1 SEC_MODE2 BUZZER_ENB1 SEC_MODE1 UART_S1 ACTLED1 FANFAIL_LED_ FAN_MONITOR_ EXPDBG2 MDI02 DISABLE DISABLE Figure D-2: Front Jumper Locations and Pin Definitions Explanation of Jumpers To modify the operation of the backplane, jumpers can be used to choose between optional settings.
  • Page 94 Appendix D: BPN-SAS2-847EL Backplane Specifications General Jumper Settings Jumper Jumper Settings Note Factory Setting PRI_MODE1 and 2 Pins 2-3 Do not change Factory Setting SEC_MODE1 and 2 Pins 2-3 Do not change MDI01 and 02 No jumper required SMC internal use only UART_P1 No jumper required Primary UART connector...
  • Page 95 SC847J Chassis Manual D-8 Front LED Indicators 12V_LED1 FANFAIL1 OVERHEATFAIL1 5V_LED1 Figure D-3: Front LED Indicators Front LEDs Default Specification State Blue LED indicates a backplane power 5V_LED1 failure. Light is on during normal operation Blue LED indicates a backplane power 12V_LED2 failure.
  • Page 96 Appendix D: BPN-SAS2-847EL Backplane Specifications D-9 Rear Connectors and LED Indicators ACT20 PRI_FLASH1 SEC_FLASH1 SAS #20 SAS #8 SAS #14 33 9 SAS #7 SAS #13 SAS #19 ACT12 FAIL12 FAIL6 SAS #18 SAS #6 SAS #12 SAS #2 SAS #5 SAS #17 SAS #11 33 9...
  • Page 97 SC847J Chassis Manual Rear LED Indicators Rear Connector Hard Drive Activity LED Failure LED SAS #0 ACT #0 FAIL #0 SAS #1 ACT #1 FAIL #1 SAS #2 ACT #2 FAIL #2 SAS #3 ACT #3 FAIL #3 SAS #4 ACT #4 FAIL #4 SAS #5...
  • Page 98 Appendix D: BPN-SAS2-847EL Backplane Specifications D-10 Cascading Configurations Single Ports BPN-SAS2-847EL1 backplanes have a single-port expander that access all hard drives and supports cascading. From HBA or higher backplane To lower backplane in Primary ports cascaded system Expander 1 Dual Ports BPN-SAS2-847EL2 backplanes have dual-port expanders that access all the hard drives.
  • Page 99 SC847J Chassis Manual D-11 Failover The BPN-SAS2-847EL2 backplane has two expanders which allow effective failover. SAS HBA Single Host Bus Adapter In a single host bus configuration, the backplane connects to one Host Bus Adapter (HBA). Secondary ports Primary ports Expander 2 Expander 1 SAS HBA...
  • Page 100 Appendix D: BPN-SAS2-847EL Backplane Specifications D-12 Chassis Power Card and Support Cables Chassis Power Card In a cascaded configuration, the first chassis includes a motherboard and at least one Host Bus Adapter (HBA). Other servers in this enclosed system, include a power card.
  • Page 101 SC847J Chassis Manual Connecting an Internal Host Bus Adapter to the Backplane The following section lists the most common cables used to connect the HBA to the backplane. Figure D-8: Connecting an Internal HBA to the Backplane Supported Internal HBA Cables Use the following listed cables to create connections between the internal HBA and BPN-SAS2-847EL backplane.
  • Page 102 Appendix D: BPN-SAS2-847EL Backplane Specifications Cable Name: iPass (mini SAS) to iPass (mini SAS) Part #: CBL-0108L-02 Length: 39 cm (15 inches) Part #: CBL-0109L-02 Length: 22 cm (9 inches) Part #: CBL-0110L-02 Length: 18 cm (7 inches) Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36 pins) at each end.
  • Page 103 SC847J Chassis Manual Connecting an External Host Bus Adapter to the Backplane This backplane supports external Host Bus Adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD configura- tion system to connect to the other system that has a HBA. Single External Host Bus Adapter Power Card CBL-0200L...
  • Page 104 Appendix D: BPN-SAS2-847EL Backplane Specifications Supported External HBA to Backplane Cable Use the following cable if your external HBA has an InfiniBand connector. Figure D-10: External Cable (CBL-0166L) Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm Part #: CBL-0166L (SFF-8088 1x to SFF-8088 x1) Ports: Single or Dual Placement: External cable Description: External cascading cable.
  • Page 105 SC847J Chassis Manual Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables. CBL-0167L with Single Port Assembly (Internal cable) Secondary Port Primary Port Expander 2...
  • Page 106 Appendix D: BPN-SAS2-847EL Backplane Specifications Single HBA Configuration Cables Single Port Cable Assembly Figure D-12: Single Port Internal Cable (CBL-0167L) Cable Name: SAS EL2/EL1 Backplane Cable (Internal) with 2-port Cascading Cable, 68cm Part #: CBL-0167L (SFF-8087 to SFF-8088 x1) Ports: Single Placement: Internal cable Description: Internal cable.
  • Page 107 SC847J Chassis Manual Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from dual HBAs. These connections use CBL-0168L internal cables and CBL-0166L external cables. Primary Port Secondary Port Expander 1 Expander 2 Cable 0168L with Single Port Assembly (Internal cable)
  • Page 108 Appendix D: BPN-SAS2-847EL Backplane Specifications Dual HBA Configuration Cables Dual Port Cable Assembly Figure D-15: Dual Port Internal Cable (CBL-0168L) Cable Name: SAS Dual-port Cable Assembly, 68/76cm Part #: CBL-0168L Placement: Internal cable Ports: Dual Description: Internal cascading cable. Connects the backplane to the Host Bus Adapter (HBA) or external port.
  • Page 109 SC847J Chassis Manual D-13 Supported Cascading Configurations Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time. The first backplane in a cascaded system requires a motherboard and HBA. Other servers require a power control card with no motherboard and no HBA.
  • Page 110 Appendix D: BPN-SAS2-847EL Backplane Specifications Dual SAS HBA and Cascaded Configuration This configuration requires zoning. See section 3-2 of this manual for zoning information. Secondary Port Primary Port Expander 2 Expander 1 Dual Port Cable Assembly Cable 0168L (Internal cable) Cable 0166L Secondary Port Primary Port...
  • Page 111 SC847J Chassis Manual Notes D-24...

  • Page 112: Appendix E Sc847J Sas2 Chassis Internals And Externals

    Appendix E: SC847J Chassis Internals and Externals Appendix E SC847J SAS2 Chassis Internals and Externals Overview This appendix describes backplane and cabling information specific to the SC847J chassis. Revisions to the Data in this Appendix Content Revision History Date Revision Changes 2/5/10 Initial revision...
  • Page 113 SC847J SAS2 Chassis Manual SC847J SAS2 E16 Series JBOD Chassis Each SC847J SAS2 E16 series JBOD chassis contains two expander backplanes, forty-five 3.5” drives (SAS or SATA) and a PTJBOD card. The PTJBOD card drives the chassis LEDs and fans. See the CSE-PTJBOD-CB2 section below for details. The content of this appendix will focus on how this chassis can be configured both internally and externally.
  • Page 114 Appendix E: SC847J Chassis Internals and Externals BPN-SAS2-846EL1/EL2 BPN-SAS2-846EL1 is one of the two expander backplanes which may be used in the SC847J chassis. This backplane supports twenty-four 3.5” SAS/SATA drives and operates at a theoretical BPN-SAS2 performance of 6Gbs per phy. It supports Section 1.2 - BPN-SAS2-846EL1/2 enclosure elements such as fan RPM, temperature and power through the SES-II BPN-SAS2-846EL1 is one the two expander backplanes which is used in this chassis.
  • Page 115 SC847J SAS2 Chassis Manual J0 - Inbound J1 - Outbound from an Initiating to Downstream System Picture of BPN-SAS2-847EL1 Picture of BPN-SAS2-847EL1 Figure 3 Figure E-3: BPN-SAS2-847EL1 Figure 3 There is also dual version of the same expander which has 2 expa There is also dual version of the same expander which has 2 expander chips therefore you There is also dual version of the same expander which has two expander chips so have two paths to each drive behind the expander.
  • Page 116 Appendix E: SC847J Chassis Internals and Externals It combines four SFF 8087 cables into one simple connector boa the side of the chassis to be connected to the outside world. Belo This special connector combines four SFF 8087 cables into one simple connector the connectors look: board which is installed on the side of the chassis to be connected to the external systems.
  • Page 117 SC847J SAS2 Chassis Manual Below please see block diagram of how the connections are made, internally: Below please see block diagram of how the connections are made, internally: BPN-SAS2- BPN-SAS2- BPN-SAS2-847-EL1 847EL1 BPN-SAS2-846EL1 BPN-SAS2- SC847E16 JBOD SC847J E16 Series SFF 8088 x 4 SC847E16 JBOD SFF 8088 by four Picture of 846 &...
  • Page 118 Appendix E: SC847J Chassis Internals and Externals Figure E-8: External Cables for Connecting Head Units to JBODs External c The RAID card in the head unit can cascade to the JBOD chassis either through units and J its own expanders or through its own external SFF 8088 connector. Supermicro’s Figure 7 AOC-BPN-SAS2LP-H4iR has one external connector for this purpose.
  • Page 119 SC847J SAS2 Chassis Manual Using a RAID/HBA Card and Expander to Connect Downstream The block diagram below illustrates a head unit being cascaded to an SC847J E16 series JBOD chassis downstream. Each of the backplanes in the JBOD unit are connected to separate connectors. One to the RAID card and the other to the expander in the head unit.
  • Page 120 Appendix E: SC847J Chassis Internals and Externals Notes...
  • Page 121 SC847J SAS2 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
