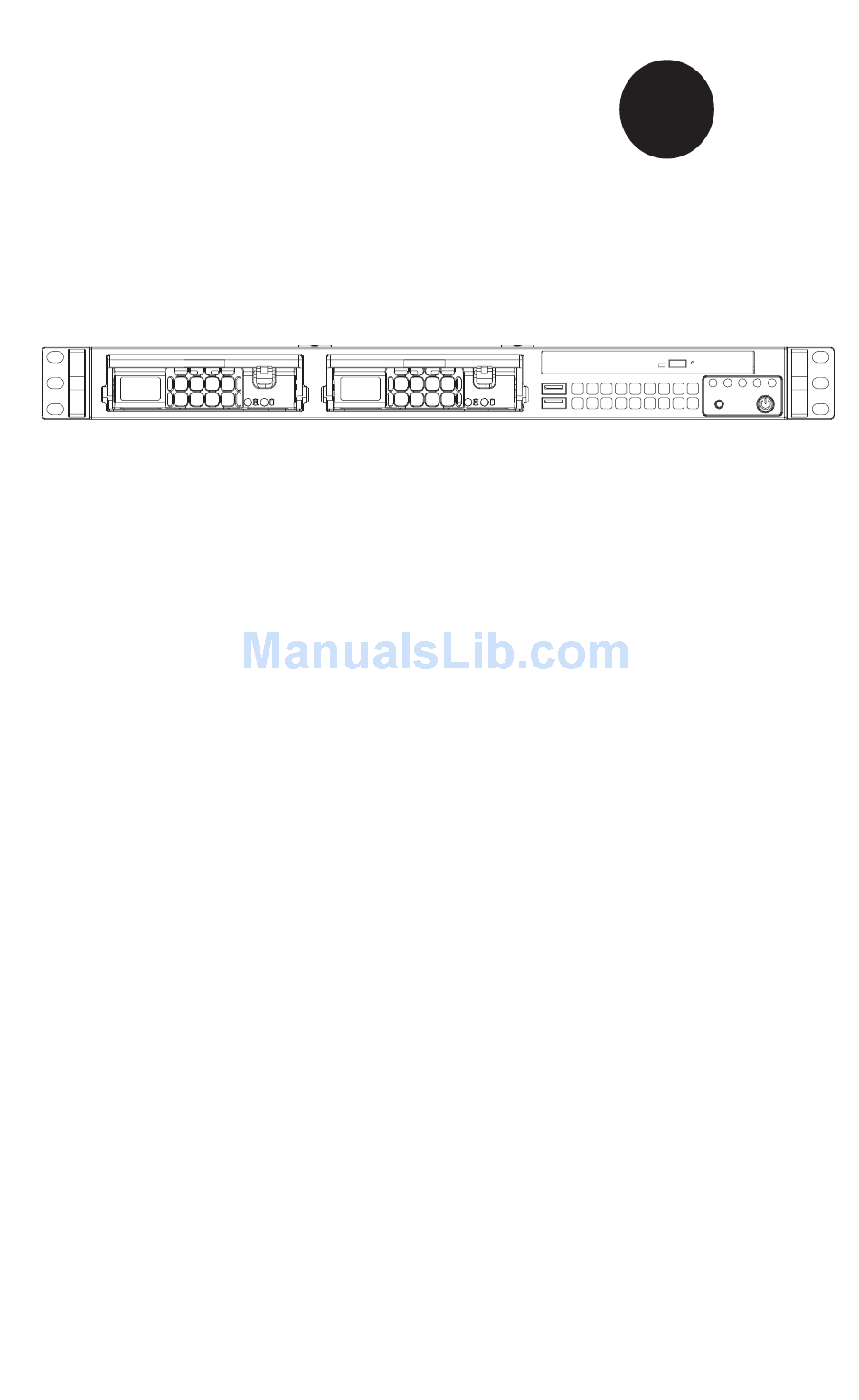

- Page 1 UPER SC811 Chassis Series SC811TQ-600B SC811TQ-350B SC811L-600B SC811L-350(B) SC811TQ-520(B) SC811S-300(B) SC811S-520(B) SC811T-300(B) SC811i-520(B) SC811i-300(B) SC811TQ-441B SC811TQ-280(B) SC811S-420(B) SC811S-280(B) SC811T-420(B) SC811i-280(B) SC811i-420(B) SC811TQ-260(B) SC811S-410(B) SC811S-260(B) SC811T-410(B) SC811T-260(B) SC811i-410(B) SC811i-260(B) USER’S MANUAL 2.0a...
- Page 2 SC811 Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
- Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC811 1U chassis. Installation and maintenance should be performed by experienced technicians only. This document lists compatible parts available when this document was published. Always refer to the our Web site for updates on supported parts and configurations.
-
Page 4: Manual Organization
SC811 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter describes the main features of the SC811 chassis. This chapter also includes contact information. Chapter 2 Warning Statements for AC Systems This chapter discusses warnings, precautions, and system safety. It is recom- mended that you thoroughly familiarize yourself with the safety precautions in this chapter before installing and servicing the chassis. -
Page 5: Table Of Contents
Preface Contents Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Contacting Supermicro ..................1-3 Unpacking the System ..................1-4 Returning Merchandise for Service..............1-4 Where to get Replacement Components ............1-4 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............ - Page 6 SC811 Chassis Manual Installing the Expansion Card ................. 4-7 Installing the Air Shroud .................. 4-8 Installation Complete ..................4-8 General Maintenance ..................4-8 System Blowers ....................4-9 Power Supply ....................4-10 4-10 Other Chassis Components ................4-12 Changing the DVD-ROM................4-12 Changing the Control Panel ................
- Page 7 Preface Connectors and Jumpers Front Connectors ....................C-3 Front Components ..................C-3 Front Connectors and Pin Definitions .............C-4 Front Jumper Locations and Pin Definitions ...........C-6 Explanation of Jumpers ..................C-6 C and SGPIO Modes and Jumper Settings ..........C-7 Front LED Indicators ..................C-8 Rear Connectors and LED Indicators .............C-9 Appendix D SATA-810 Backplane Specifications ESD Safety Guidelines ...................D-1 General Safety Guidelines ................D-1...
- Page 8 SC811 Chassis Manual Notes viii...
-
Page 9: Chapter 1 Introduction
Please visit the following link for the latest shipping lists and part numbers for your particular chassis model www.supermicro.com. SC811 Chassis Specs Mode I/O Slots Power Supply 600W SC811TQ-600B 2x SAS/SATA 1x FF (Gold Level) 600W SC811L-600B 2x Fixed 1x FF... - Page 10 SC811 Chassis Manual SC811 Chassis Specs Mode I/O Slots Power Supply SC811i-420 / 2x Fixed 1x FF 420W SC811i-420B* SC811S-410 / 2x U320 SCSI 1x FF 410W DC SC811S-410B* SC811T-410 / 2x SATA 1x FF 410W DC SC811T-410B SC811i-410 / 2x Fixed 1x FF 410W DC...
-
Page 11: Contacting Supermicro
Chapter 1 Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) www.supermicro.com Site: Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. -
Page 12: Unpacking The System
SC811 Chassis Manual Unpacking the System Inspect the box in which the chassis was shipped. If the chassis itself shows dam- age, file a damage claim with the carrier. Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. -
Page 13: Chapter 2 Standardized Warning Statements For Ac Systems
Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. - Page 14 SC811 Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
- Page 15 Warning Statements for AC Systems جسذٌة اصابة ًتتسبب ف حالة ٌوكي أى ًاًك ف خطز ًٌٌع هذا الزهز !تحذٌز الذوائز بالوخاطز الٌاجوة عي ي على علن ، ك هعذات تعول على أي قبل أى الكهزبائٍة حىادث أي وقىع وٌع ل الىقائٍة...
-
Page 16: Installation Instructions
SC811 Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. -
Page 17: Circuit Breaker
Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、... -
Page 18: Power Disconnection Warning
SC811 Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. - Page 19 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
-
Page 20: Equipment Installation
SC811 Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. -
Page 21: Restricted Area
Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. -
Page 22: Battery Handling
SC811 Chassis Manual אזור עם גישה מוגבלת !אזהרה יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת .)'כלי אבטחה בלבד (מפתח, מנעול וכד محظورة مناطق ٍنتركُبها ف هذه انىحذة تخصيص تم ،أداة خاصت من خالل استخذاو فقط محظورة... - Page 23 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.
-
Page 24: Redundant Power Supplies
SC811 Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. -
Page 25: Backplane Voltage
Chapter 2: Warning Statements for AC Systems امداد الطاقة بوحدات عدة اتصاالت جهاز ال يكون لهذا قد الكهرباء عن وحدة ال لعسل كافة االتصاالت يجب إزالة 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을... -
Page 26: Comply With Local And National Electrical Codes
SC811 Chassis Manual מתח בפנל האחורי !הרה אז קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך .העבודה اللىحة أوالطاقة المىجىدة على التيار الكهزبائي مه خطز هناك هذا الجهاس خدمة كه حذرا عند يعمل النظام عندما يكىن 경고! 시스템이... -
Page 27: Product Disposal
Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. תיאום חוקי החשמל הארצי !אזהרה הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים התקנת المتعلقة المحلية والىطىية قىاويه يجب أن يمتثل لل الكهربائية... -
Page 28: Hot Swap Fan Warning
SC811 Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. - Page 29 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
-
Page 30: Power Cable And Ac Adapter
SC811 Chassis Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. - Page 31 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
- Page 32 SC811 Chassis Manual Notes 2-20...
-
Page 33: Chapter 3 System Interface
Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel and on the drive carriers to keep you informed of the status of the system. Most SC811 models include two buttons on the chassis control panel: a reset button and an on/off switch. This chapter explains the meanings of the LED indicators and the appropriate responses. -
Page 34: Control Panel Buttons
SC811 Chassis Manual Control Panel Buttons There are two push-buttons located on the front of the chassis. These are (from left to right) a reset button and a power on/off button. • Reset: The reset button is used to reboot the system. •... - Page 35 Chapter 3: System Interface • NIC2: Indicates network activity on GLAN2 when flashing. • NIC1: Indicates network activity on GLAN1 when flashing. • HDD: Indicates IDE channel activity. SAS/SATA drive, SCSI drive, and/or DVD- ROM drive activity when flashing. • Power: Indicates power is being supplied to the system's power supply units.
-
Page 36: Drive Carrier Leds
SC811 Chassis Manual Drive Carrier LEDs The SC811 chassis uses SAS/SATA or SCSI drives, but not both. SAS/SATA Drives Each SAS/SATA drive carrier has two LEDs. • Green: Each Serial ATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SATA drive carrier) indicates drive activity. -
Page 37: Chapter 4 Chassis Setup And Maintenance
Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool required is a Phillips screwdriver. Review the warnings and precautions listed in the manual before setting up or servicing this chassis. -
Page 38: Removing The Chassis Cover
SC811 Chassis Manual Removing the Chassis Cover Release Button Figure 4-1. Removing the Chassis Cover Removing the Chassis Cover 1. Press the release buttons to remove the cover from the locked position. Press both buttons at the same time. 2. Once the top cover is released from the locked position, slide the cover to- ward the rear of the chassis. -
Page 39: Removing And Installing Hard Drives
Chapter 4: Chassis Setup and Maintenance Removing and Installing Hard Drives Figure 4-2. Removing a Hard Drive Removing Hard Drive Trays from the Chassis 1. Press the release button on the drive carrier. This extends the drive carrier handle. 2. Use the handle to pull the drive out of the chassis. - Page 40 SC811 Chassis Manual SAS/SATA or SCSI Hard Drive Drive Carrier Move the handle into the UP position to lock the drive into the chassis Figure 4-3. Removing the Drive from the Tray Installing a Hard Drive 1. Remove the hard drive tray from the chassis. 2.
-
Page 41: Installing The Motherboard
Chapter 4: Chassis Setup and Maintenance Installing the Motherboard Remove this screw Riser Card Bracket Remove this screw Figure 4-4. Removing the Riser Card Bracket Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. - Page 42 SC811 Chassis Manual Figure 4-5. Installing the Mylar Sheet and Motherboard 7. Secure the motherboard to the chassis using six screws located in the chas- sis screws. Do not exceed eight pounds of torque when tightening down the motherboard. 8. Secure the CPU(s), heatsinks, and other components to the motherboard as described in the motherboard documentation.
-
Page 43: Installing The Expansion Card
Chapter 4: Chassis Setup and Maintenance Installing the Expansion Card The SC811 chassis includes a slot for one full-length/full-height expansion card slot. Insert the Expansion Card Riser Card Bracket Figure 4-6. Expansion Card Installation Installing the Expansion Card 1. Power down the system as described in Section 4-2, lay the chassis on a flat surface, and open the chassis cover. -
Page 44: Installing The Air Shroud
SC811 Chassis Manual Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The SC811 chassis air shroud does not require screws to set it up. Installing the Air Shroud 1. Remove the mylar air shroud from the accessories box. 2. -
Page 45: System Blowers
Chapter 4: Chassis Setup and Maintenance System Blowers Two heavy-duty air blowers provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. Blower Posts Figure 4-7. Changing System Blowers Changing a System Blower 1. -
Page 46: Power Supply
SC811 Chassis Manual Power Supply Most SC811 chassis models include a high-efficiency power supply that is auto- switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. - Page 47 Chapter 4: Chassis Setup and Maintenance 3. Remove the three screws securing the power supply. Two screws are ac- cessible from the rear of the chassis. The other is located in the front of the power supply. 4. Remove the power supply and replace the unit with out of the same model. 5.
-
Page 48: Other Chassis Components
SC811 Chassis Manual 4-10 Other Components Changing the DVD-ROM 1. Power down the system as described in Section 4-2 and remove the cover.. 2. Disconnect the power cord and data cables from the DVD-ROM drive to other chassis components including the motherboard and backplane. 3. -
Page 49: Chapter 5 Rack Installation
Chapter 5: Rack Installation Chapter 5 Rack Installation This chapter provides simple instructions for installing this chassis into a rack. This chassis does not support Telco rack installation. Preparing for Setup Please read this section in its entirety before beginning the installation procedure. Choosing a Setup Location Decide on a suitable location for the rack. -
Page 50: Circuit Overloading
SC811 Chassis Manual Circuit Overloading Avoid overloading the power supply circuitry or any overcurrent protection equip- ment. Use equipment nameplate ratings to calculate your requirements. Reliable Ground A reliable ground must be maintained at all times. To ensure this, ground the rack, itself. -
Page 51: Rack Mounting Instructions
Chapter 5: Rack Installation • Install the heaviest server components on the bottom of the rack first, and then work up. • Use a regulating, uninterruptible power supply (UPS) to protect the server from power surges, voltage spikes and to keep your system operating in case of a power failure. - Page 52 SC811 Chassis Manual Figure 5-1: Inner and Outer Rails Separating the Inner and Outer Rails 1. Pull the inner rail (A) from the outer rail (B) as far as possible. 2. Depress the locking tab (C) to pull the inner rail completely out. 3.
- Page 53 Chapter 5: Rack Installation Outer Rails Rail Brackets Figure 5-3. Rack Brackets Installing the Outer Rails to the Rack 1. Confirm that the inner rails have been separated from the outer rails. 2. Locate the rail brackets in the accessories box. The chassis package includes four rail brackets and two chassis mounts.
- Page 54 SC811 Chassis Manual Rail Bracket Figure 5-4: Mounting the Chassis (Note: This figure is for illustrative purposes only. Always install servers into racks from the bottom up.
-
Page 55: Installing The Chassis Into A Rack
Chapter 5: Rack Installation Installing the Chassis into a Rack Chassis Installation 1. Confirm that the chassis includes the inner rails (A) and that the outer rails (B) are installed on the rack (See Figure 5-3) 2. Align the chassis rails (A) with the front of the rack rails (C). 3. - Page 56 SC811 Chassis Manual Notes...
-
Page 57: Appendix A Cables, Screws, And Other Accessories
Appendix A: Chassis Cables Appendix A Cables, Screws, and Other Accessories A-1 Overview This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com. -
Page 58: Cables Included With The Sc811T Chassis (Scsi
SC811 Chassis Manual A-4 Cables Included with the SC811T Chassis (SCSI) SC811T Part # Type Length Description CBL-0061 Cable 13.8 inches Amphenol Serial ATA cable Note: Items may change without notice. Refer to http://www.supermicro.com for the latest information. A-5 Compatible Cables These cables are compatible with the SC811 chassis. -
Page 59: Extending Power Cables
Appendix A: Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the mother boards. -
Page 60: Chassis Screws
SC811 Chassis Manual A-6 Chassis Screws The chassis and accessory box include all the screws needed to set up your chassis. This section includes descriptions of the most common screws used. Your chassis may not require all of the parts listed. HARD DRIVE Flat head Pan head... -
Page 61: Appendix B Sc811 Power Supply Specifications
Appendix B: Power Supply Specifications Appendix B SC811 Power Supply Specifications This appendix lists power supply specifications for your chassis system. 600W MFR Part # PWS-601-1H 100 - 240V Rated AC 50 - 60Hz Voltage 7.5 - 3.1A +5V standby 3A +12V 49 Amp +5V 20 Amp +3.3V 16 Amp... - Page 62 SC811 Chassis Manual 410W 350W MFR Part # PWS-0061 PWS-0042-24 Rated AC Volt- 100 - 240V, 60-50Hz, 6 Amp 5V + 3.3V ≤ 157W DC Output --- • 12V + 5V + 3.3V ≤ 330W Voltage Range = -36V to -72V Nominal Voltage = -48V DC Voltage Max Input Current = 18A @...
-
Page 63: Esd Safety Guidelines
Appendix C: Backplane Specifications Appendix C SAS-810TQ Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully. -
Page 64: An Important Note To Users
SC811 Chassis Manual C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publcation. The card you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Introduction to the SAS-810TQ Backplane The SAS-810TQ backplane has been designed to utilize the most up-to-date tech- nology available, providing your system with reliable, high-quality performance. -
Page 65: Front Connectors
Appendix C: Backplane Specifiications C-5 Front Connectors Figure C-1: Front Connectors Front Connectors #1. Power connector, 4-pin, JP10 #6. Activity LED header, JP26 #2. SAS port 1, J6 #7. Upgrade, JP46 #3. SAS port 0, J5 #8. JTAG, JP47 #4. I C connector, JP44 #5. -
Page 66: Front Connectors And Pin Definitions
SC811 Chassis Manual C-6 Front Connectors and Pin Definitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connector designated JP10, 4-Pin Connector (JP10) provides power to the backplane. See the Pin# Definition table on the right for pin definitions. +12V 2 and 3 Ground... - Page 67 Appendix C: Backplane Specifiications #6. Activity LED Header SAS Activity LED Header Pin Definitions (JP26) The activity LED header, designated JP26 Pin # Definition Pin # Definition is used to indicate the activity status of ACT IN#0 each SAS drive. The activity LED is located ACT IN#1 on the front panel.
-
Page 68: Front Jumper Locations And Pin Definitions
SC811 Chassis Manual C-7 Front Jumper Locations and Pin Definitions JP18 JP40 JP29 JP50 JP33 JP42 JP34 Figure C-2: Front Jumpers Explanation of Jumpers Connector Pins To modify the operation of the backplane, jumpers can be used to choose between optional settings. -
Page 69: C And Sgpio Modes And Jumper Settings
Appendix C: Backplane Specifiications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumpers. The following information details which jumper must be configured to use SGPIO mode or restore your backplane to I C mode. -
Page 70: Front Led Indicators
SC811 Chassis Manual Front LED Indicators Figure C-3: Front LEDs Front Panel LEDs State Specification Alarm #1 (D3) Overheat/drive failure. -
Page 71: Rear Connectors And Led Indicators
Appendix C: Backplane Specifiications C-8 Rear Connectors and LED Indicators SAS #1 SAS #0 Figure C-4: Rear Connectors and LEDs Rear SAS/SATA Connectors Rear Connector SAS/SATA Drive Number SAS #0 (J1) SAS/SATA HHD #0 SAS #1 (J0) SAS/SATA HHD #1 Rear LED Indicators Rear LED Hard Drive Activity... - Page 72 SC811 Chassis Manual Notes C-10...
-
Page 73: Appendix D Sata-810 Backplane Specifications
Appendix D: Backplane Appendix D SATA-810 Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully. -
Page 74: An Important Note To Users
SC811 Chassis Manuale D-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. D-4 Introduction to the SATA-810 Backplane The SATA-810 backplane has been designed to utilize the most up-to-date technol- ogy available, providing your system with reliable, high-quality performance. -
Page 75: Front Connectors
Appendix D: Backplane D-5 Front Connectors Figure D-1: Front Connectors Front Connectors 1. Power connector: JP10 2. SATA cable connector #0: J5 3. SATA cable connector #1: J6 4. ACT_IN: JP26... -
Page 76: Front Connector Definitions
SC811 Chassis Manual D-6 Front Connector Definitions 1. Main Power Connector The power connector is designated JP10. The main power connector provides power to the backplane. 2. - 3. SATA Cable Connectors The SATA cable connectors are designated J5 and J6. 4. -
Page 77: Front Jumper Locations And Pin Definitions
Appendix D: Backplane D-7 Front Jumper Locations and Pin Definitions JP18 JP25 Figure D-2: Front Jumpers Socket Settings Jumper Setting Note Open: No reset (Default) JP18 Buzzer reset* Closed: Reset Open: 45º C JP25 Pins 1-2: 50º C (Default) Overheat temperature setting Pins 2-3: 55º... -
Page 78: Front Led Indicator
SC811 Chassis Manual Front LED Indicator Figure D-3: Front LED Front LED Normal State Indicator Status Red indicator light is on when Overheat LED: D3 an overheat condition occurs. -
Page 79: Rear Connectors And Led Indicators
Appendix D: Backplane D-8 Rear Connectors and LED Indicators Rear Connectors SATA#1 SATA#0 Figure D-4: Rear Connectors Rear Connectors Rear Connector SATA Drive Number SATA #0 (J1) SATA HDD #0 SATA #1 (J2) SATA HDD #1... -
Page 80: Rear Leds
SC811 Chassis Manual Rear LEDs ACT1 ACT0 Figure D-5: Rear LEDs Rear LED Inidcators Activity LED Designation SATA Drive Number ACT0 SATA HDD #0 ACT1 SATA HDD #1... - Page 81 Appendix D: Backplane Notes...
- Page 82 SC811 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
