Adjust the Transparency
1. From the AutoChart menu, select AutoChart Transparency.
2. Press the RIGHT or LEFT Cursor keys to adjust the setting.
Display the AutoChart Color Bar
The AutoChart Color Bar allows you to display the palette icon for AutoChart or Bottom Type. See the illustrations Chart View with
AutoChart Live Map Displayed and Chart/Chart Combo View.
You can use this icon to see the selected palette and, from left to right, the AutoChart Live depth range (low to high), Bottom
Hardness range (soft to hard), or Vegetation range (soft to hard).
Show/Hide the AutoChart Color Bar
1. From the AutoChart menu, select AutoChart Color Bar.
2. Select a display bar.
Display AutoChart Live and Bottom Layer in Chart/Chart Combo View
You can also use the Chart/Chart Combo View to display AutoChart Live and Bottom Layer data at the same time. Use the X-Press
Menu to make adjustments to each pane. See Views: Combo Views for more information.
Display the Chart/Chart Combo View
1. Press and hold the VIEW key.
2. Select Chart > Chart/Chart Combo View.
AutoChart Menu

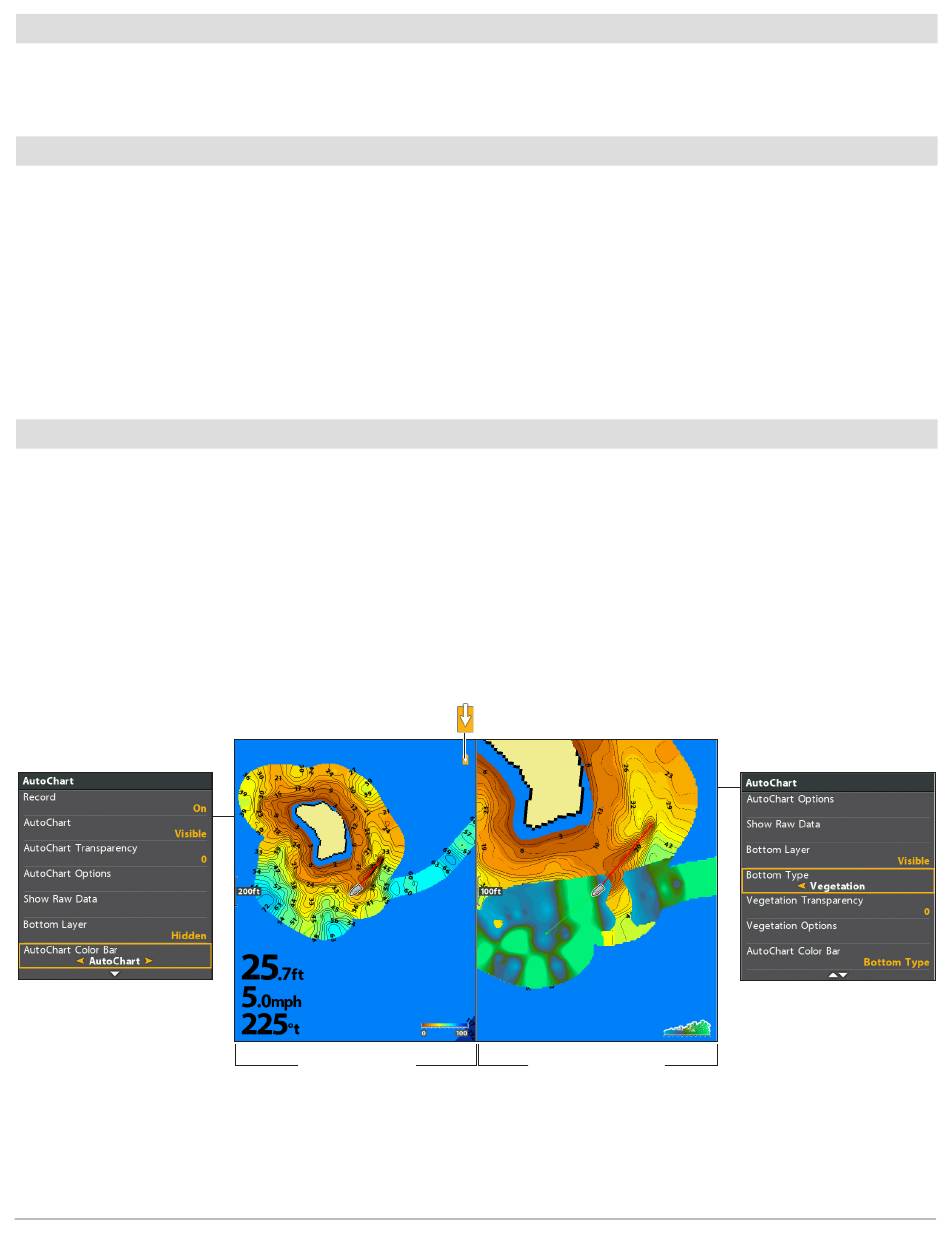

Chart/Chart Combo View (Map Source: Humminbird LakeMaster)
indicates the selected
pane (Active Pane)
AutoChart Live Map
Visible
AutoChart Live Visible
with Vegetation Bottom
Layer Displayed
207
AutoChart Menu
AutoChart Live
