Humminbird HELIX Series Operation Manual page 131

Display a Chart Combo View

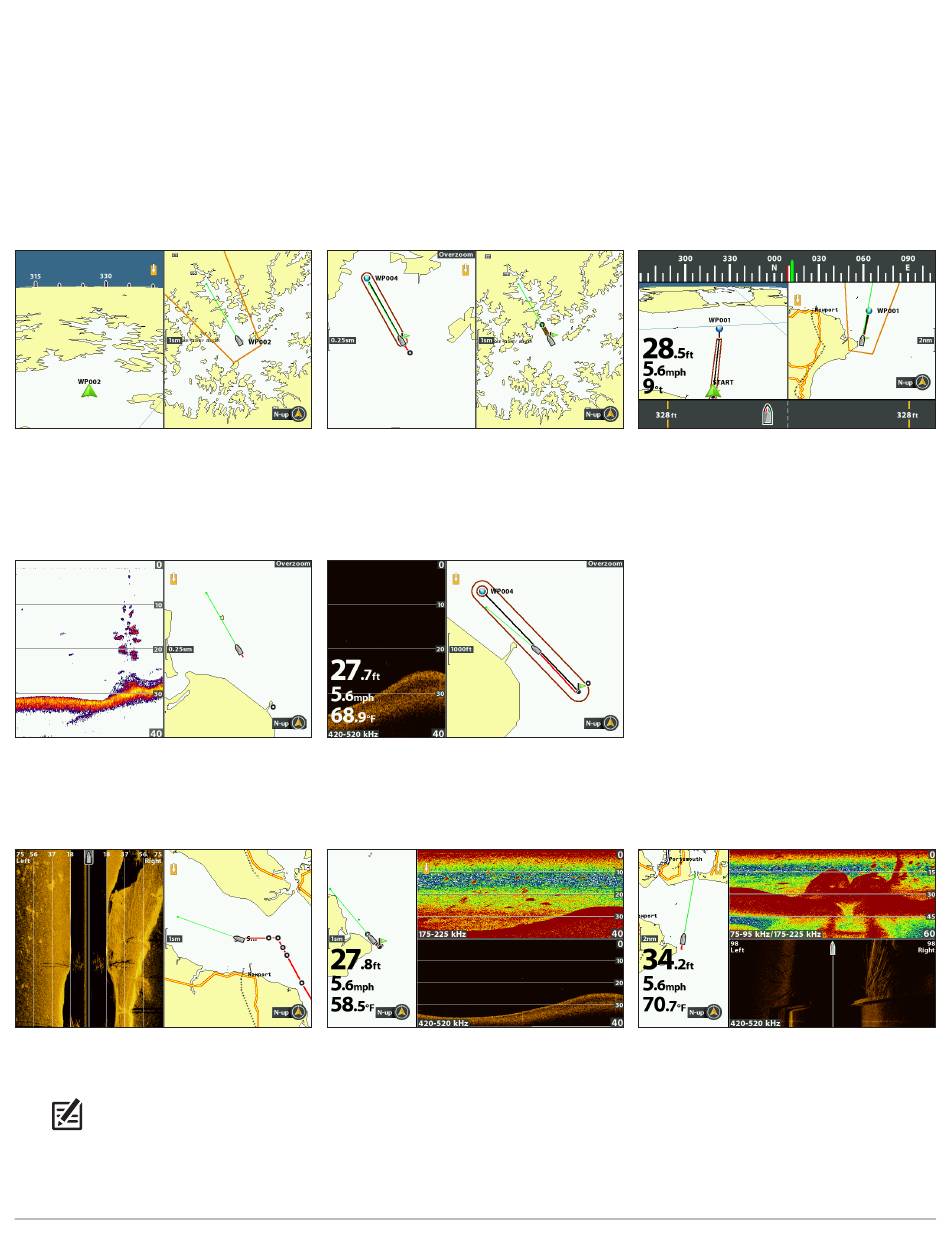

You can select a variety of Chart Combo Views or Chart/Sonar Combo Views.
1. Press and hold the VIEW key.
2. Select Chart.
3. Select a view to display on-screen. Press the RIGHT Cursor key.
Chart > Chart/Bird's Eye Combo View
(with Contour XD or Navionics only)
For more information, see
Customize the Bird's Eye View.
Chart > Chart/Sonar Combo View
(Map Source: Contour XD)
For more information, see the
Sonar section.
Chart > Chart/Side Combo View
(Map Source: Contour XD)
For more information, see the
Side Imaging section.
NOTE: The available views are determined by your control head model and the installed transducer. For a complete list of the
views available on your control head, press the MENU key twice, and select the Views tab. See each related section of the manual
(Views, Sonar, Side Imaging, Navigation Overview, etc.) for more information.
Chart > Chart/Chart Combo View
(Map Source: Contour XD)
Chart > Chart/Down Combo View
(Map Source: Contour XD)
For more information, see the
Down Imaging section.
Chart > Chart/Sonar/Down Combo View
(Map Source: Contour XD)
For more information, see the
Sonar and Down Imaging sections.
131
Chart > Chart/BE Instrument View
(with Contour XD or Navionics only)
For more information, see
Customize the Chart Instrument View and
Customize the Bird's Eye View.
Chart > Chart/Sonar/Side Combo View
(Map Source: Contour XD)
For more information, see the
Sonar and Side Imaging sections.
Chart Overview
