Show the Cursor
To move the cursor in Sonar Zoom View, you must activate the cursor in the X-Press Menu.
1. Sonar X-Press Menu: With the Sonar Zoom View displayed on-screen, press the MENU key once.
2. Select Show Cursor.
3. Press the RIGHT Cursor key.
Adjust the Zoom RTS Window
The RTS Window plots the depth and intensity of a sonar return. It updates at the fastest rate possible for depth conditions and
shows only the returns from the bottom, structure, and fish that are within the transducer beam. To customize the RTS Window
display, see Customize the Sonar View: Customize the RTS Window.
In Sonar Zoom View, you can adjust the width of the RTS Zoom window. See below.
1. Sonar X-Press Menu: With the Sonar Zoom View displayed on-screen, press the MENU key once.
2. Select Zoom RTS Mode.
3. Press the RIGHT or LEFT Cursor keys to adjust the setting.
zoomed
view
Show/Hide Digital Readouts
Use the Declutter feature to hide digital readouts in a Sonar view when your control head is in Ice Fishing Mode.
1. Sonar X-Press Menu: With a Sonar view displayed on-screen, press the MENU key once.
2. Select Declutter.
3. Press the RIGHT Cursor key.
4. Press Exit.

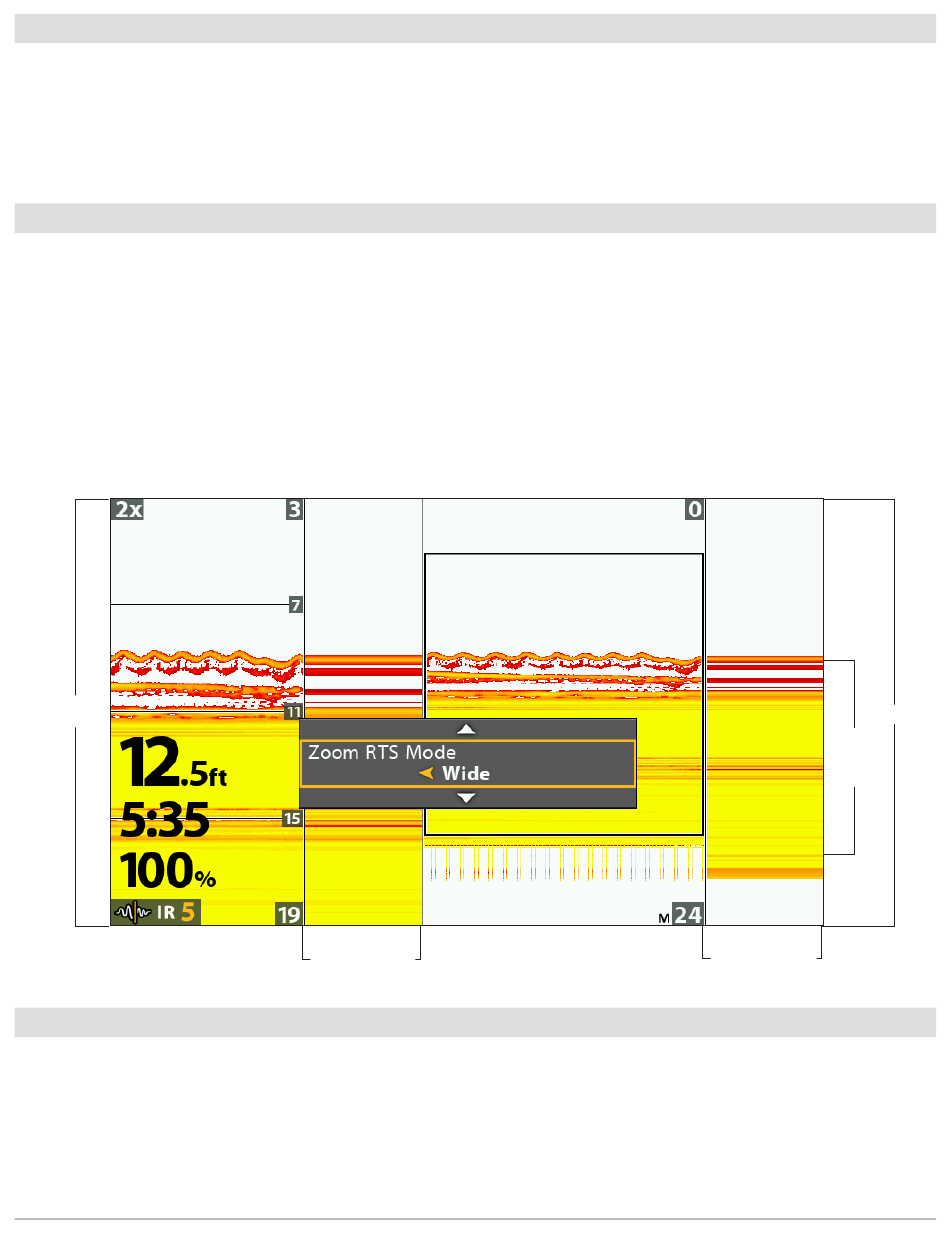

Setting the RTS Window Width
