JETWAY R3399X-2C Series User Manual page 24

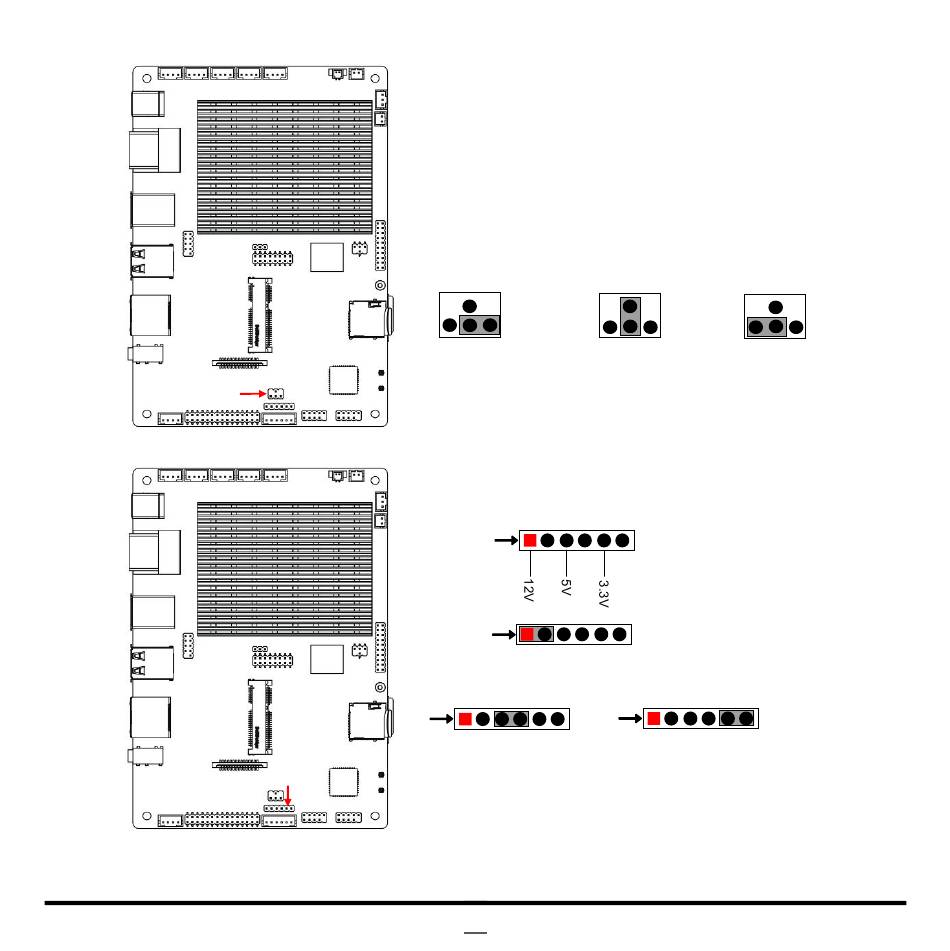

*LVDS_BKLT (4-pin): LVDS Backlight VCC Select Jumper
*LVDS_BKLT
*LVDS_POWER (6-pin): LVDS LCD Power VCC Select Jumper
*Note: LVDS, INVERTER, LVDS_BKLT and LVDS_POWER are optional to
R3399X-2C series only.
LVDS_BKLT
2-4 Closed=3.3V; 3-4 Closed=5V; 4-6 Closed=12V.
Pin1
*LVDS_POWER
Inverter Backlignt VCC
→
5 3 1 5 3 1
6 4 2
6 4 2
Pin1
Pin1
1-2 Closed:
VCC = 12V;
Pin1
3-4 Closed:
VCC = 5V;
19
5 3 1
6 4 2
5-6 Closed:
VCC = 3.3V
(Default).
