JETWAY R3399X-2C Series User Manual page 22

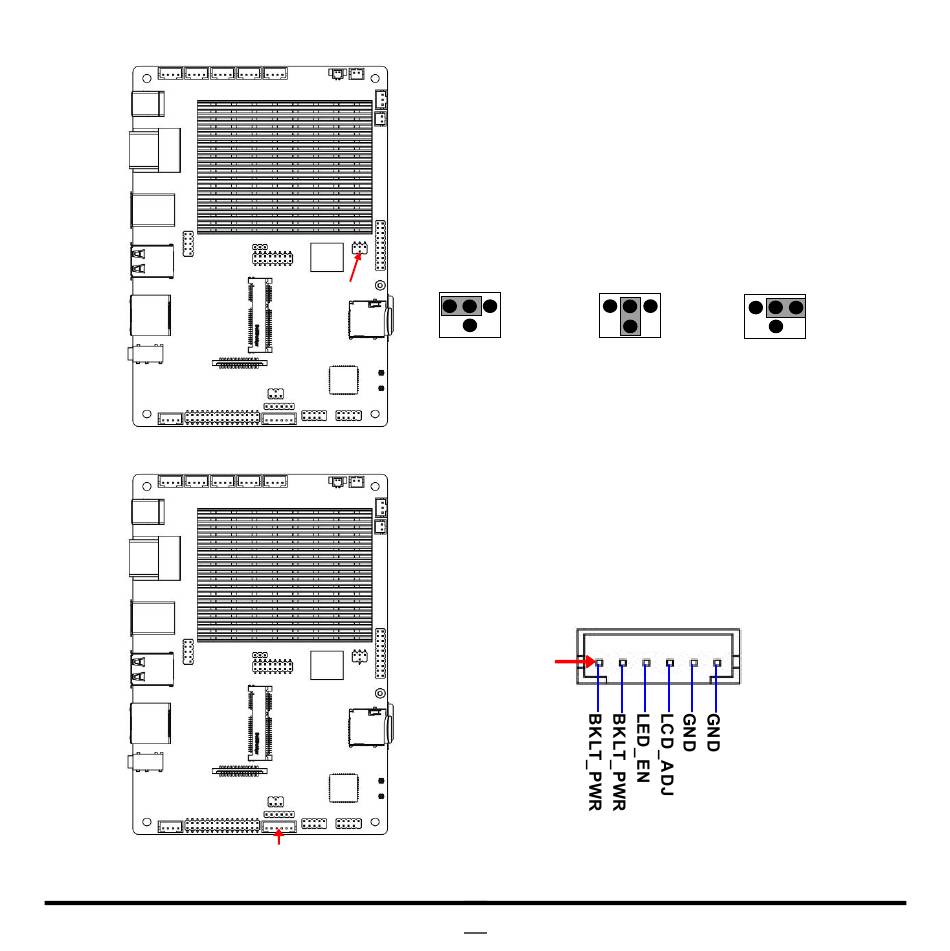

EDP_VCC (4-pin): EDP LCD Power VCC Select Jumper
*INVERTER (6-pin): LVDS Inverter Connector
*INVERTER
EDP_VCC
2 4
EDP_VCC
1 3
2-4 Closed=3.3V; 3-4 Closed=5V; 4-6 Closed=12V.
17
EDP LCD Power VCC
→
6 2 4 6
5
1 3 5
Pin1
2 4 6
1 3 5
