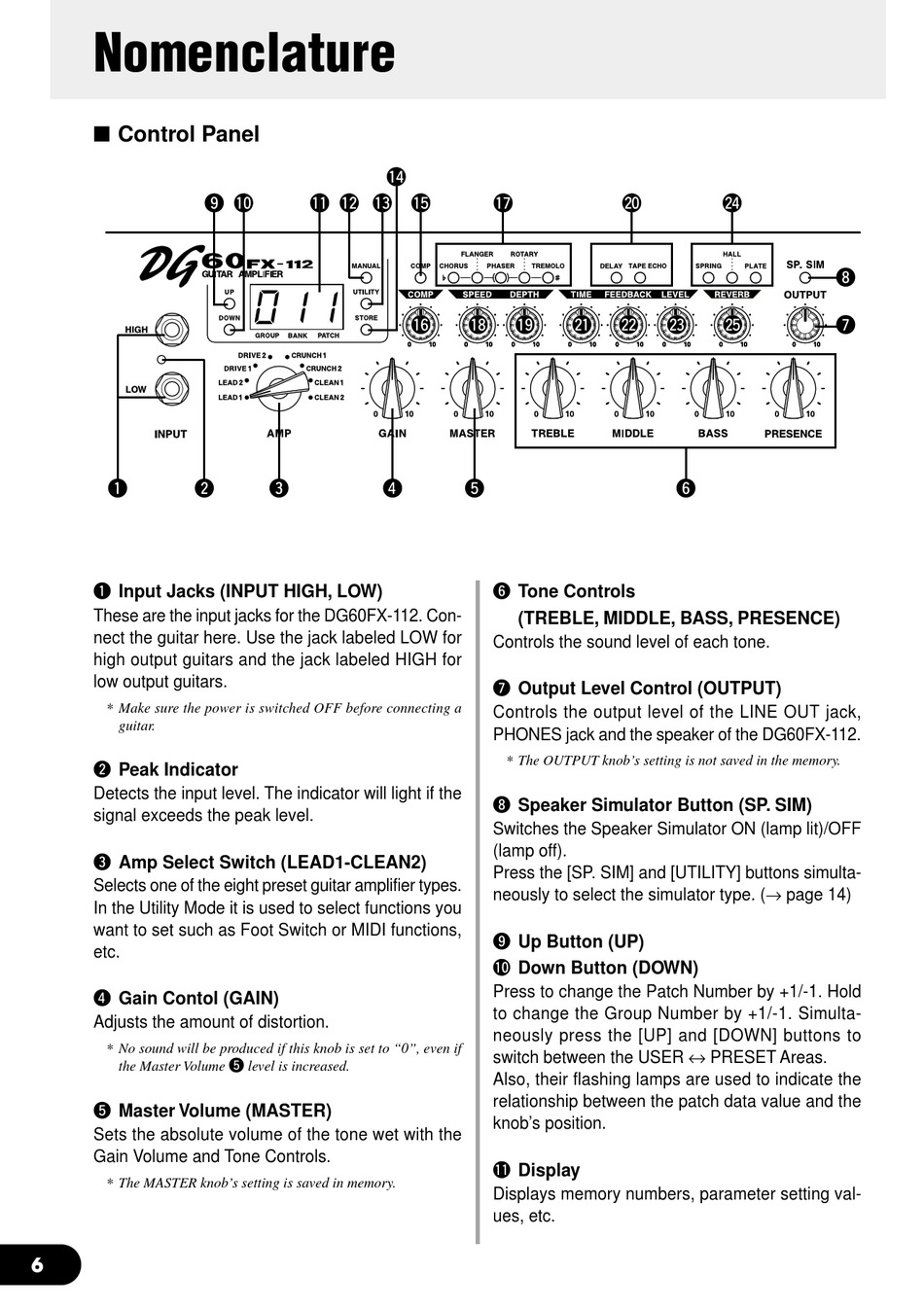

Nomenclature

Control Panel

o !0
q w
q Input Jacks (INPUT HIGH, LOW)
These are the input jacks for the DG60FX-112. Con-
nect the guitar here. Use the jack labeled LOW for
high output guitars and the jack labeled HIGH for
low output guitars.
* Make sure the power is switched OFF before connecting a
guitar.
w Peak Indicator
Detects the input level. The indicator will light if the
signal exceeds the peak level.
e Amp Select Switch (LEAD1-CLEAN2)
Selects one of the eight preset guitar amplifier types.
In the Utility Mode it is used to select functions you
want to set such as Foot Switch or MIDI functions,
etc.
r Gain Contol (GAIN)
Adjusts the amount of distortion.
* No sound will be produced if this knob is set to "0", even if
the Master Volume
t Master Volume (MASTER)
Sets the absolute volume of the tone wet with the
Gain Volume and Tone Controls.
* The MASTER knob's setting is saved in memory.
6
!4
!1 !2 !3
e r
t
level is increased.
!5 !7
!6 !8 !9 @1
t
y Tone Controls
(TREBLE, MIDDLE, BASS, PRESENCE)
Controls the sound level of each tone.
u Output Level Control (OUTPUT)
Controls the output level of the LINE OUT jack,
PHONES jack and the speaker of the DG60FX-112.
* The OUTPUT knob's setting is not saved in the memory.
i Speaker Simulator Button (SP. SIM)
Switches the Speaker Simulator ON (lamp lit)/OFF
(lamp off).
Press the [SP. SIM] and [UTILITY] buttons simulta-
neously to select the simulator type. (
o Up Button (UP)
!0 Down Button (DOWN)
Press to change the Patch Number by +1/-1. Hold
to change the Group Number by +1/-1. Simulta-
neously press the [UP] and [DOWN] buttons to
switch between the USER
Also, their flashing lamps are used to indicate the
relationship between the patch data value and the
knob's position.
!1 Display
Displays memory numbers, parameter setting val-
ues, etc.
@0 @4
@2 @3 @5
y
page 14)
PRESET Areas.
i
u
