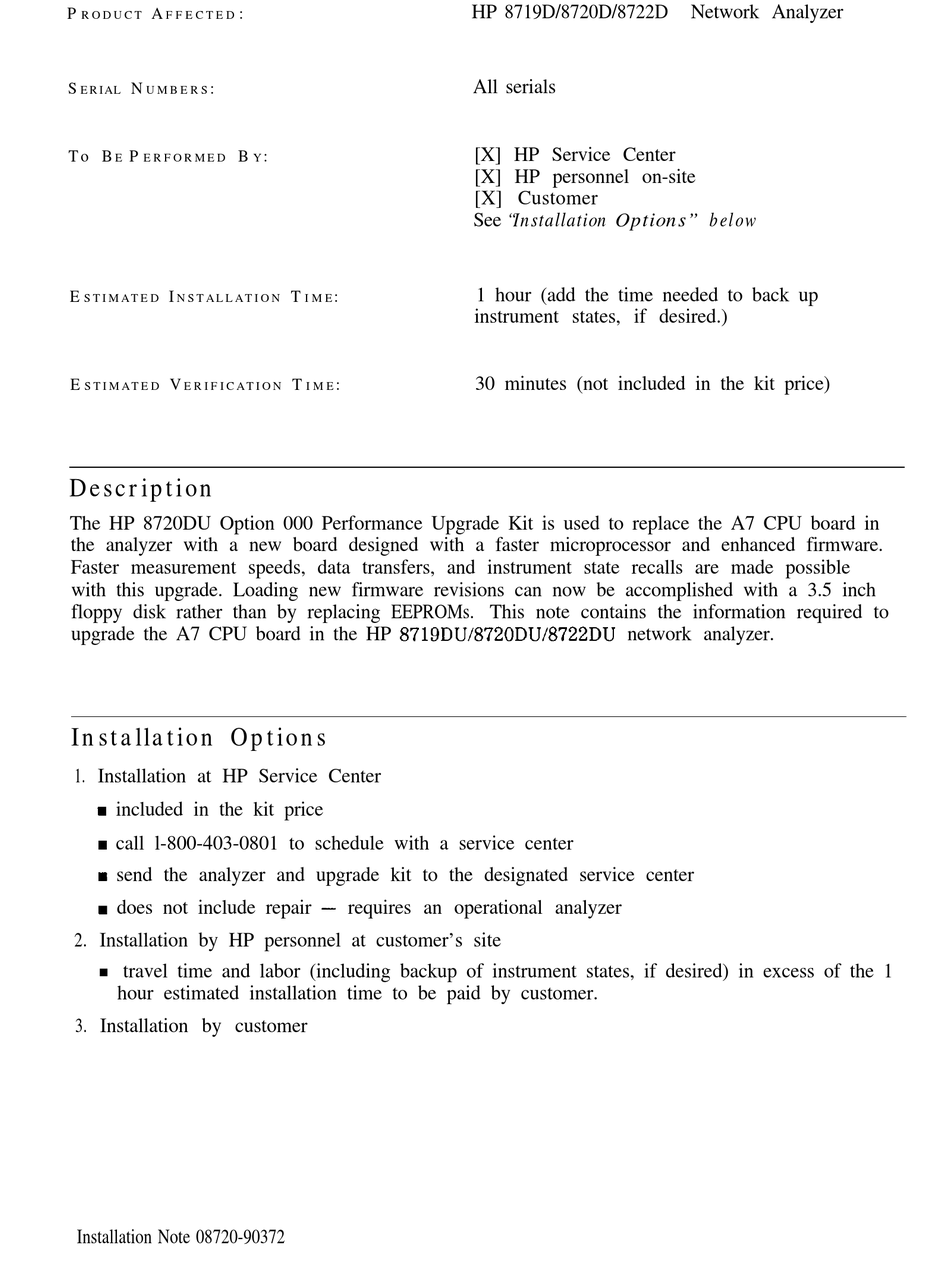

Installation Options - HP 8719D Installation Note

P A :
RODUCT F F E C T E D
S N :
ERIAL UMBERS
To B P B
E ERFORMED
E I
STIMATED NSTALLATION
E V
STIMATED ERIFICATION
Description
The HP 8720DU Option 000 Performance Upgrade Kit is used to replace the A7 CPU board in
the analyzer with a new board designed with a faster microprocessor and enhanced firmware.
Faster measurement speeds, data transfers, and instrument state recalls are made possible
with this upgrade. Loading new firmware revisions can now be accomplished with a 3.5 inch
floppy disk rather than by replacing EEPROMs. This note contains the information required to
upgrade the A7 CPU board in the HP 8719DU/8720DU/8722DU

Installation Options

Installation at HP Service Center
1.
included in the kit price
call l-800-403-0801 to schedule with a service center
send the analyzer and upgrade kit to the designated service center
does not include repair - requires an operational analyzer
2. Installation by HP personnel at customer' s site
travel time and labor (including backup of instrument states, if desired) in excess of the 1
n
hour estimated installation time to be paid by customer.
3. Installation by customer
Installation Note 08720-90372
:
Y
T :
I M E
T :
I M E
HP 8719D/8720D/8722D
All serials
[X] HP Service Center
[X] HP personnel on-site
[X] Customer
See "Installation Options" below
1 hour (add the time needed to back up
instrument states, if desired.)
30 minutes (not included in the kit price)
network analyzer.
Network Analyzer
