ControlMaster CMF160
Universal process indicator, fieldmount
Powerful operator display
The CMF160 features a full-color 5.5 cm (2.2 in.) display for
displaying detailed process information to the user. Process
details such as alarm messages and diagnostic information are
displayed clearly in full text without the need for difficult-to-read
scrolling displays.

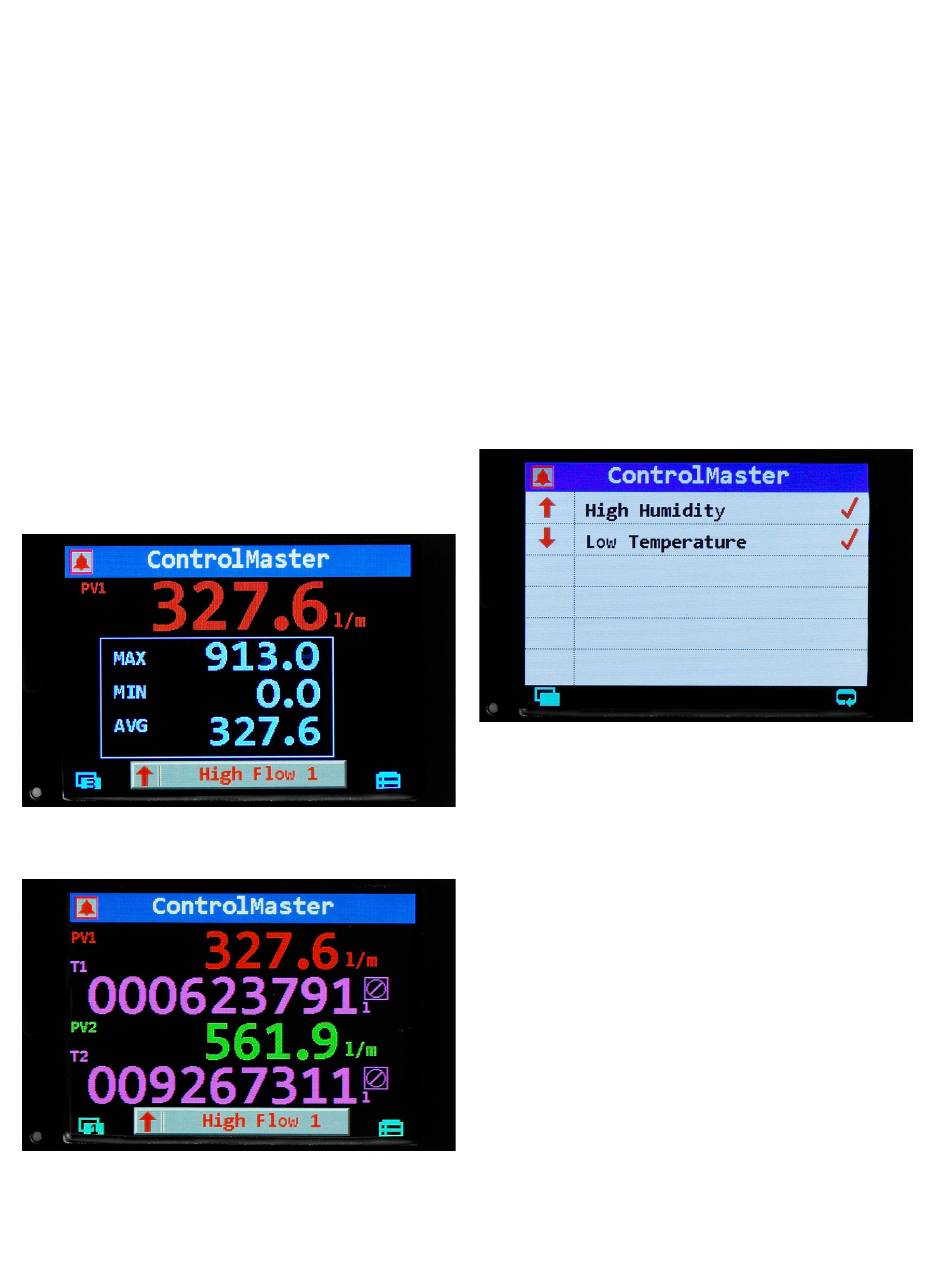

Example of an operator page
Automatic selection of standard display templates immediately
makes best use of the CMF160's display. Extensive
customization features then enable the displayed information to
be tailored to suit the process requirements.
Fig. 2: Single PV indication template display
Fig. 3: Dual PV and totalization display
4 DS/CMF160–EN Rev. B | ControlMaster CMF160 | Universal process indicator, fieldmount
Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed
information on any active alarm or diagnostic condition. The
operator can see, at-a-glance, the status of any alarm condition
present within the process. In addition, diagnostic messages
are presented clearly to the operator, enabling rapid notification
and simple diagnosis of any critical instrument status condition.
Historical information of diagnostic messages can also be
viewed in the indicator's diagnostic log.
Fig. 4: Alarm status display
