ControlMaster CMF160
Universal process indicator, fieldmount
Overview
The ControlMaster CMF160 is a feature-packed,
enables wall-, or pipe-mounting without the need for an additional enclosure. A crystal-clear, full-color, TFT display shows
operators exactly the information they need to know and provides operation and configuration menus in full text, making the
CMF160 intuitive to use and very quick to install and commission.
Available as a basic indication-only model, or enhanced through plug-and-play function keys and I/O modules, the CMF160 offers
totalization, level, math, logic, counter and alarm functions making it extremely flexible and able to solve many demanding
application requirements.
MODBUS and Ethernet communication options ensure easy integration and connectivity to supervisory or control systems.

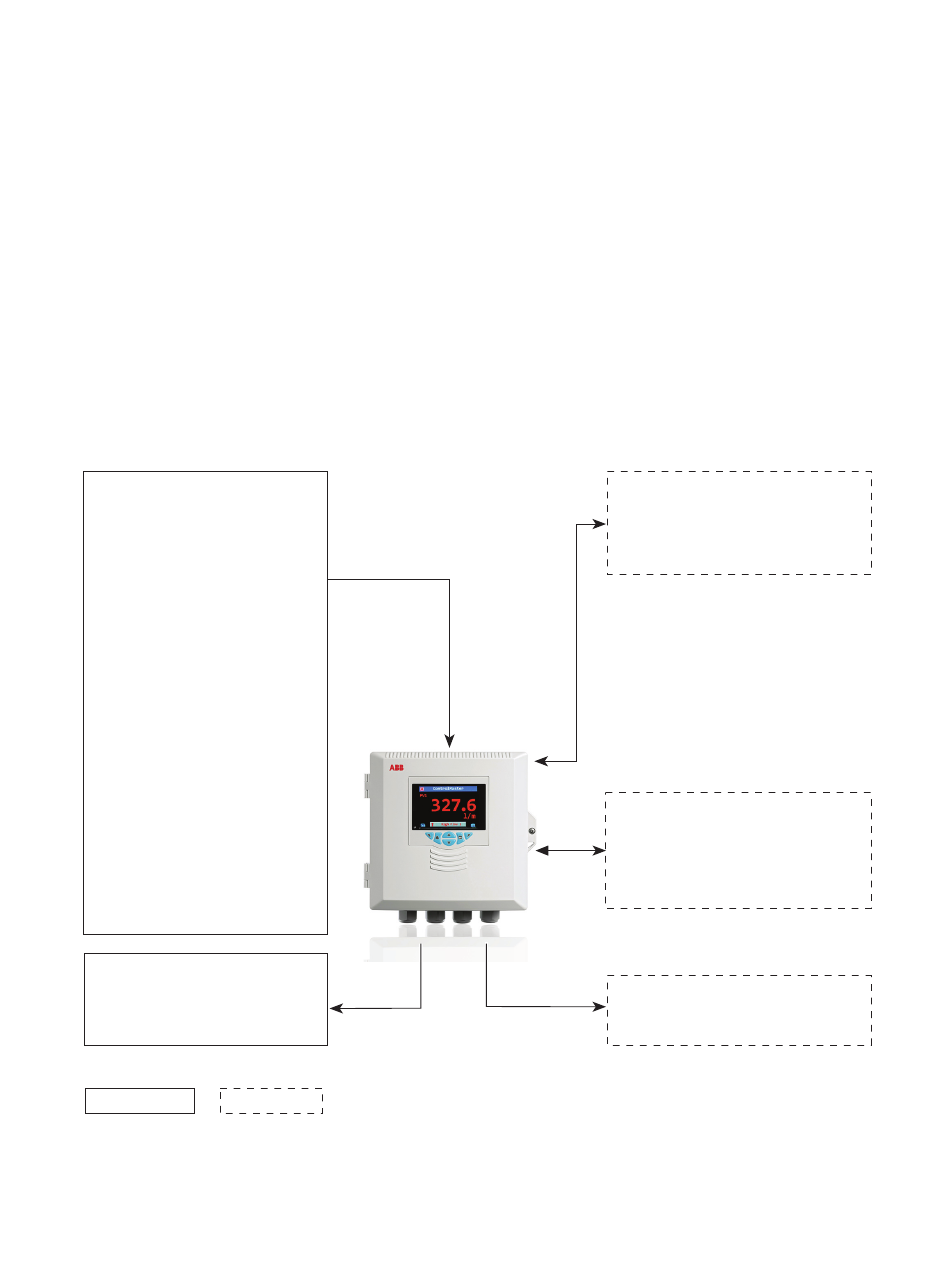

Analog input module
(position 1)
— Universal process input (I/P1)
— Thermocouple
— RTD (3- / 4-lead)
— Resistance
— mA
— V
— mV
— Frequency
— Volt-free digital input
— 24 V Digital input
— Process input (I/P2)
— Thermocouple
— mA
— V
— mV
— Volt-free digital input
— 24 V Digital input
— 2 x transmitter PSU
Standard I/O
— 2 x analog / digital O/P
— 4 x relay
— 6 x digital I/O
Key
Standard
2 DS/CMF160–EN Rev. B | ControlMaster CMF160 | Universal process indicator, fieldmount
1 / DIN, universal process indicator. With a unique field-mountable design that
8
Option
Output module
(position 3)
— 2 x Analog output
— 2 x Relay
Analog input module
(position 2)
— 1 x Universal analog input (I/P3)
— 1 x Process input (I/P4)
— 2 x Transmitter PSU
Communications
— Ethernet
— RS 485 MODBUS
