Highly scalable
The CM15 is highly scalable in terms of both hardware and software, enabling it to meet the demands of simple indication duties
through to more complex applications. The basic CM15 provides basic indication, totalization and level functionality. Templates
and functionality can be increased by adding function keys to the basic model as shown in Fig. 1, while retaining previous
templates and functionality.
Level Function Keys
Base 0
Standard 1
Dual 2

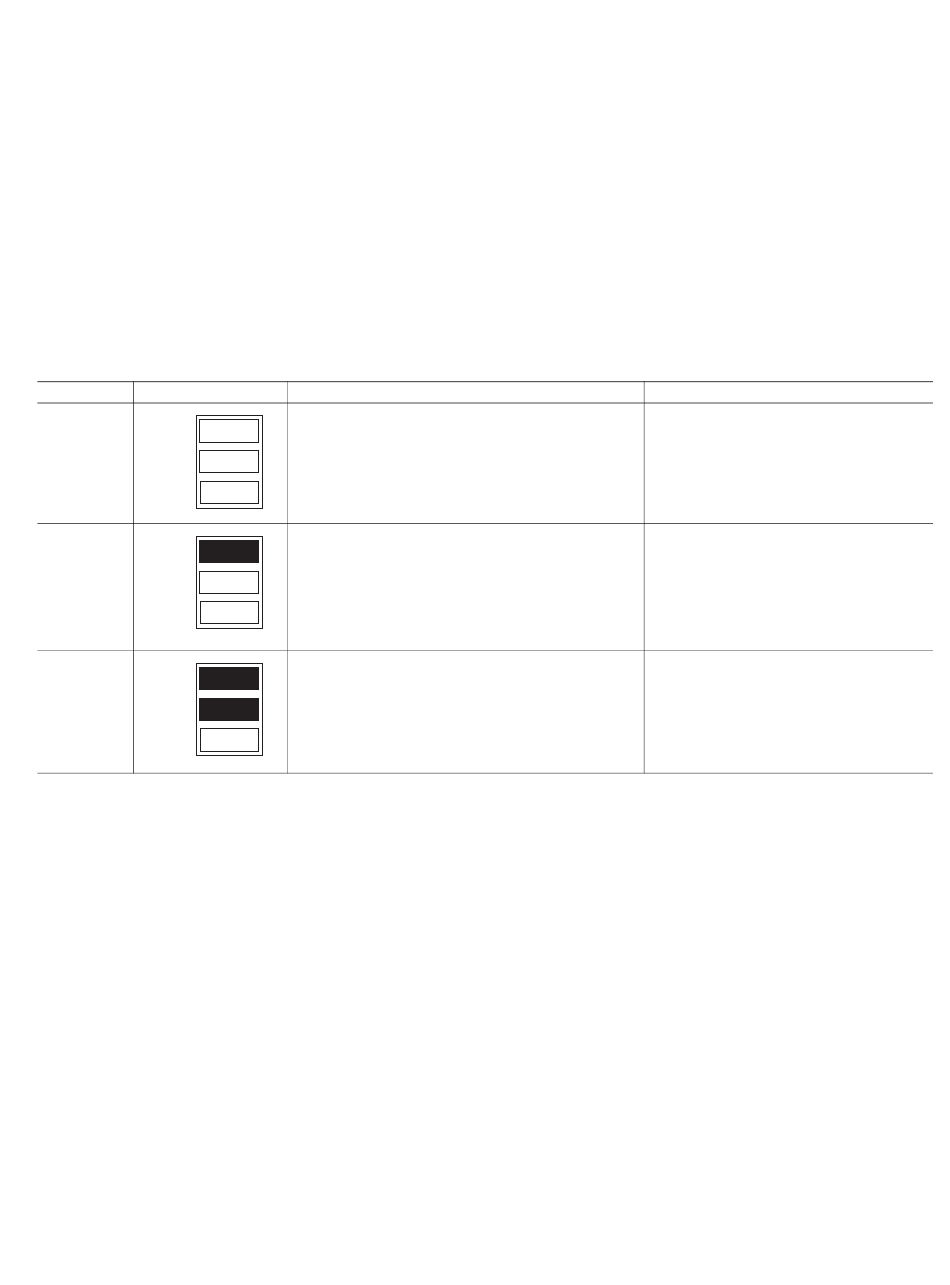

Fig. 1: Overview of template options
Template
Single PV indication
Single PV with totalizer
Single totalizer
Single level with volume
Dual PV indication
Dual PV with totalizer
Dual totalizer
Dual level with volume
ControlMaster CM15 | Universal process indicator,
Functionality
Process alarms
Totalization
Volume computation
— Specific gravity compensation
Minimum, maximum and average calculation
Logic
Math
Custom linearizers
Delay timers
Real time alarms
Template customization
Display customization
