Application templates

To minimize commissioning time, the CM15 features up to 8 preconfigured templates. Simply selecting the required template

configures the CM15's function blocks and display automatically. Customization of the preconfigured templates is also possible,

providing the flexibility to create customized solutions.

Single PV indication

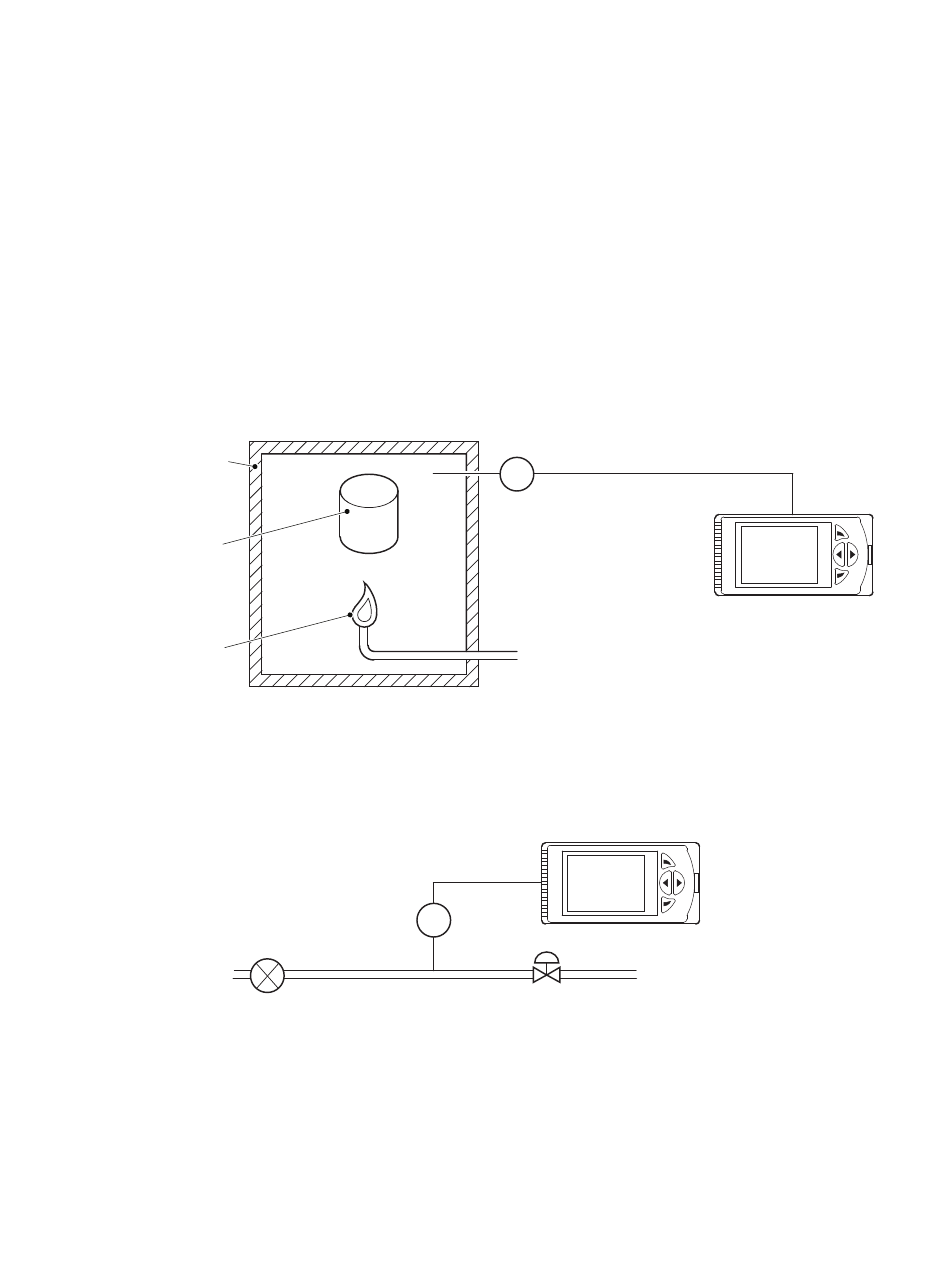

This template provides indication of a single process value. The example in Fig. 11 shows the CM15 being used to indicate the

temperature of a heat treatment furnace

Furnace

Load

Burner

Gas Feed

Fig. 11: Single PV indication

Single PV with totalization

This template adds totalization to the single PV indication template. In the example in Fig. 12, the CM15 is monitoring a pipeline

to provide indication of instantaneous flow rate and totalization and could be connected to the flowmeter via an analog

(for example 4 to 20 mA) or frequency signal.

Fig. 12: Single PV with totalization
