3-Way Y Valve: Diverter Position Vs Intellivalve Actuator Led Position - Pentair INTELLIVALVE Installation And User Manual

3-Way Y Valve: Diverter Position vs IntelliValve
LED position

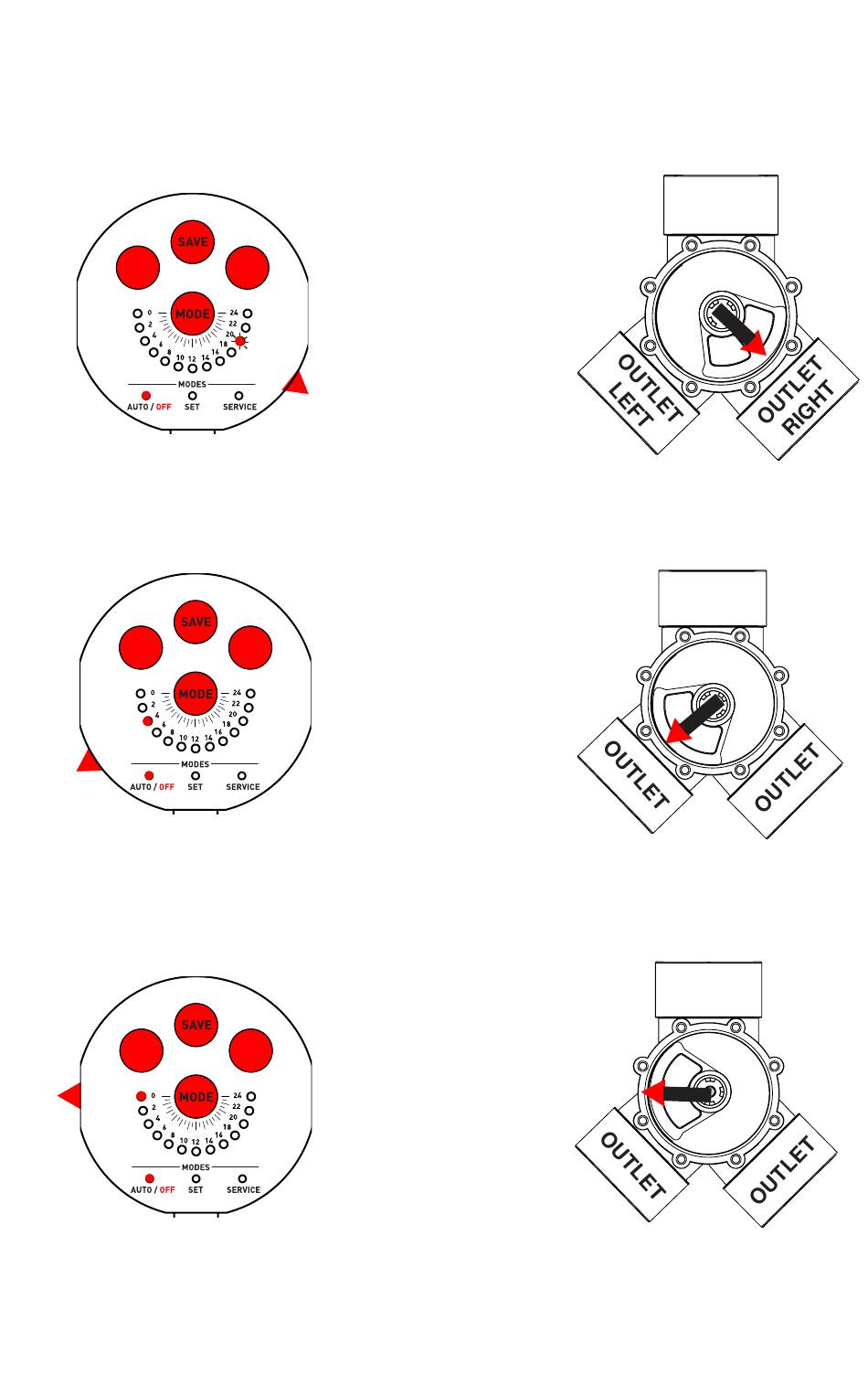

The following illustrates the relative position of the IntelliValve Actuator position LEDs
and the 3-Way Y valve diverter seal.
Position 20 (LED
on) indicates the
diverter restricts
water flow for total
shut off of the right
side outlet.
Position 4 (LED
on) indicates the
diverter restricts
water flow for total
shut off of the left
side outlet.
Pposition 0 (LED on)
indicates the diverter
partially restricts water
flow out of the left side
outlet. The water flow
out of the right side
outlet is unrestricted.
INTELLIVALVE
™
Actuator
Valve diverter seal position 20
INLET
Valve diverter seal position 4
INLET
Valve diverter seal position 0
™ Valve Actuator Installation and User's Guide
