Example: IntelliValve

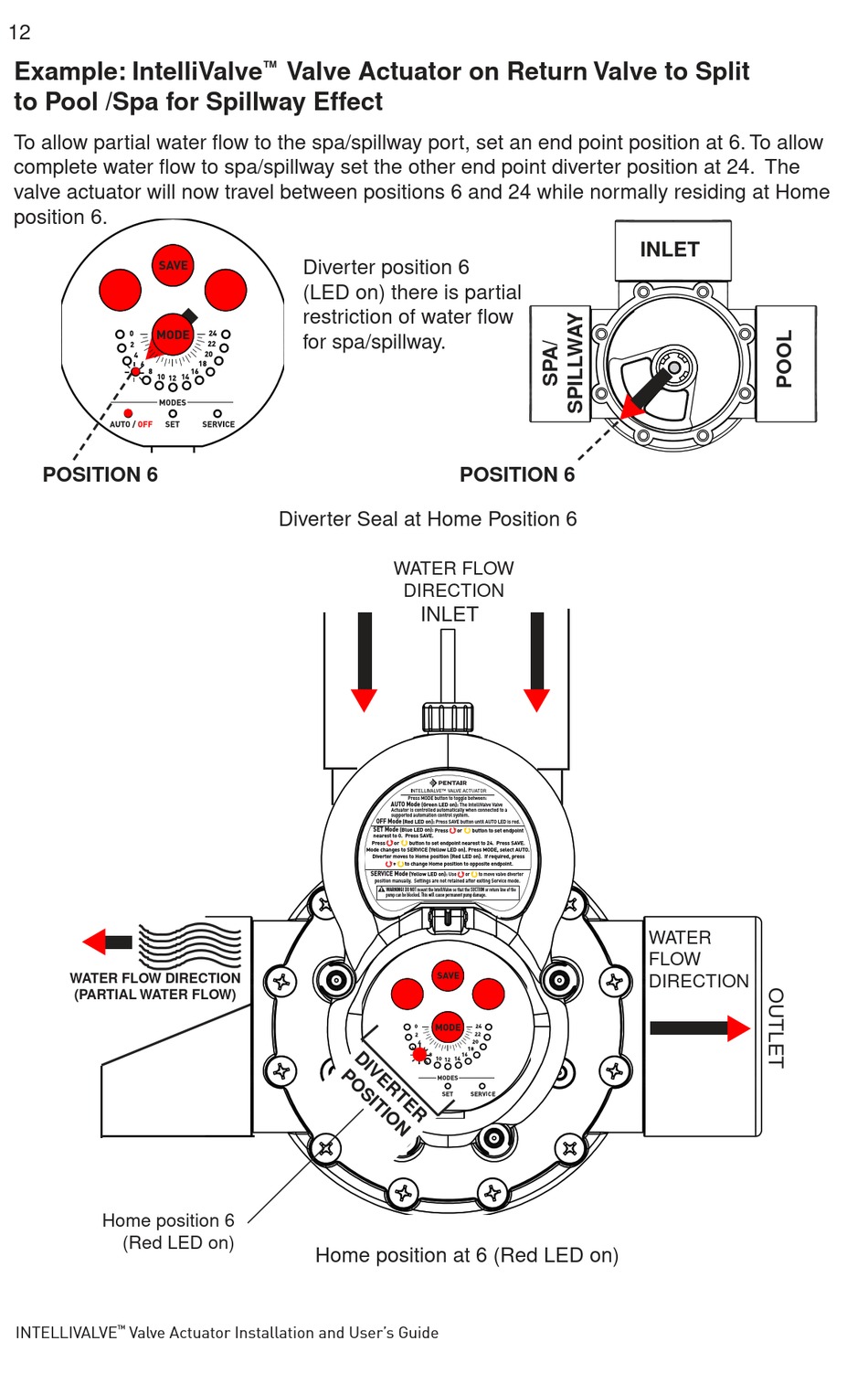

to Pool /Spa for Spillway Effect
To allow partial water flow to the spa/spillway port, set an end point position at 6. To allow
complete water flow to spa/spillway set the other end point diverter position at 24. The
valve actuator will now travel between positions 6 and 24 while normally residing at Home
position 6.
POSITION 6
WATER FLOW DIRECTION
(PARTIAL WATER FLOW)
Home position 6
(Red LED on)
™
INTELLIVALVE Valve Actuator Installation and User's Guide
™ Valve Actuator on Return Valve to Split
Diverter position 6
(LED on) there is partial
restriction of water flow
for spa/spillway.
Diverter Seal at Home Position 6
WATER FLOW
DIRECTION
INLET

Press MODE button to toggle between:
AUTO Mode (Green LED on):
Actuator is controlled automatically when connected to a
supported automation control system.
OFF Mode (Red LED on):
SET Mode
(Blue LED on):
nearest to 0. Press SAVE.
Press or button to set endpoint nearest to 24. Press SAVE.
Mode changes to SERVICE (Yellow LED on). Press MODE, select AUTO.
Diverter moves to Home position (Red LED on). If required, press
+ to change Home position to opposite endpoint.
SERVICE Mode
(Yellow LED on):
position manually. Settings are not retained after exiting Service mode.
WARNING! DO NOT mount the IntelliValve so that the SUCTION or return line of the
pump can be blocked. This will cause permanent pump damage.
Home position at 6 (Red LED on)
POSITION 6

The IntelliValve Valve
Press SAVE button until AUTO LED is red.
