14
3-Way Valve: Diverter Position vs IntelliValve

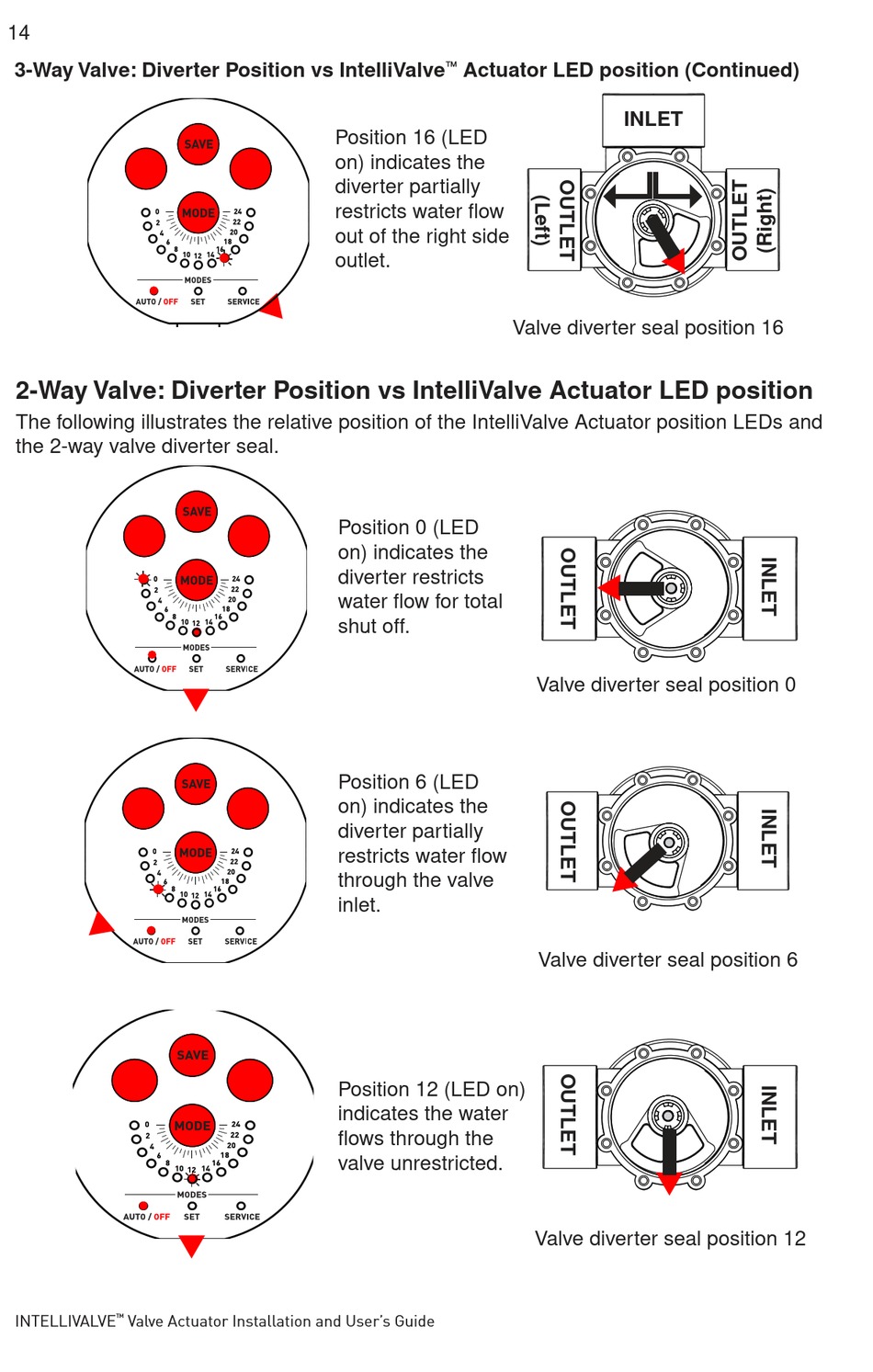

2-Way Valve: Diverter Position vs IntelliValve Actuator LED position

The following illustrates the relative position of the IntelliValve Actuator position LEDs and
the 2-way valve diverter seal.
™
INTELLIVALVE Valve Actuator Installation and User's Guide
Position 16 (LED
on) indicates the
diverter partially
restricts water flow
out of the right side
outlet.


™ Actuator LED position (Continued)
Position 0 (LED
on) indicates the
diverter restricts
water flow for total
shut off.
Position 6 (LED
on) indicates the
diverter partially
restricts water flow
through the valve
inlet.
Position 12 (LED on)
indicates the water
flows through the
valve unrestricted.
INLET
99
Valve diverter seal position 16
Valve diverter seal position 0
Valve diverter seal position 6

Valve diverter seal position 12
