Appendix B — Media Specifi cations

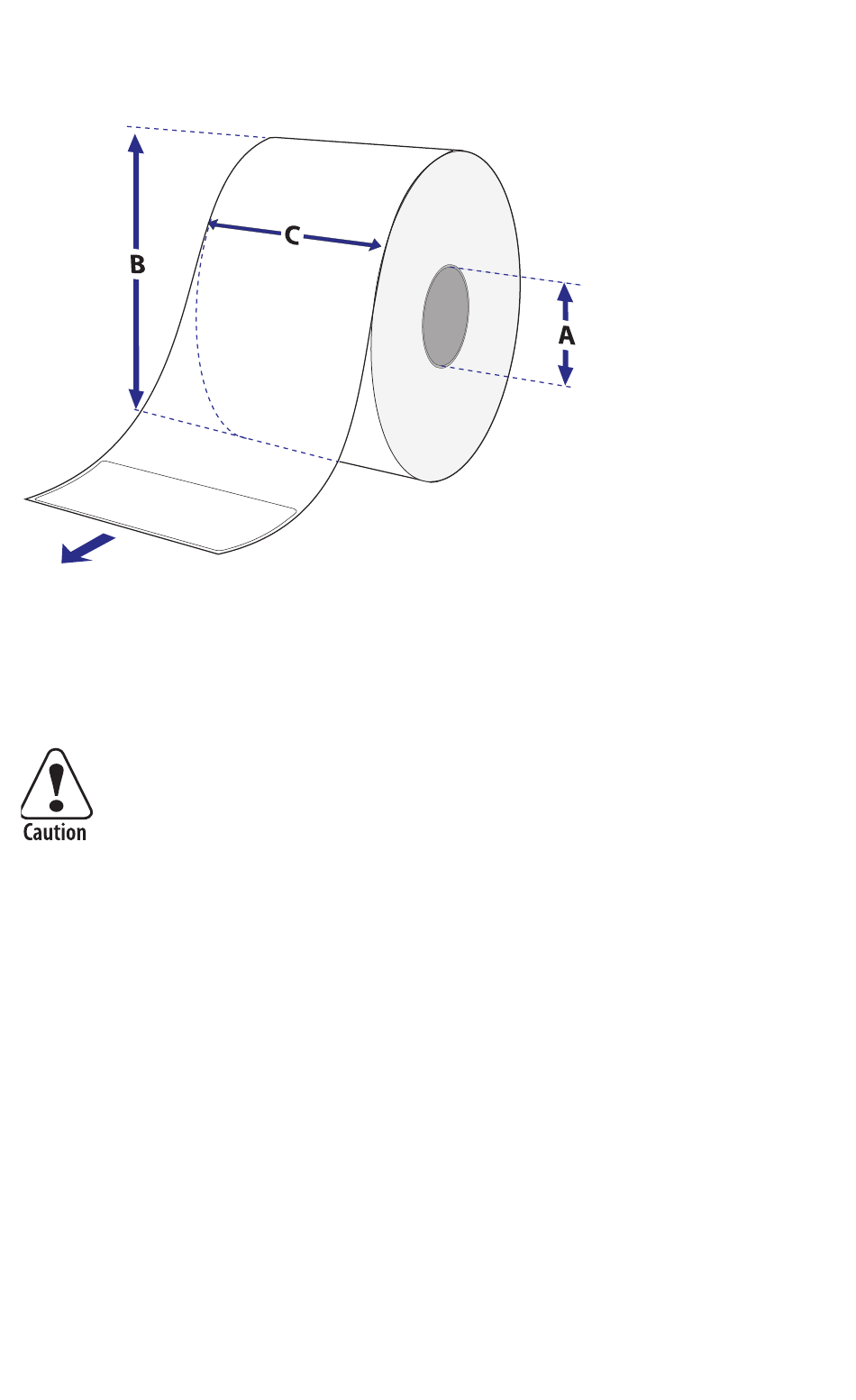

Media Roll Size

Core
Diameter (A), standard:
Diameter (A), with adapter:
Width: Must not protrude outside the media.
The media must be wound up on the core in such a way
that the printer can pull the end free.
Roll
Max. diameter (B), tear-off and cut-off:
Max. diameter (B), peel-off and batch takeup: 205 mm
Max. width (C):
Min. width (C) :
The recommended media thickness is 60 to 170µm (2.4 to 6.7 mils).
Thicker media may be used, but print quality will be reduced. The
stiffness is also important and must be balanced against thickness to
maintain print quality.
Media rolls to be loaded inside the printer should be wound with the
printable side facing outwards.
The media supply must not be exposed to dust, sand, grit, etc. Any hard
particles, however small, can damage the printhead.
100
38-40 mm
76.2 mm
213 mm
170 mm
76 mm
EasyCoder PX6i User's Guide (IPL version)
(1.5 inches)
(3 inches)
(8.38 inches)
(8.07 inches)
(6.69 inches)
(3.00 inches)
