Peel-Off , cont.
8

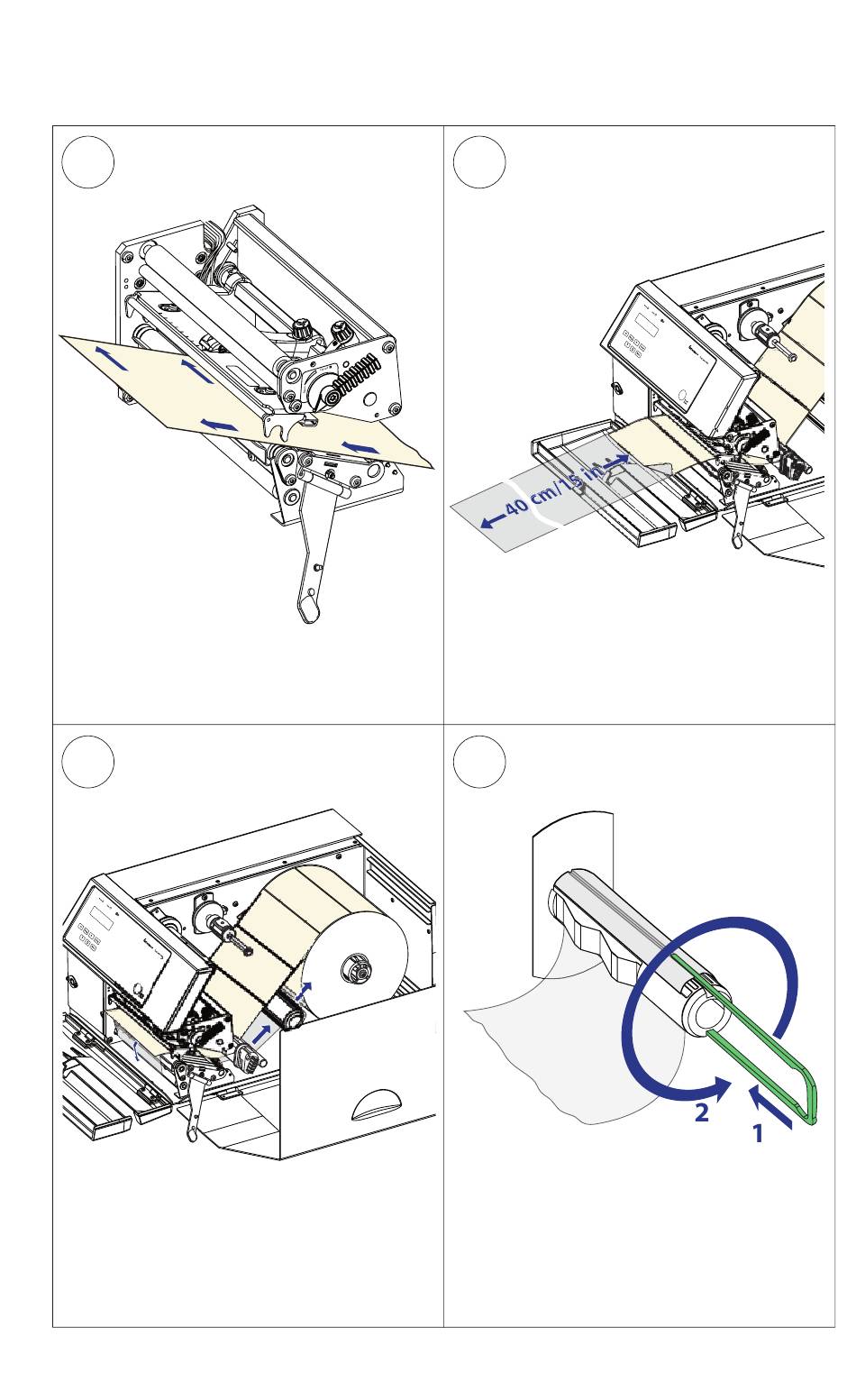

Route the media through the print unit
and push it inwards as far as it will go.
10
Route the liner around the tear bar and
back under the print unit.
EasyCoder PX6i User's Guide (IPL version)
Chapter 4 — Media Load
9
Pull out approximately 40 cm (15 in) of
labels and remove the labels from the
liner.
11
Secure the liner to the takeup hub with
the clip (1) and rotate the hub (2) so the
media becomes tight.
