OWNER'S MANUAL
WINDOW/WALL TYPE
ROOM AIR CONDITIONER
Room Air Conditioner with R-410A:
Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com
MULTI-STEP SPEED ELECTRONIC CONTROL
RADS-151G
RADS-183G
RADS-253G
-
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
Advertisement
Table of Contents
Related Manuals for Heat Controller RADS-151G
Summary of Contents for Heat Controller RADS-151G
-
Page 1: Room Air Conditioner

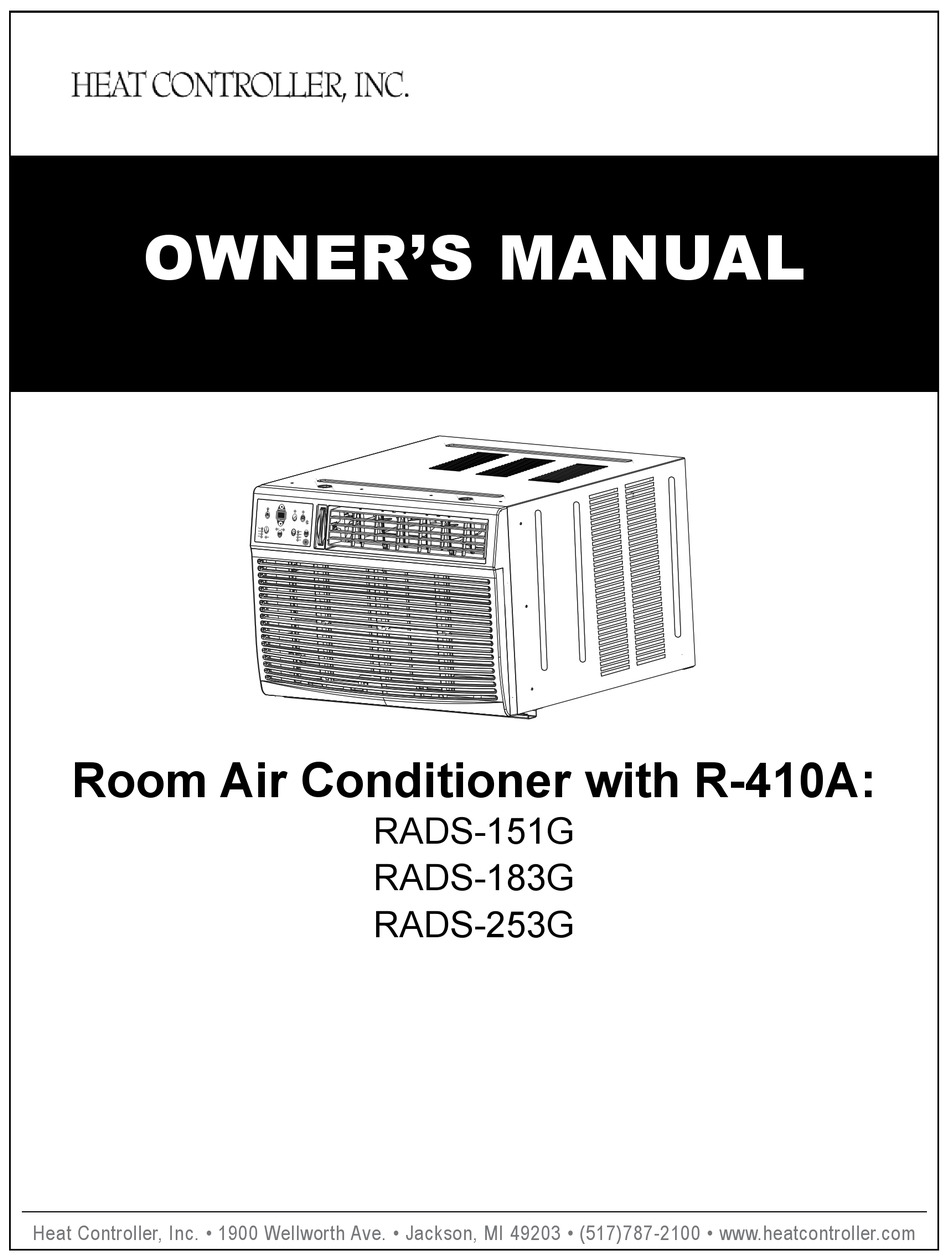

Room Air Conditioner with R-410A: MULTI-STEP SPEED ELECTRONIC CONTROL RADS-151G RADS-183G RADS-253G Before using your air conditioner, please read this manual carefully and keep it for future reference. Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com... -
Page 2: Table Of Contents
Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. NORMAL SOUNDS ................5 4. AIR CONDITIONER FEATURES ............5 5. INSTALLATION INSTRUCTIONS............10 6. CARE AND CLEANING ..............14 7. TROUBLESHOOTING TIPS...............15 ead This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. -
Page 3: Safety Precautions
Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual Safety Precautions To prevent injury to the user and propert damage, the following instructions must be To prevent injury to the user or other people and property damage, the following instructions followed. - Page 4 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. ! CAUTION Do not allow water to Ventilate the room well When the air filter is to be When the air filter is to be Do not clean the air...
-
Page 5: Important Safety Instructions
Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS For your safety For your safety WARNING WARNING NOTE NOTE The power supply cord with For some models, the power Do not store or use gasoline or other flammable vapors and liquids in... -
Page 6: Normal Sounds
Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. NORMAL SOUNDS NORMAL SOUNDS NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter High Pitched Chatter Vibration High Pitched Chatter during the cooling cycle. High efficiency compressors... - Page 7 Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) NOTE: The following instructions represent the Unit Controls, the same instructions can be used NOTE: The following instructions represent the Unit Controls, the same instructions can be used for the Remote Control.
- Page 8 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) NOTE: TO SELECT THE NOTE: To choose operating mode, press the Mode button. TO SELECT THE NOTE: TO SELECT THE OPERATING MODE: To choose operating mode, press the Mode button.
- Page 9 The fan then cycles Cool Mode on for 2 minutes at 10 minute intervals until the room Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual Timer temperature is above the set temperature, at which time the compressor turns back on and cooling stars.
- Page 10 Check Filter button and the light will go off. Auto High Owner’s Manual On/off Room Air Conditioner with R-410A Heat Controller, Inc. Timer AIR CONDITIONER FEATURES (CONTINUED) AIR CONDITIONER FEATURES(CONTINUED) FOLLOW ME FEATURE: NOTE: FOLLOW ME FEATURE:...
- Page 11 TEMP/TIMER On/Off Follow Me mode has ended. Saver The actual temperature can be displayed at the unit Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual by pressing the Fan Only mode. When in the Cool Auto mode, the unit display indicates the set temperature.
-
Page 12: Installation Instructions
Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. INSTALLATION INSTRUCTIONS Please read ALL instructions before installing. Two people are recommended to install this Please read ALL instructions before installing. Two people are recommend to install this product. product. If a new electrical outlet is required, have the outlet installed by a qualified electrician If a new electrical outlet is required, have the outlet installed by a qualified electrician before before installing unit. - Page 13 Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual Tools Required A large flat blade screwdriver Tape measure Adjustable wrench or pliers Pencil Level Socket wrenches Phillips Screwdriver Hardware (Packed with the unit) 7/16 inch Locking 2 ea. screw and Flat...
- Page 14 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. Window Mounting 9. Your unit may come with internal packaging. 9. Your unit may come with internal packaging. Remove Chassis This packaging must be removed prior to re- This packaging must be removed prior to 1.
- Page 15 Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual 3. Shift cabinet left or right as needed to line up center 3. Shift cabinet left or right as needed to line up of cabinet on center line marked on sill.
- Page 16 Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. 3. Install support brackets(with sill angle 2. Attach right angle safety lock as shown. brackets attached) to correct hole in bottom of cabinet as shown. 4. Tighten all 6 bolts securely.
-
Page 17: Care And Cleaning
Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual CARE AND CLEANING CARE AND CLEANING WARNING! CAUTION CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit shock before cleaning to prevent chock or fire hazards. -
Page 18: Troubleshooting Tips
Owner’s Manual Room Air Conditioner with R-410A Heat Controller, Inc. TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. - Page 19 Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual Problem Solution Unit removing large quantity of moisture from humid room. This is normal during Water dripping excessively humid days. OUTSIDE when unit is cooling. Remote control not located within range. Place remote control within 20 feet & 180 , Remote Sensing radius of the front of the unit.
- Page 20 11/2009 04/2009...
