Icom IC-M803 Service Manual page 7

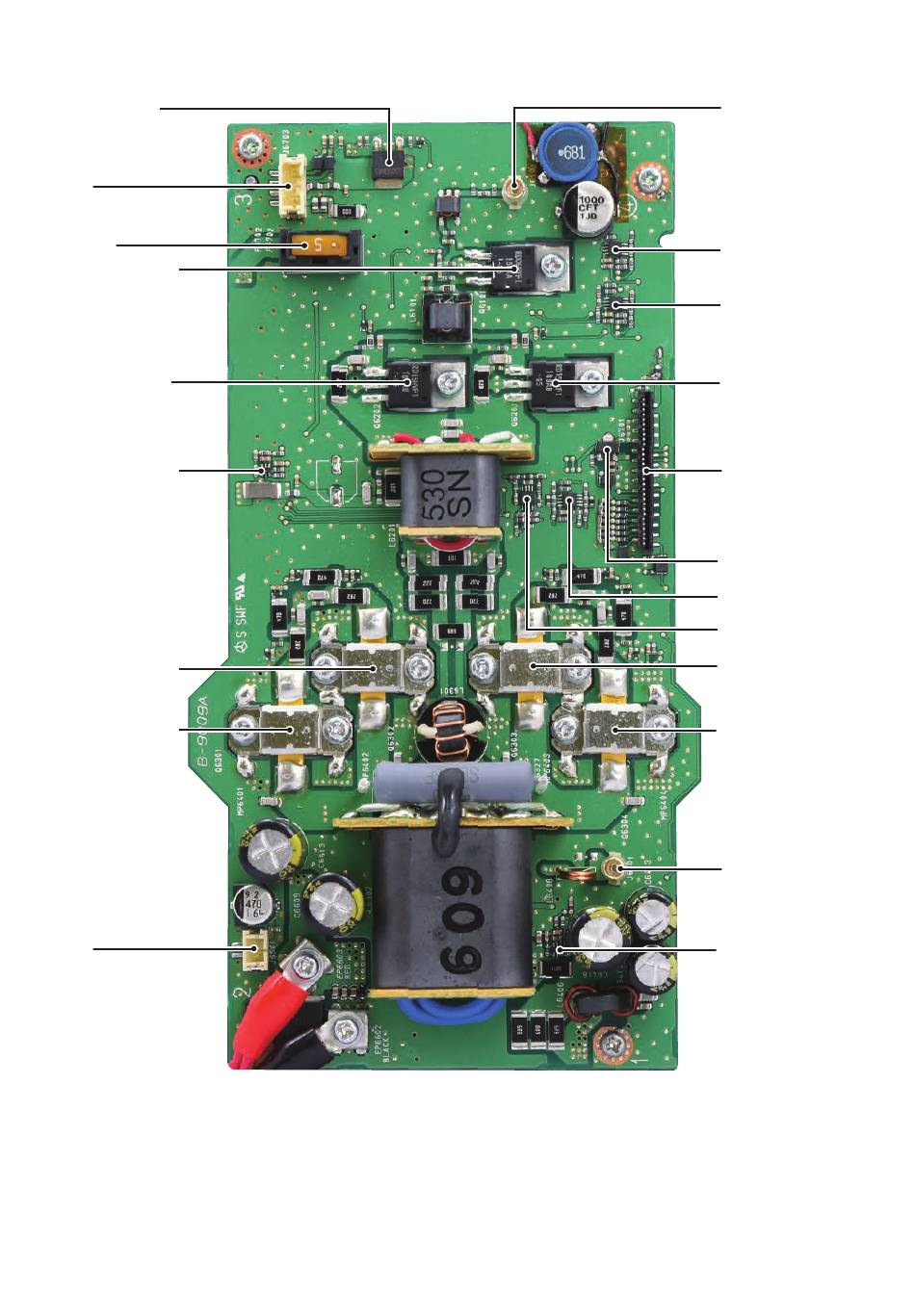

• PA UNIT
POWER SUPPLY
LINE SWITCH
(Q6702)
J6703
5 A FUSE
(F2)
BUFFER
(Q6101)
DRIVE AMPLIFIER
(Q6202)
CURRENT SENSOR
(IC6503)
POWER AMPLIFIER
(Q6302)
POWER AMPLIFIER
(Q6301)
J6501
2-3
J6101
BUFFER
(IC6101)
BUFFER
(IC6201)
DRIVE AMPLIFIER
(Q6201)
J6701
COOLING FAN DRIVER
(Q6501)
BUFFER
(IC6401)
BUFFER
(IC6402)
POWER AMPLIFIER
(Q6303)
POWER AMPLIFIER
(Q6304)
J6401
CURRENT SENSOR
(IC6502)
