Icom IC-M803 Service Manual page 47

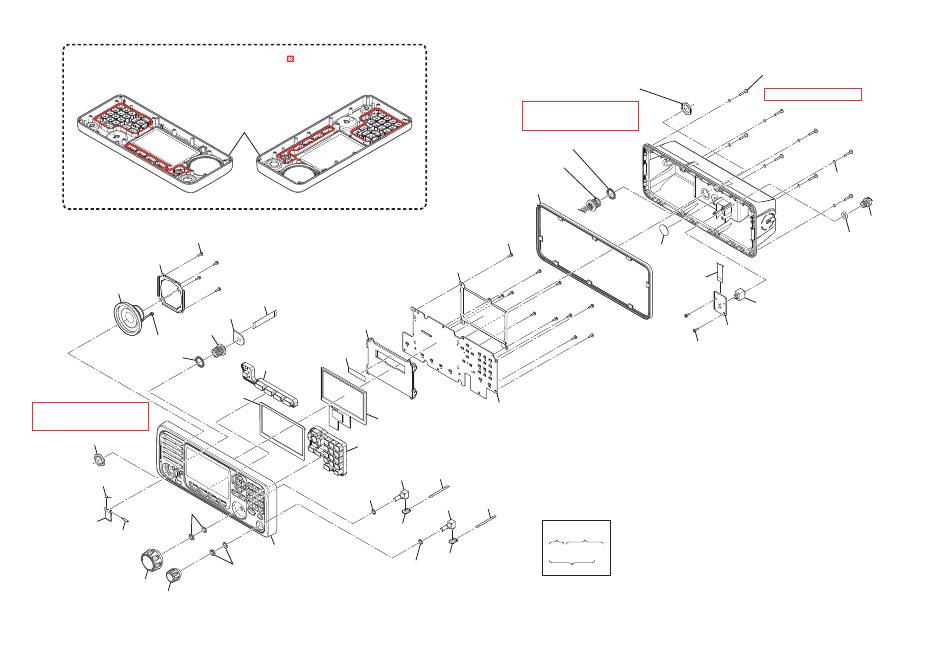

Apply the grease to the following area (
Used grease: G501 (80G) SHINETSU (8950002750)
MP8019 (FRONT) × 4
(8810008661)
MP8013 (FRONT)
(8930092350)
SP8001 (FRONT)
(2510002060)
J8561 (MIC)
(6510030290)
W8006 (FRONT)
(8920003260)
Washer
(Comes with J8561 (MIC))
MP8010 (FRONT)
(8930092250)
Tighten with:
"ICOM Driver (V)" (8960000430)
Torque: 1.0 N·m (±0.15 N·m)
Nut
(Comes with J8561 (MIC))
MP8016 (FRONT)
(8930089100)
Nut and washer
(Comes with S8501 (DIAL))
MP8014 (FRONT)
(8310084000)
MP8015 (FRONT)
(8930088990)
MP8004 (FRONT)
(8610015670)
MP8007 (FRONT)
(8610015630)
) of the front panel
MP8001 (FRONT)
W8004 (FRONT)
(8900018000)
MIC UNIT
MP8003 (FRONT)
(8930092130)
MP8030 (FRONT)
(8930057950)
MP8008 (FRONT)
(8930091880)
DS9001 (LOGIC)
(5030004580)
MP8029 (FRONT)
(8930092550)
S8501 (DIAL)
(2250000930)
MP8017 (FRONT)
(8930069020)
DIAL UNIT
MP8001 (FRONT)
(8210034770)
Nut and washer MP8017 (FRONT)
(8930069020)
(Comes with S8501 (VOL))
(Comes with W8007 (FRONT))
Tighten with:
"ICOM Driver (V)" (8960000430)
Torque: 1.0 N·m (±0.15 N·m)
Washer
(Comes with W8007 (FRONT))
W8007 (FRONT)
(8920001660)
MP8009 (FRONT)
(8930091890)
MP8018 (FRONT) × 11
(8810008661)
MP8012 (FRONT)
(8510021570)
LOGIC UNIT
W8002 (FRONT)
(8910000070)
W8003 (FRONT)
S8501 (VOL)
(8910000070)
(2250000930)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
VOL UNIT (1234567890)
Parts No.
7-3
MP8024 (FRONT) × 8
(8820001180)
Nut
Torque: 0.7 N·m (±0.1 N·m)
MP8022 (FRONT)
(8930058780)
MP8028 (FRONT)
(8510021640)
W8005 (FRONT)
(8900015120)
J8602 (JACK)
(6450001630)
JACK UNIT
MP8031 (FRONT) × 2
(8810008661)
MP8025 (FRONT) × 8
(8930053730)
MP8026 (FRONT)
(8930082360)
MP8027 (FRONT)
(8930082490)
