Icom IC-M803 Service Manual page 48

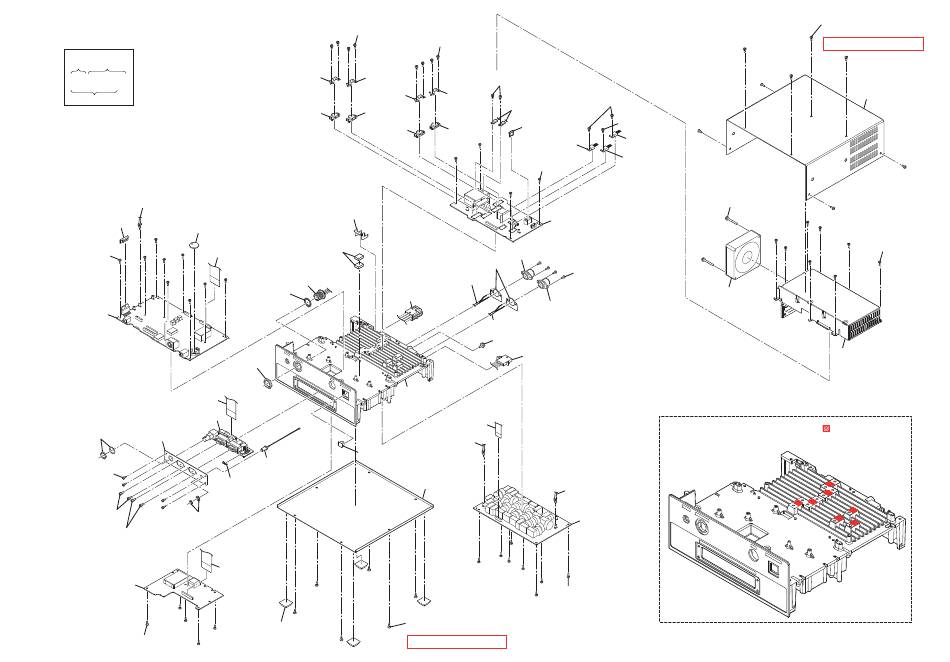

Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
W3020 (CHASSIS)
(8970024232)
MP3029 (CHASSIS)
BT5081 (MAIN)
(8930102460)
(3020000110)
MP3012 (CHASSIS) × 9
(8810008661)
MAIN UNIT
W3022 (CHASSIS))
W3011 (CHASSIS)
(8900009031)
CONNECT UNIT
Nut and washer
MP3007 (CHASSIS)
(Comes with J7751 (CONNECT))
(8930102230)
MP3014 (CHASSIS) × 4
(8810009991)
Stud bolts
Nut and washer
(Comes with J7721 (CONNECT))
(Comes with W3010 (CHASSIS))
Stud bolts
(Comes with J7711 (CONNECT))
DC-DC UNIT
MP3012 (CHASSIS) × 5
(8810008661)
MP3025 (CHASSIS) × 4
(8810007231)
MP6404 (PA) MP6403 (PA)
(8860001640) (8860001640)
MP6402 (PA)
(8860001640)
Q6303 (PA)
Q6304 (PA)
(1560002670)
(1560002670)
Q6302 (PA)
(1560002670)
MP3016 (CHASSIS)
(8930058100)
W3006 (CHASSIS)
MP3030 (CHASSIS) × 2
(8900009031)
(8930070510)
W3022 (CHASSIS)
(8920003300)
Washer
(Comes with
W3022 (CHASSIS))
Nut
(Comes with
EP3001 (CHASSIS)
W3010 (CHASSIS) (6950000710)
(8900018134)
MP7701 (CONNECT)
(8930077910)
W3012 (CHASSIS)
(8900009031)
MP3006 (CHASSIS) × 4
(8930057980)
MP3025 (CHASSIS) × 4
(8810007231)
MP3028 (CHASSIS)
(8810007231)
MP6401 (PA)
(8860001640)
W3001 (CHASSIS)
(8900011050)
F6702 (PA)
Q6301 (PA)
(5210001430)
(1560002670)
Q6201 (PA)
(1560002640)
MP3012 (CHASSIS) × 4
(8810008661)
PA UNIT
J3003 (CHASSIS)
(6510028411)
MP3005 (CHASSIS)
(8930057191)
W3008 (CHASSIS)
(8970024752)
W3001 (CHASSIS)
(8900011050)
J3001 (CHASSIS)
(6510028411)
W3003 (CHASSIS)
(8970024742)
MP3009 (CHASSIS)
(8820000530)
W3002 (CHASSIS)
(8920003240)
MP3001 (CHASSIS)
(8010018824)
W3007 (CHASSIS)
(8900015920)
W3023 (CHASSIS)
(8970024083)
MP3003 (CHASSIS)
(8110011720)
W3025 (CHASSIS)
MP3012 (CHASSIS) × 8
(8810008661)
MP3013 (CHASSIS) × 6
(8810005771)
Torque: 0.7 N·m (±0.1 N·m)
7-4
MP3026 (CHASSIS)
(8810007231)
MP3027 (CHASSIS)
(8810007231)
Q6202 (PA)
(1560002640)
Q6101 (PA)
(1560002630)
MP3011 (CHASSIS) × 2
(8810010670)
MP3012 (CHASSIS) × 4
(8810008661)
MF3001 (CHASSIS)
(2710001060)
Apply the compound to the following area (
Used compound: Thermal Compound (G747) SHINETSU (8950005610)
(8970024442)
FILTER UNIT
MP3012 (CHASSIS) × 8
(8810008661)
Torque: 0.7 N·m (±0.1 N·m)
MP3002 (CHASSIS)
(8110007703)
MP3012 (CHASSIS) × 8
(8810008661)
MP3004 (CHASSIS)
(8110011730)
) of the chassis
