Mazda 6 2006-2008
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted charcoal black

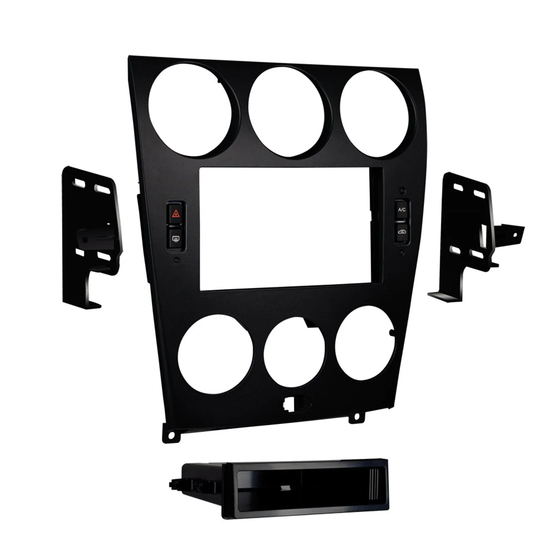

• A) Radio/climate control panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws
• E) (6) Panel clips • F) (2) #8 x 1" Phillips screws • G) Harness • H) Manual climate harness
A
B
E
Wiring Harness: • Included with kit
Antenna Adapter: • Not required
METRA. The World's best kits.
Installation instructions for 99-7524B
99-7524B
C
(sold separately)
™
D
F
G
H
metraonline.com
Table of Contents
Dash Disassembly .............................................. 2-4
Kit Preparation
- Electronic climate control ..................................... 5
- Manual climate control ......................................... 6
- Felt tape application ............................................. 7
- ISO DIN radio provision with pocket ...................... 8
- ISO DDIN radio provision ...................................... 8
Wiring Installation ..................................................9
Installing the 99-7524B ........................................10
Display customization ..........................................11
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
© COPYRIGHT 2015 METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-7524B
Summary of Contents for Metra Electronics 99-7524B
-
Page 1: Table Of Contents
It would be best to remove the key from the ignition Wiring Harness: • Included with kit and then wait a few seconds before removing the factory radio. Antenna Adapter: • Not required ™ METRA. The World’s best kits. metraonline.com © COPYRIGHT 2015 METRA ELECTRONICS CORPORATION... -
Page 2: Dash Disassembly
99-7524B Dash Disassembly Electronic climate control 5. Unsnap and remove radio/climate control panel including climate 1. Unscrew the shift knob counter control vents at the top. (Figure E) clockwise to remove. (Figure A) 6. Remove (4) Phillips screws 2. Unclip and remove the cup holder/... -
Page 3: Manual Climate Control
99-7524B Dash Disassembly Manual climate control 1. Unscrew the shift knob counter 5. Open glove box, squeeze sides clockwise to remove. (Figure A) together and let open fully then remove (1) 10mm bolt from the 2. Unclip and remove the cup holder/ side of the radio bracket. - Page 4 Note: Notice how they are positioned in the backlight dispersion bar as they will be placed in the 99-7524B the same way. (Figure H) 9. Remove (4) Phillips screws (Figure H) (Figure J) securing backlight dispersion bar and knob trim bezels.
- Page 5 Note: The light bulb boards will not be used with into the 99-7524B housing. (Figure A) 4. Unclip and remove the small oval cover plate at the auto climate control vehicles disregard these bulbs.
- Page 6 (Figure B) (Figure D) 4. Unclip and remove the small oval cover plate at the bottom center of the factory radio and insert into the 99-7524B radio housing. (Figure E) 5. Attach (6) panel clips supplied to the radio housing. INSTALLED...
-
Page 7: Felt Tape Application
Note: Due to differences in factory tolerances you may need to apply the provided felt tape to the edge of the 99-7524B radio housing to relieve backlight bleed through. 1. Looking at edge of radio housing apply felt tape to inner edge (toward back of kit). -
Page 8: Kit Assembly
99-7524B Kit Assembly ISO DIN radio provision with pocket ISO DDIN radio provision 1. Mount the pocket to the radio 1. Attach the radio brackets to the brackets with (4) #8 x 3/8” Phillips radio using the screws supplied screws supplied. (Figure A) with the radio. -
Page 9: Wiring Installation
99-7524B Wiring Installation Connections to be made to the aftermarket radio: • Connect the Gray wire to the right front positive speaker output. • Connect the Black wire to the ground wire. • Connect the Gray/Black wire to the right front negative speaker output. -
Page 10: Installing The 99-7524B
4. Mount the completed assembly into the dash, and then reassemble the dash in *Location 2 reverse order of disassembly, using the 99-7524B radio/climate panel. Note: There are no existing holes for mounting the radio. New holes will need Location 3 Location 1 to be made using (2) #8 x 1”... -
Page 11: Display Customization
99-7524B Display Customization 1. Press and hold the Clock button in the factory display until “Set Text” is displayed then release button. Settings will begin with the first character location. Use the Set button to select the desired character then press the AMB button to select the next character location. - Page 12 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians ™ METRA. The World’s best kits. metraonline.com © COPYRIGHT 2015 METRA ELECTRONICS CORPORATION...
