G3 Steadycam Installation Instructions
G3云台手持件安装说明书
Applicable to the firmware V1.25 and above version 适用于V1.25及以上版本固件
产品安装图 Product Installation Diagram

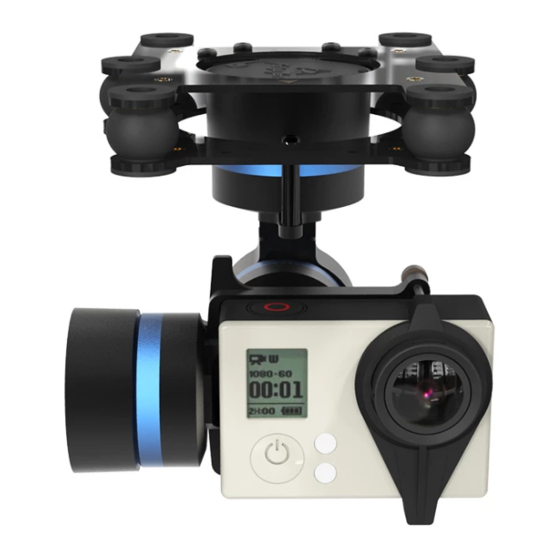

Gopro3
扭开电源盖，把电池放入电池仓中。
Open power switch cap, Put batteries in holder.
电源开关
Power Switch
接口和按键
Interface and buttons
+
Up
-
Down
云台4芯连接线
4 pin gimbal connection
wire
电机控制与电源接口
Motor control and power
interface
请先安装好Gopro3相机后，再通电。
Attention!
Please install the Gopro3 cameral
firstly ,then supply power.
电池×3
Battery×3
M2×6
M2 ×22滚花手拧螺钉
×22
M2 Knurled thumb
screw
手持件可120°调节
Steadycam can be adjusted
to 120°
Down
UP
铰链座
Hinge Mount
M5×16滚花手拧螺钉
Knurled thumb screw
120°
铰链座
Hinge Mount
M5×16滚花手拧螺钉
×16
M5 Knurled thumb
screw
M2×6沉头螺钉
M2×6 Sunk Screw
×22滚花手拧螺钉
M2
×22
M2 Knurled thumb
screw
