Getting Started Guide

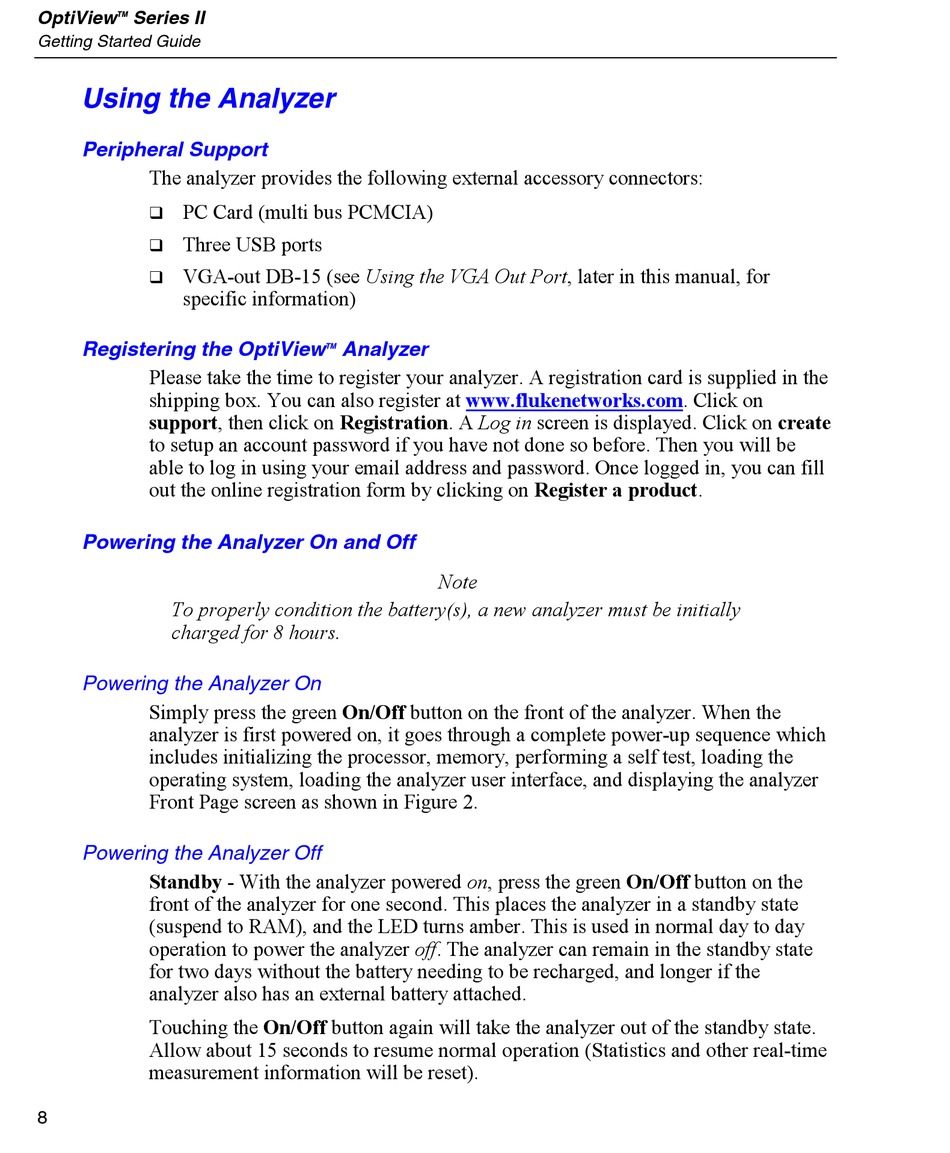

Using the Analyzer
Peripheral Support
The analyzer provides the following external accessory connectors:
PC Card (multi bus PCMCIA)
!
Three USB ports
!
VGA-out DB-15 (see Using the VGA Out Port, later in this manual, for
!
specific information)
Registering the OptiView
Please take the time to register your analyzer. A registration card is supplied in the
shipping box. You can also register at www.flukenetworks.com. Click on
support, then click on Registration. A Log in screen is displayed. Click on create
to setup an account password if you have not done so before. Then you will be
able to log in using your email address and password. Once logged in, you can fill
out the online registration form by clicking on Register a product.
Powering the Analyzer On and Off
To properly condition the battery(s), a new analyzer must be initially
charged for 8 hours.
Powering the Analyzer On
Simply press the green On/Off button on the front of the analyzer. When the
analyzer is first powered on, it goes through a complete power-up sequence which
includes initializing the processor, memory, performing a self test, loading the
operating system, loading the analyzer user interface, and displaying the analyzer
Front Page screen as shown in Figure 2.
Powering the Analyzer Off
Standby - With the analyzer powered on, press the green On/Off button on the
front of the analyzer for one second. This places the analyzer in a standby state
(suspend to RAM), and the LED turns amber. This is used in normal day to day
operation to power the analyzer off. The analyzer can remain in the standby state
for two days without the battery needing to be recharged, and longer if the
analyzer also has an external battery attached.
Touching the On/Off button again will take the analyzer out of the standby state.
Allow about 15 seconds to resume normal operation (Statistics and other real-time
measurement information will be reset).
