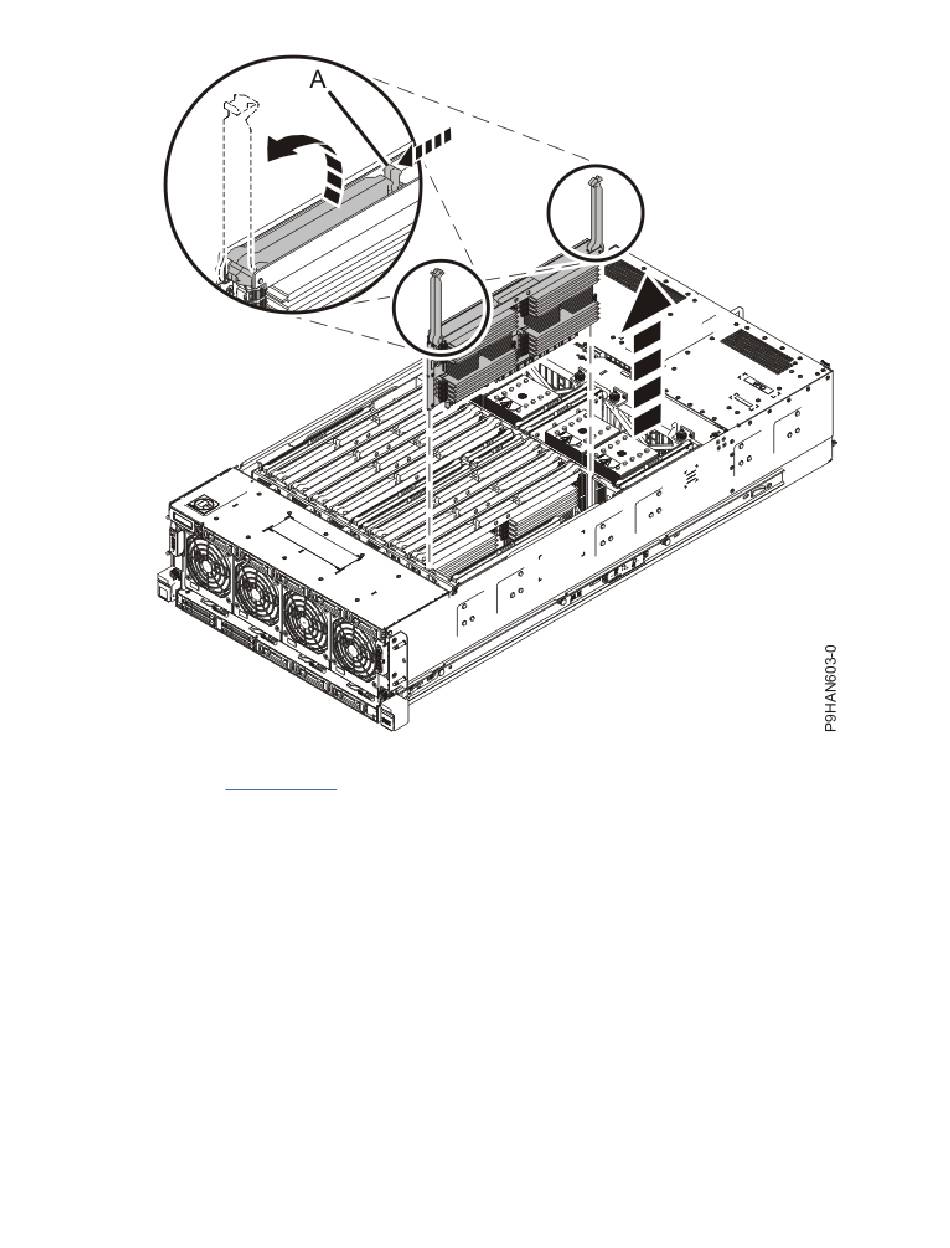

Figure 10. Removing a memory riser
4. Repeat step "3" on page 11 for each installed memory riser.
5. If the removed part is used again, place the part on an electrostatic discharge (ESD) mat.

Installing the cable-management bracket

Install the cable management bracket to provide organization for the cables and cords connecting to the
system.
About this task
To install the cable management bracket, complete the following steps:
Procedure
1. Two cable management bars are included with the system. One bar is wider than the other. The wider
bar is used in racks that have a shorter depth (like the 7014-T42 rack). The shorter bar is used in racks
that have a longer depth (like the 7965-S42 rack). Choose the cable management bar that matches
the depth of the rack that you have.
2. Each cable management bracket takes up three EIA units. Three screws are used to attach each side
of the cable management bracket to the rack flange. Each screw goes in the middle hole of each of the
three EIA rack units. The screws are installed on the inside of the rack flange. Using a sticker or pen,
