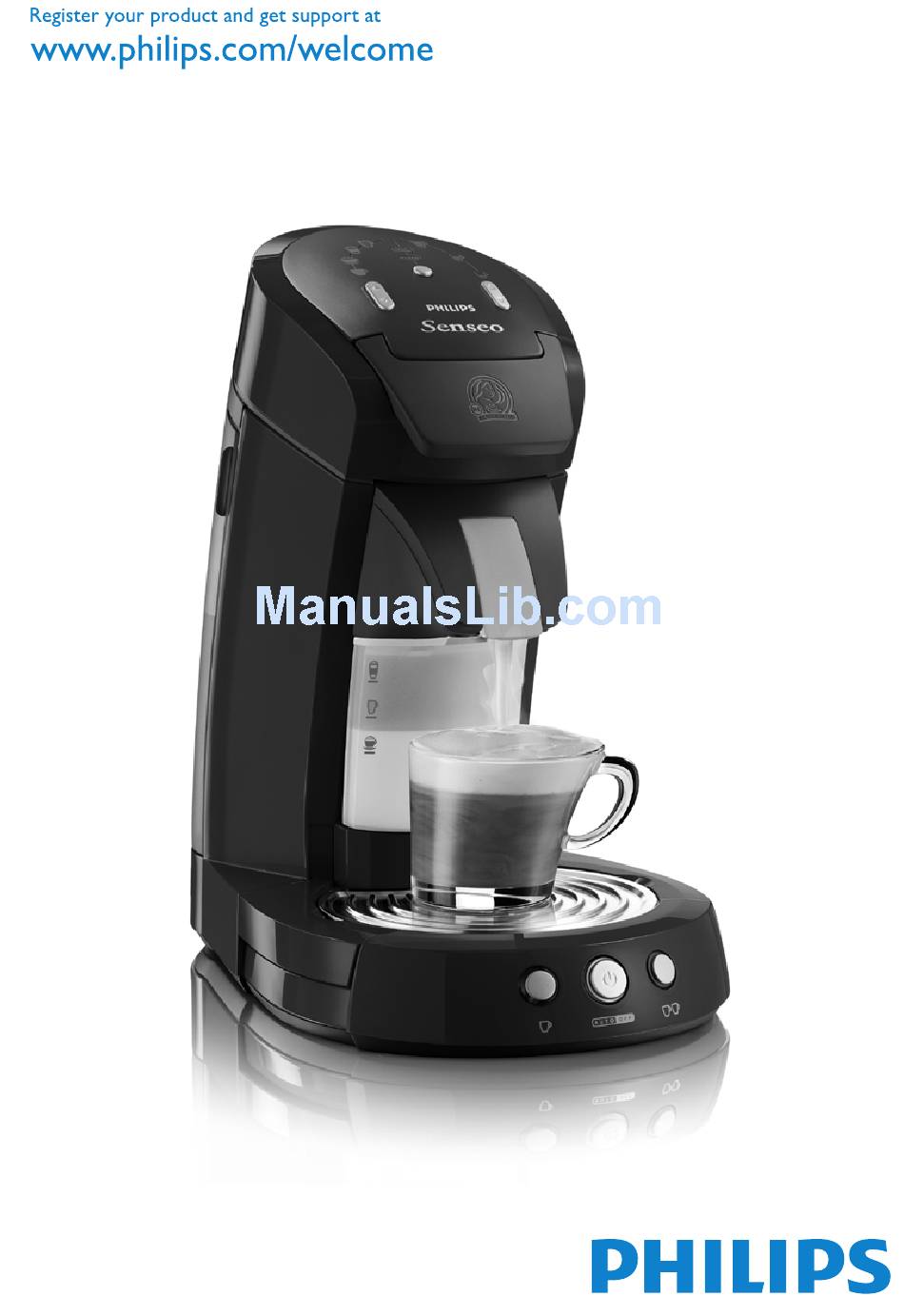

- Page 1 HD7852, HD7850...
- Page 5 EnglisH 6...
- Page 6 EnglisH introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome. Make your coffee moments truly special with SENSEO system combines the easy-to-use Philips SENSEO the specially developed Douwe Egberts SENSEO full, smooth coffee with a delicious foam layer.
- Page 7 Do not use the machine if the plug, the mains cord or the machine itself is damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
-
Page 8: Electromagnetic Fields (Emf)
EnglisH Caution Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid. Never put normal ground coffee or use torn pods in the SENSEO machine, as this causes it to become blocked. - Page 9 Fill the water reservoir with cold water up to the MAX indication and put it back onto the machine. Make sure the milk container is in place. Move the lid lever upwards to release the lid. Open the lid. Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine without pod(s).
- Page 10 Clean the water reservoir thoroughly in hot water, if necessary with some washing-up liquid. Now your Philips SENSEO coffee machine is ready for use. ®...
-
Page 11: Using The Machine
Using the machine Preparing for use Fill the water reservoir with cold water up to the MAX indication and put it back onto the machine. Never pour milk, coffee, hot water or carbonated water into the water reservoir. q MIN: minimum amount of water required to brew 1 cup of SENSEO black coffee, cappuccino, latte macchiato or caffè... -
Page 12: Filling The Milk Container
EnglisH Note: Make sure the coffee in the pod(s) is evenly distributed and press the pod(s) lightly into the pod holder. Note: Never put normal ground coffee or use torn pods in the SENSEO machine, as this causes it to become blocked. Place 1 SENSEO coffee pod in the 1-cup pod holder q. - Page 13 Fill the milk container with cold milk straight from the refrigerator (5-8°C) up to the level required for the coffee variety. ¶= amount of milk required to brew one cup of cappuccino. % = amount of milk required to brew one cup of caffè latte. õ/ ¶¶= amount of milk required to brew one cup of latte macchiato or two cups of cappuccino.
- Page 14 EnglisH Place 1 SENSEO coffee pad in the 1-cup pod holder. ® If you want to brew black coffee, you can also make two cups. To brew 2 cups of black coffee, place 2 SENSEO Note: You cannot make two cups of cappuccino, latte macchiato or caffè latte at the same time.
-
Page 15: Cleaning The Milk Container Unit
Press the button indicating the number of cups of SENSEO you want to brew. Press the 1-cup button q for one cup. Press the 2-cup button qq for two cups. Note: If there is not enough water for brewing 2 cups of SENSEO coffee or if you have selected a coffee variety with milk, the light ring around the 2-cup button is off and this button cannot be operated. - Page 16 EnglisH Flushing after every use Move the milk container lever upwards and remove the milk container unit. Push the milk container lid release lever and remove the milk container lid from the milk container. Pour out any milk that is left in the milk container and rinse the milk container briefly under the tap.
- Page 17 Cleaning after the last use of the day Note: You can only pull the steam inlet out of the milk container lid when the milk container lid cover is open. Note: Make sure you push the milk tube far enough onto the connector so that the holes in the connector are covered.
-
Page 18: Cleaning The Machine
EnglisH Place the milk container unit into the machine and push down the milk container lever. Note: Make sure the parts of the milk container lid are dry before you reassemble the lid. Cleaning the machine Always unplug the machine before you clean it. Clean the outside of the machine with a damp cloth. -
Page 19: Flushing The Coffee Machine
Clean the pod holders in hot water, if necessary with some washing- up liquid, or in the dishwasher. Check if the sieve in the centre of the pod holder is clogged. If this is the case, rinse the pod holder under a running tap to unclog the sieve. Use a washing-up brush to clean the sieve, if necessary. - Page 20 EnglisH Fill the water reservoir with cold water up to the MAX indication and put it back onto the machine. Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine without pod(s). Close the lid and lock the lid lever. Note: Make sure the lid lever is properly locked by pushing it down until it snaps home with a click.
-
Page 21: Descaling Procedure
When to descale Note: Descale the machine when the Calc-Clean indicator goes on. Why to descale Scale builds up inside the appliance during use. It is essential to descale the SENSEO coffee machine at least every 3 months. Your reasons to descale: ®... - Page 22 EnglisH Press the on/off button 3. The machine is ready for use when the indicator light is on continuously. Place the 1-cup pod holder q in the coffee machine. Close the lid and make sure it is properly locked. Note: Always put a used coffee pod in the pod holder when you descale the machine.
-
Page 23: Troubleshooting
If there is no Consumer Care Centre in your country, go to your local Philips dealer. The purchase of the Philips SENSEO any of the rights of Sara Lee/Douwe Egberts or Philips under any of their patents nor does it confer upon the purchaser a licence under these patents. - Page 24 We advise you to take the machine to your dealer or a Philips service centre. When I brew 2 cups of 1.
- Page 25 ® ® machine again to check if the fuse cuts off the power supply again. ® machine to your dealer or to a Philips service ® Caffè Latte has a maximum power consumption of ® EnglisH coffee machine has been ®...
- Page 26 3. The water reservoir is damaged/broken. The water reservoir needs to be replaced. Go to your dealer or a Philips service centre to obtain a new water reservoir. 4. It is normal that some water drips from the bottom of the water reservoir when you remove it from the machine or place it in the machine.
- Page 27 5. The valve of the water reservoir is stuck. Check if the valve is stuck when you fill the reservoir with water. If de valve does not move, take the water reservoir to your dealer or a Philips service centre. 6. You may be using the SENSEO below 10 degrees Celsius.
- Page 28 After you have unplugged the other appliances, plug in the SENSEO power supply again, we advise you to take the SENSEO dealer or to a Philips service centre. 2. The SENSEO cycle due to a technical defect. In that case the SENSEO be examined to determine the cause of the problem and the best solution.
- Page 29 If you cannot open the lid or if the problem continues to occur, take the machine to your dealer or to a Philips service centre. Make sure you do not move the SENSEO placing it outdoors or in a cool or cold environment does not accelerate the unlocking of the lid.
- Page 30 EnglisH Problem Solution The SENSEO machine Steam pressure is required for a perfect cup of coffee with frothed milk. It is ® is quite loud when I therefore normal that you hear a hissing sound. The machine is louder during brew a coffee variety flushing because more steam pressure is necessary to flush the milk container with milk or flush the...
- Page 31 2. It is normal for there to be some milk left after brewing a coffee variety with milk. This extra milk is required to ensure a good foam quality. I lost a part of the We advise you to take the machine to your dealer or a Philips service centre. SENSEO machine ®...
- Page 32 2-cup button is off, check if the 2-cup button works. If the machine starts to brew coffee when you press the 2-cup button, the light ring is broken. Take the machine to your dealer or a Philips service centre to have the light ring replaced.
- Page 34 .00.015....
