LED State
PWR On green
Off
LINK On green
Off
TX Flashing green
Off
RX Flashing green
Off
COL Flashing green
Off
SYNC On green
Flashing green
Off
TX Flashing green
Off
RX Flashing green
Off
MAR On green
Off
Megabit Modem 410F and 420F User Manual
PWR LINK
Description
Modem has power.
Modem does not have power.
LAN
A PC, hub, or other network device is connected to the modem
10/100BASE-T interface.
No device is connected to the modem 10/100BASE-T interface.
Modem is transmitting data to devices on the LAN.
Modem is not transmitting data to the LAN.
Modem is receiving data from devices on the LAN.
Modem is not receiving data from the LAN.
Collision detected on the 10/100BASE-T link.
No collision detected.
ADSL
ADSL transceiver is synchronized and in normal operation mode.
ADSL transceiver is in a start-up sequence.
ADSL modem transceiver is not detecting a transceiver at the far end.
Modem is transmitting data to the other modem.
Modem is not transmitting data to the other modem.
Modem is receiving data from the other modem.
Modem is not receiving data from the other modem.
ADSL margin is at or above the configured Margin Threshold (see
ADSL margin is below the configured Margin Threshold.

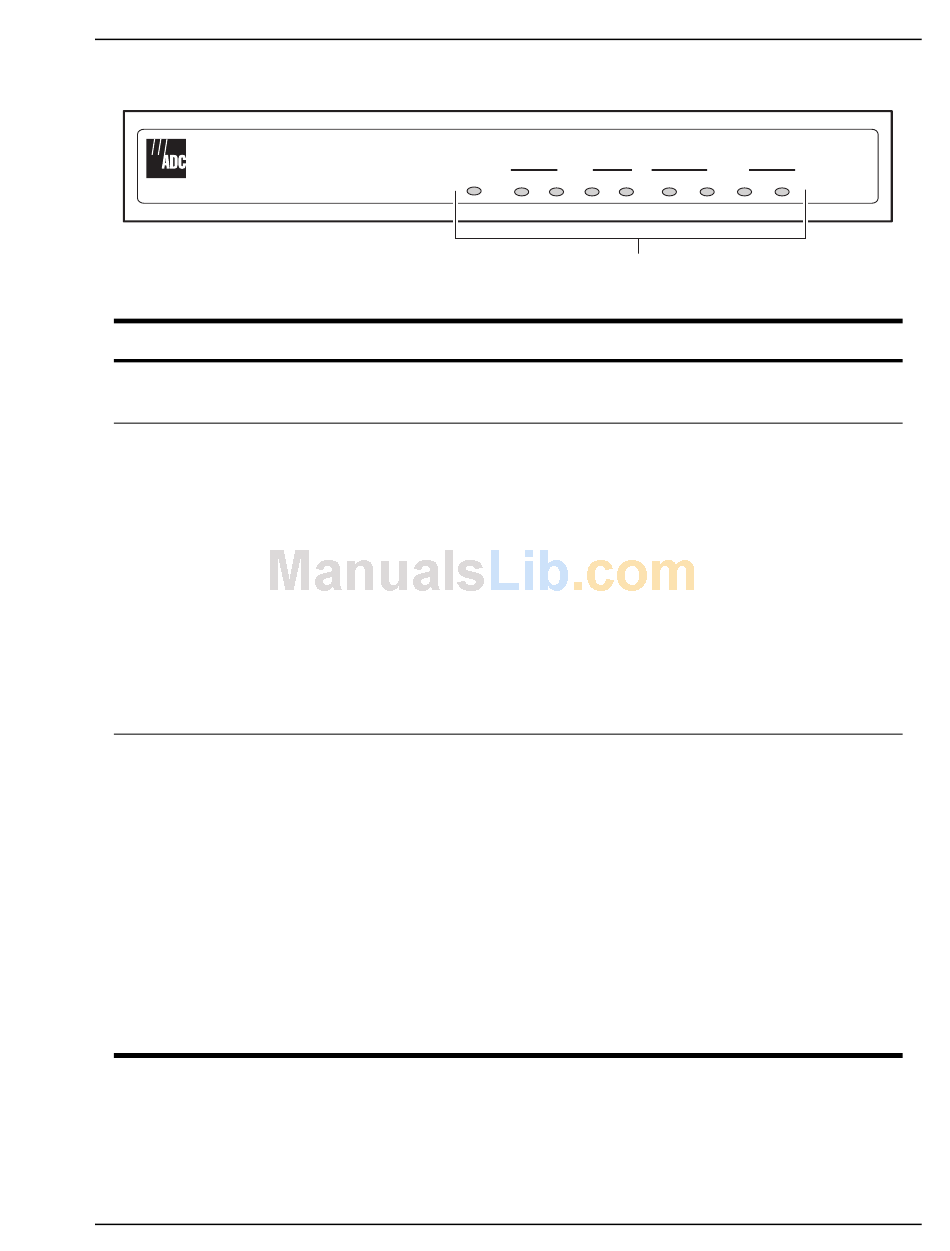

Chapter 3: Installing the Megabit Modem 410F and 420F
MEGABIT MODEM 410F
LAN
SYNC
TX RX COL TX
Status LEDs
ADSL
RX MAR
page 53).
